Sport RothBros: a high-spec aluminium-profile chassis that brings cable routing and motion readiness below the flagship tier

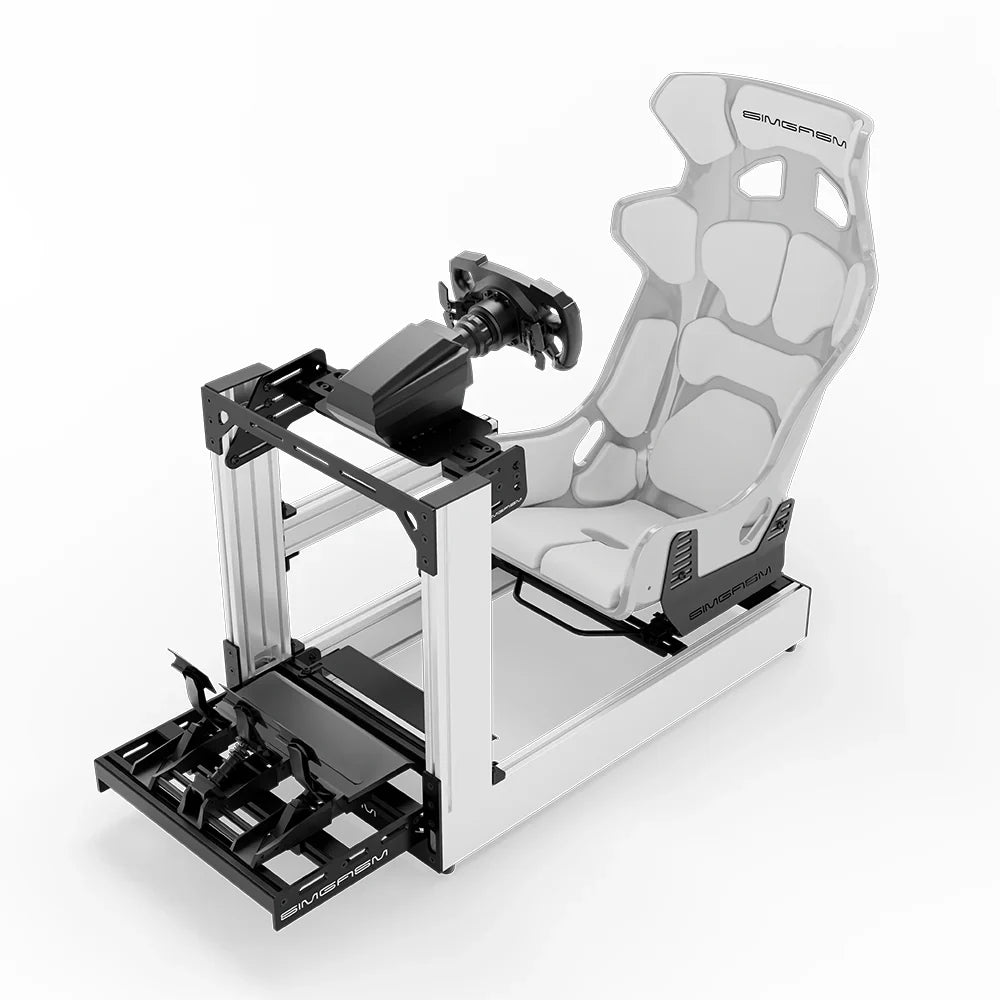

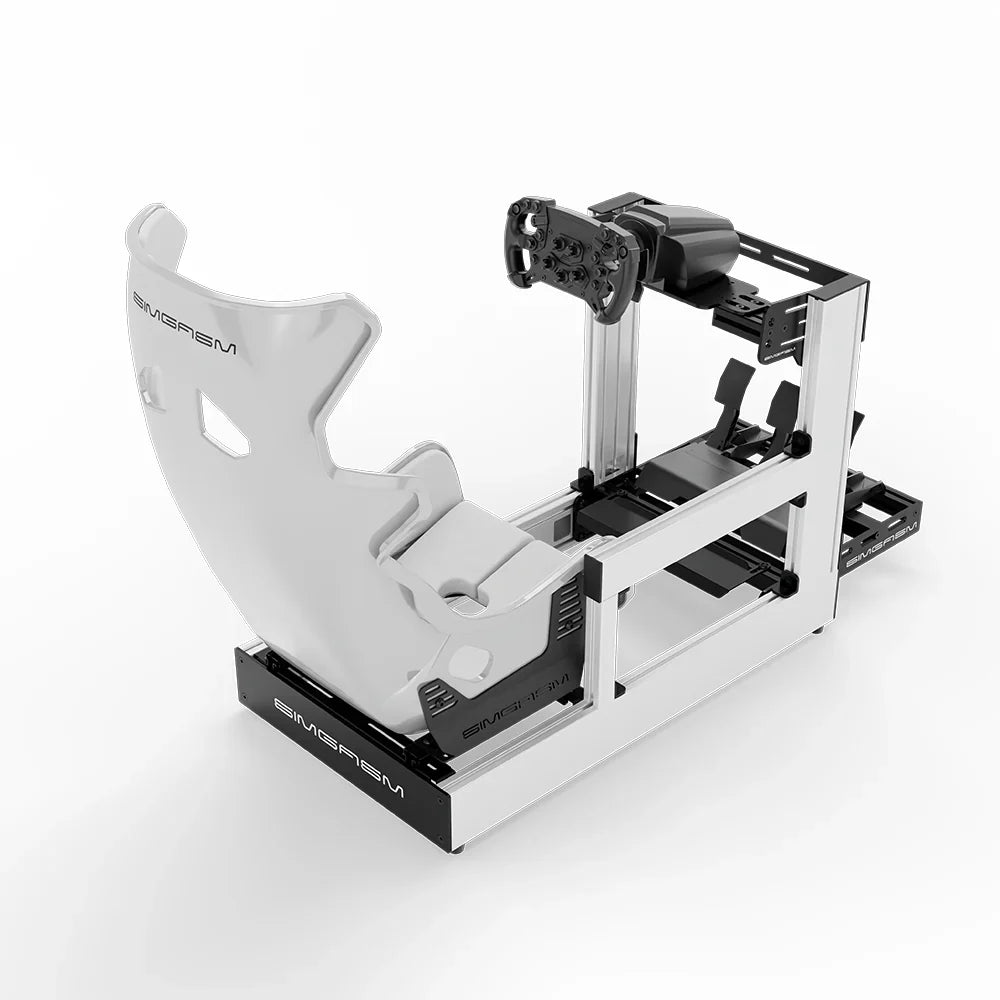

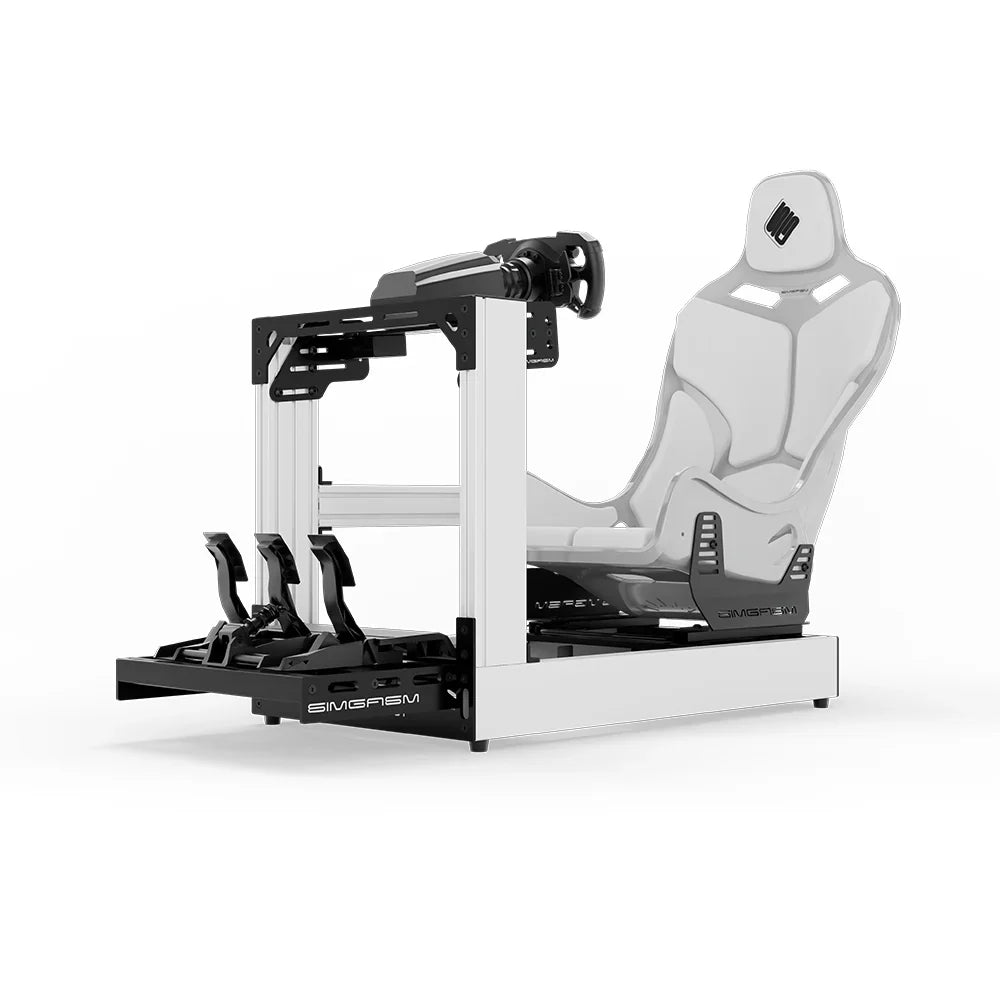

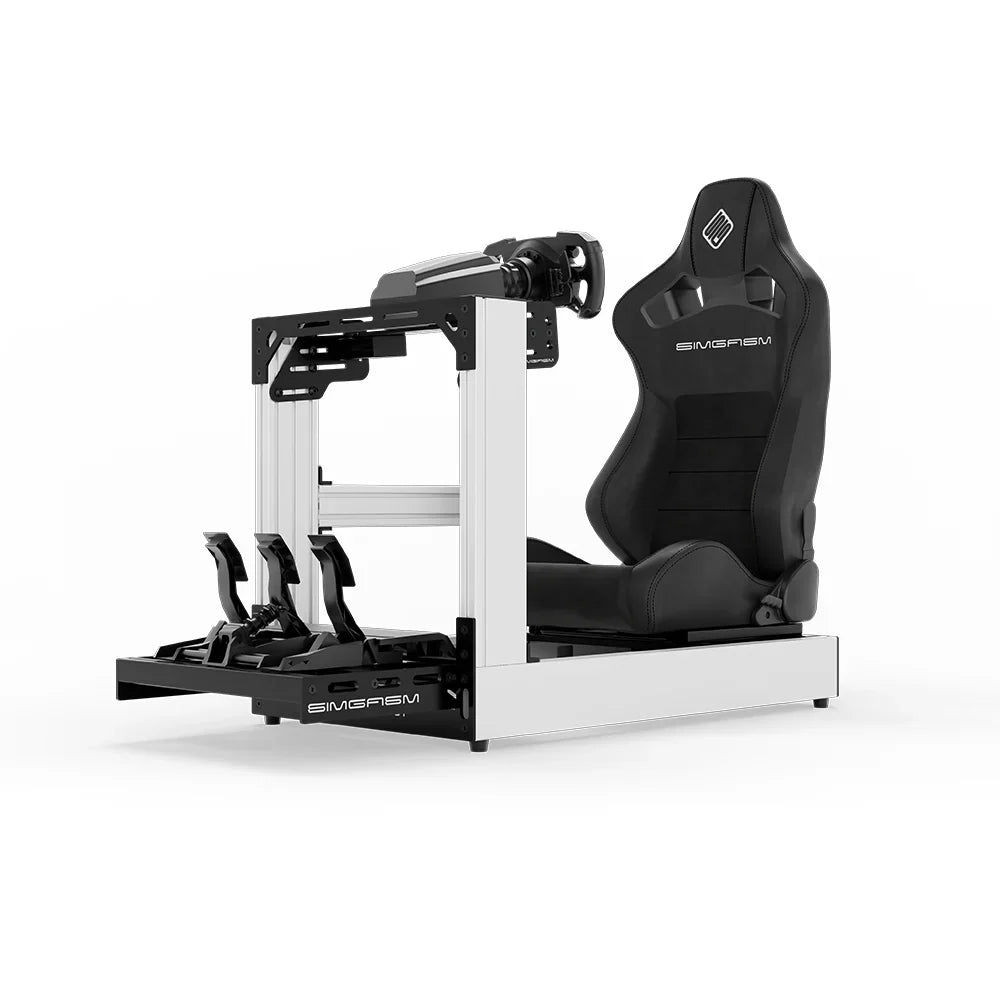

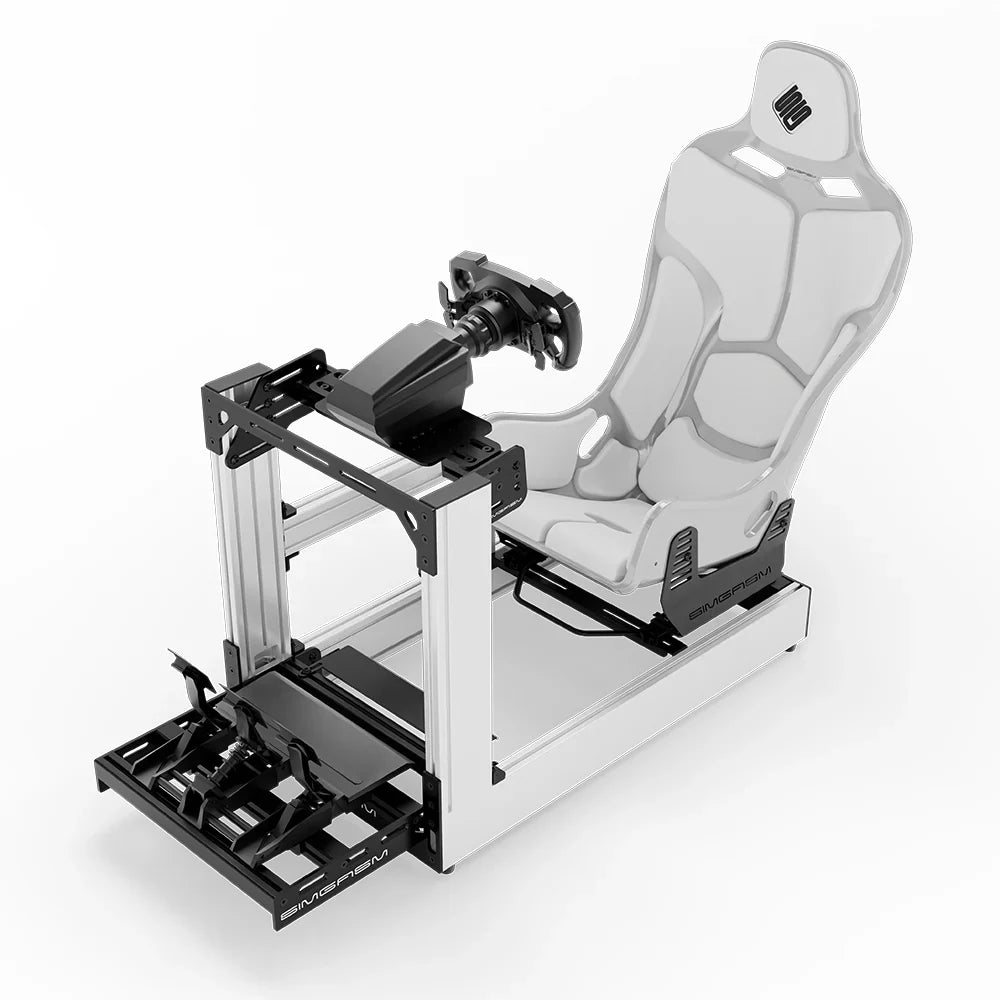

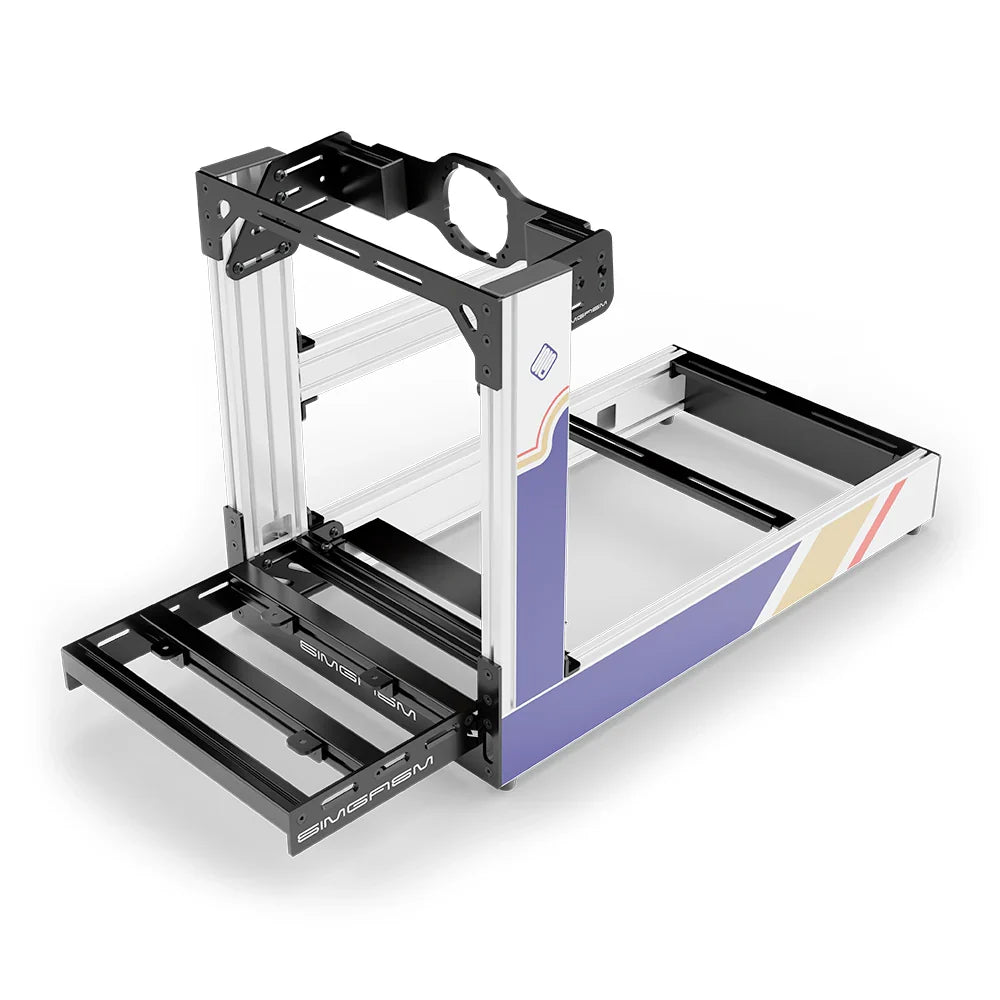

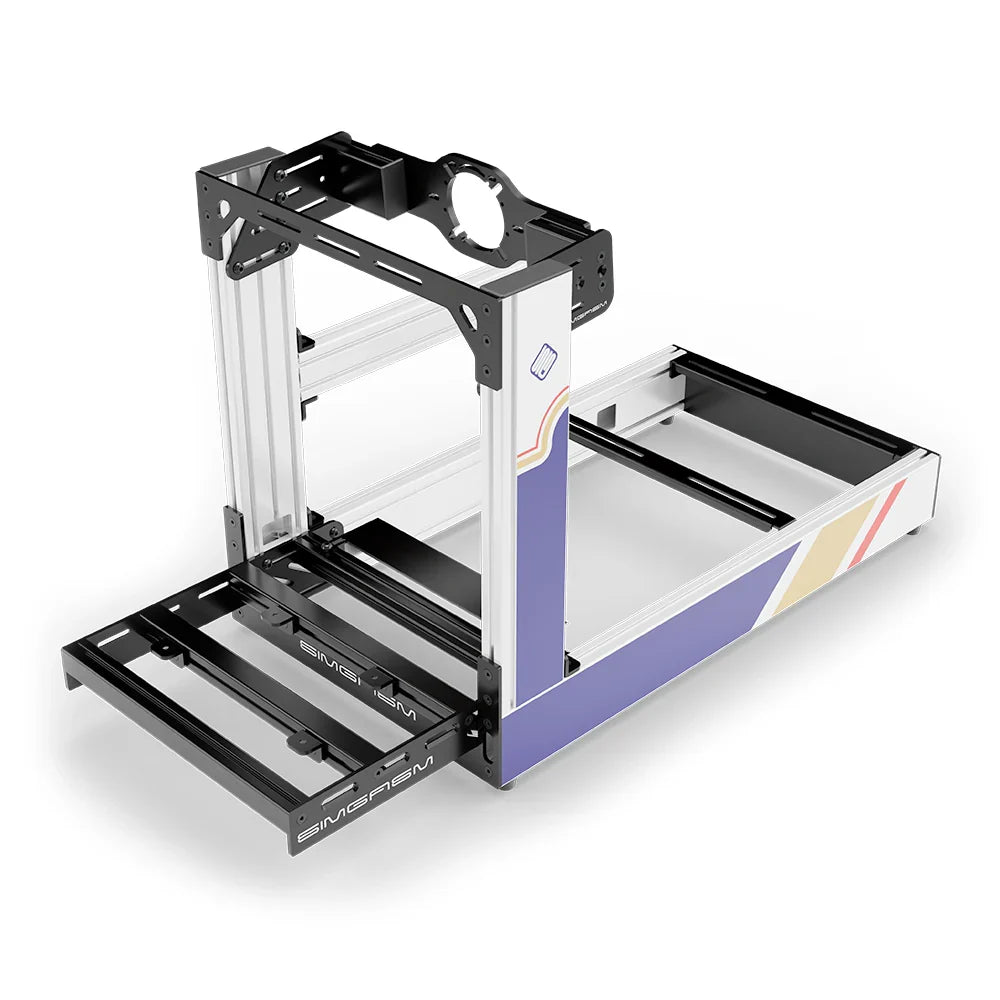

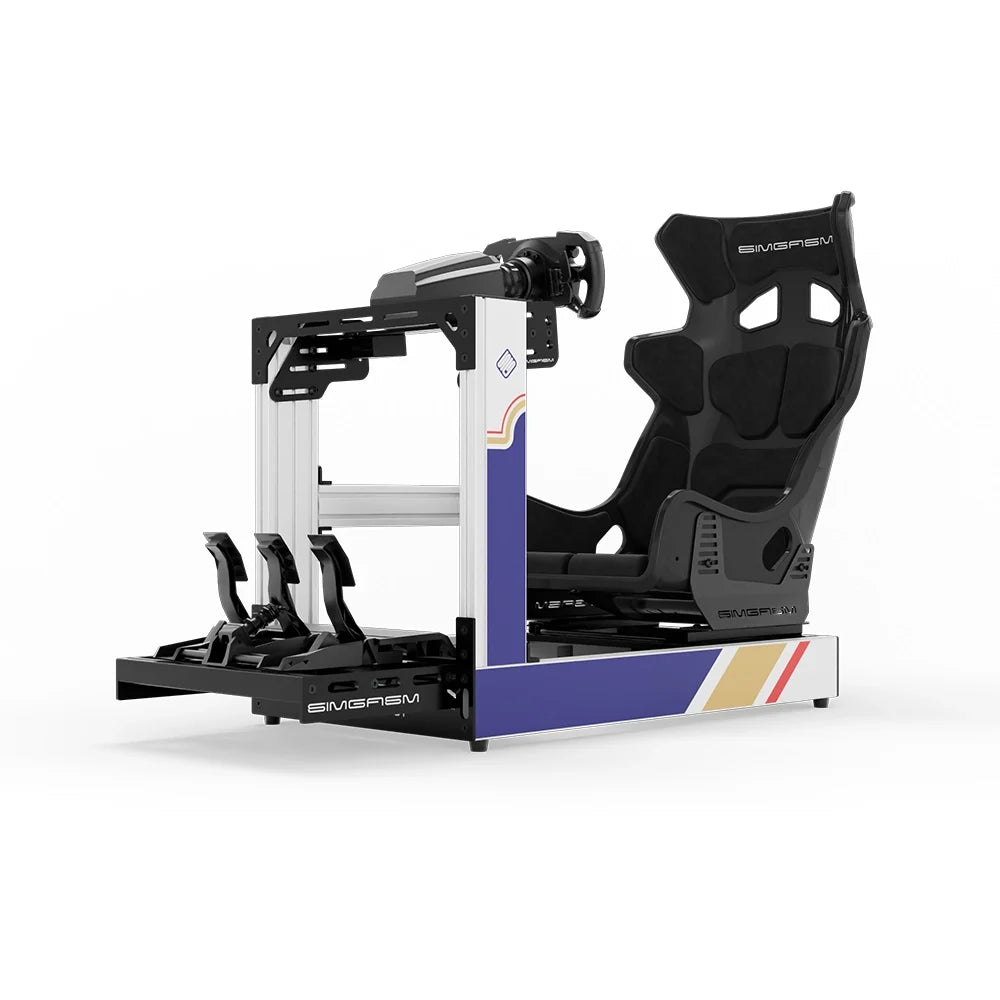

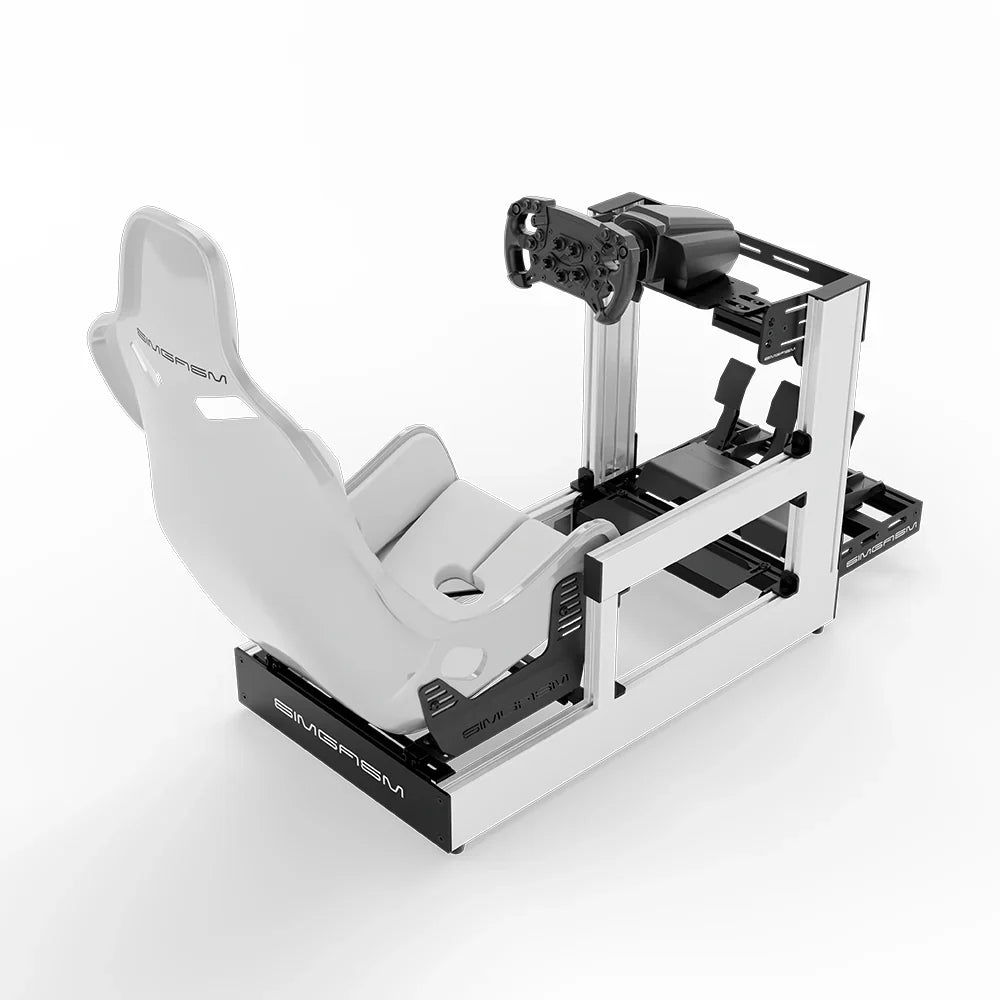

The SIMGASM Sport Aluminum Sim Racing Cockpit in RothBros uses a 40 × 120 mm main profile and has overall dimensions (W × L × H) of 580 × 1320 × 720 mm (22.8 × 52.0 × 28.3 in). It is designed for serious direct-drive and load-cell builds where rigidity, a clean routed installation and future motion integration matter, but the larger Pro structure is not essential.

Choose the Sport chassis for its position in the range, then select the wheel mount that matches your wheelbase in the compatibility module.

What is included—and what is not

Included: the aluminium profiles, structural chassis brackets, the wheel-mount option selected at checkout, assembly hardware and tools, white assembly gloves, the assembly guide, the Apex side-profile shifter/handbrake arm, heel rest and rubber feet.

Not included: the seat, seat slider, wheelbase, steering wheel, pedals, shifter or handbrake device, monitor stand, display, motion hardware or actuators unless a bundle or option explicitly states otherwise. Add the dual-locking seat slider when adjustable seat positioning is required.

When should you move from Sport to Pro?

Pro increases the main profile from 40 × 120 mm to 40 × 160 mm and adds heavy-duty steel reinforcement at critical mounting points. Both tiers currently carry a rated braking load of 300 kg at the pedal deck, integrated cable routing and motion readiness, so Pro should be chosen for extra structural headroom rather than those shared features. Compare it with the same-finish Pro cockpit.

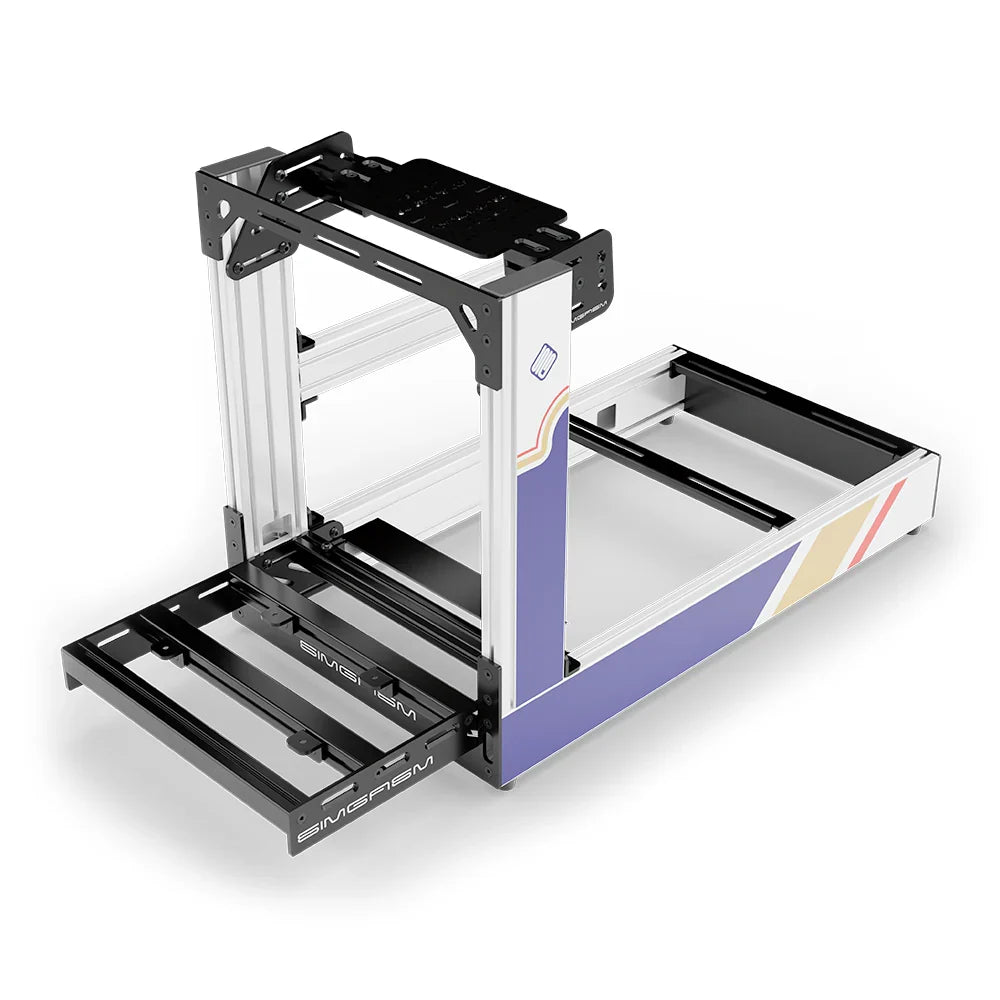

RothBros livery with high-contrast endurance character

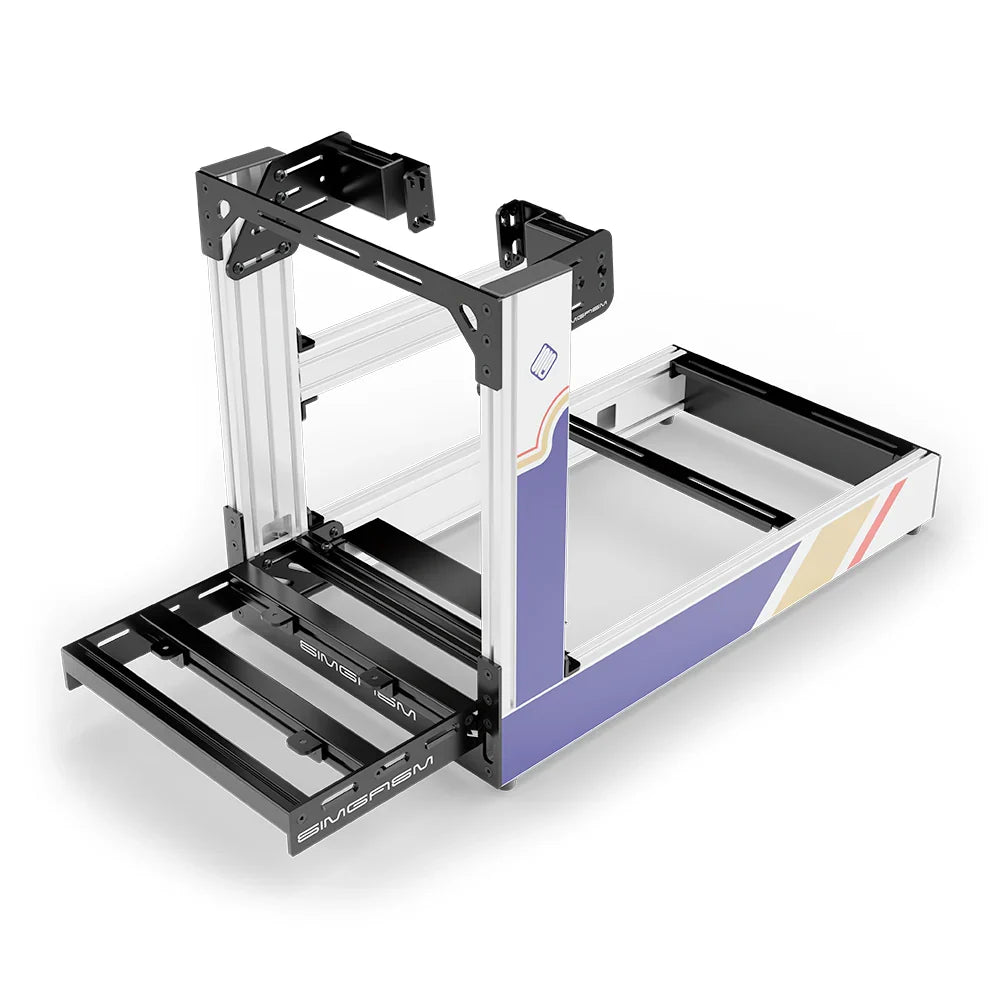

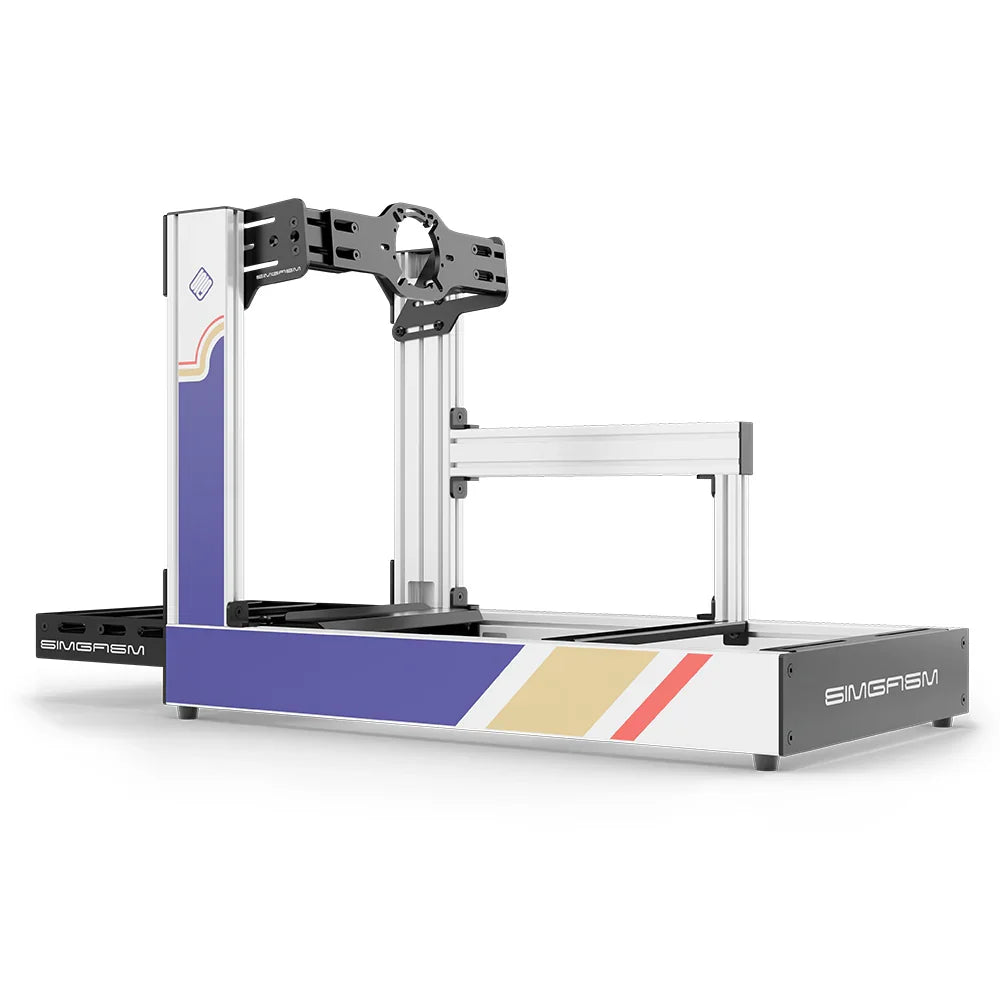

RothBros uses a light base, deep contrast blocks and precise accent lines to evoke the graphic confidence of late twentieth-century endurance, rally and sports-car competition. The livery gives the long chassis profiles a strong factory-team presence.

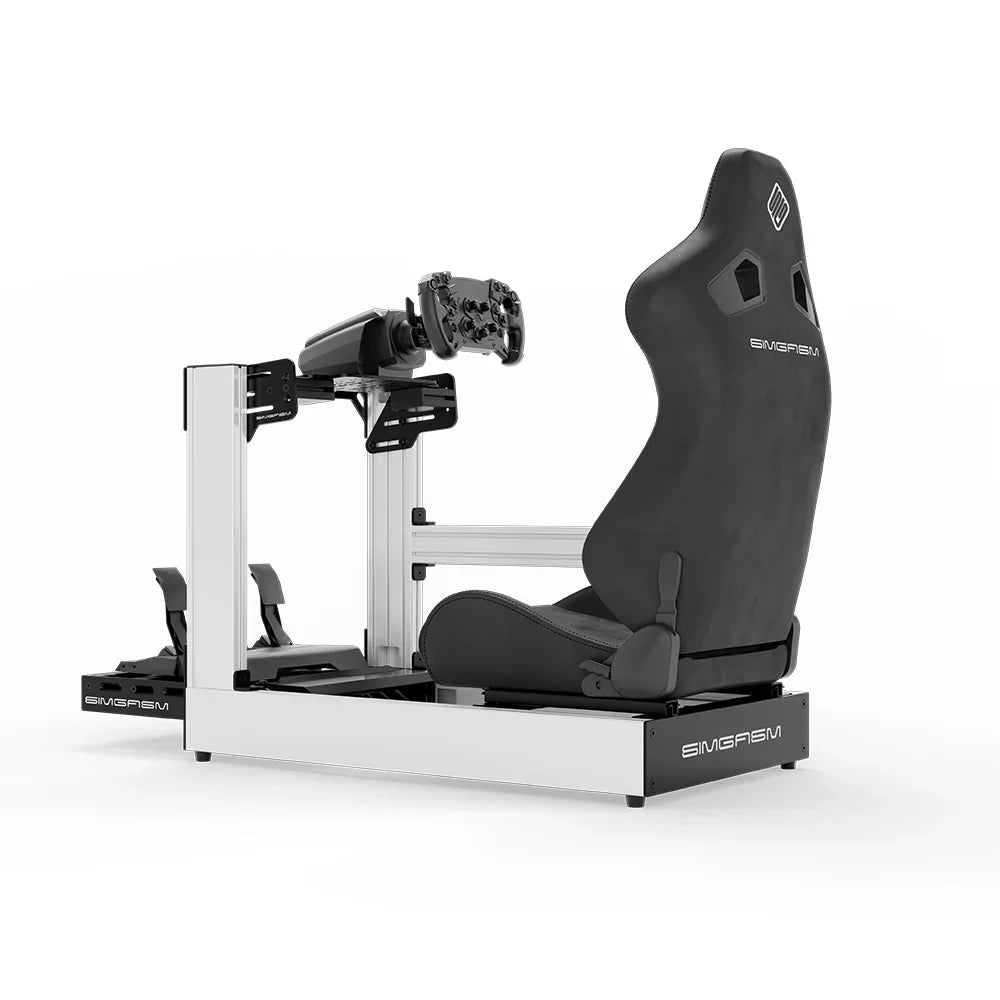

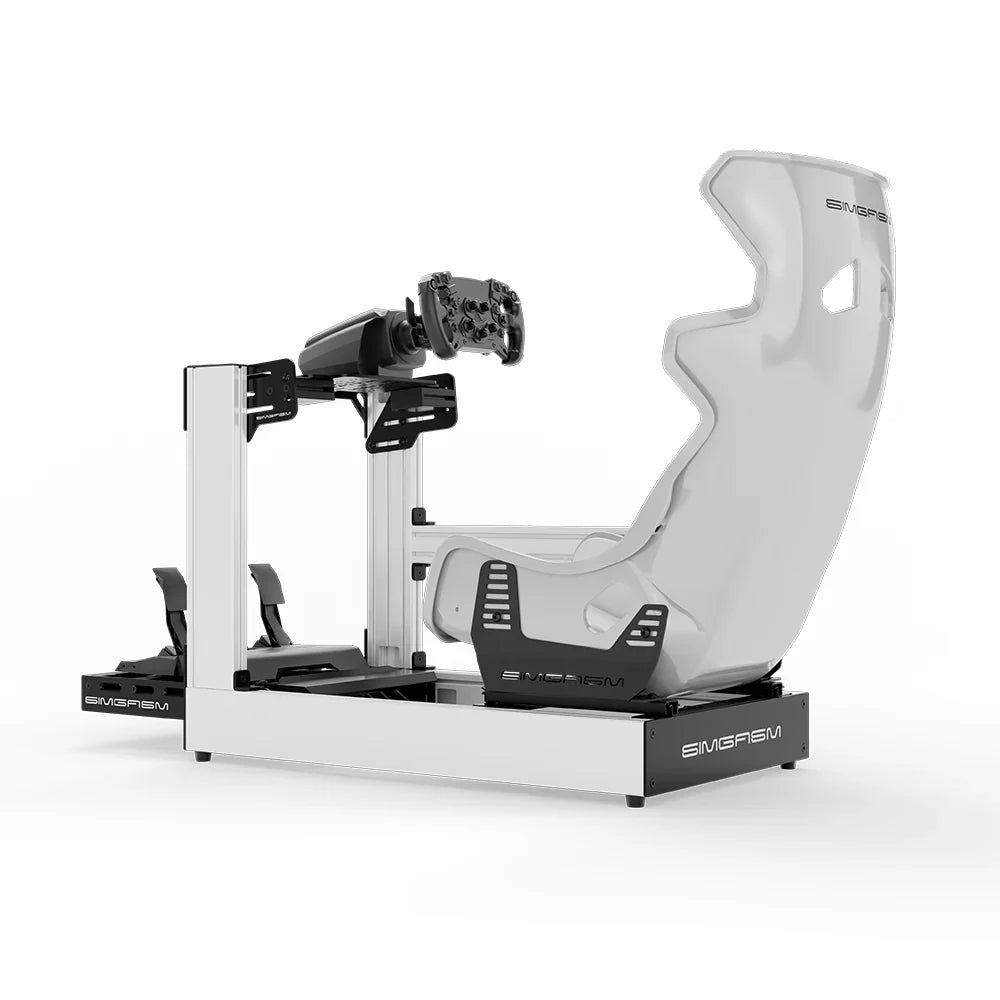

Dark seat, wheel and display hardware anchors the lighter design and keeps the graphics legible. Restrained peripherals allow the contrast blocks and accent lines to remain the defining visual elements.

Wheelbase compatibility depends on the selected mount

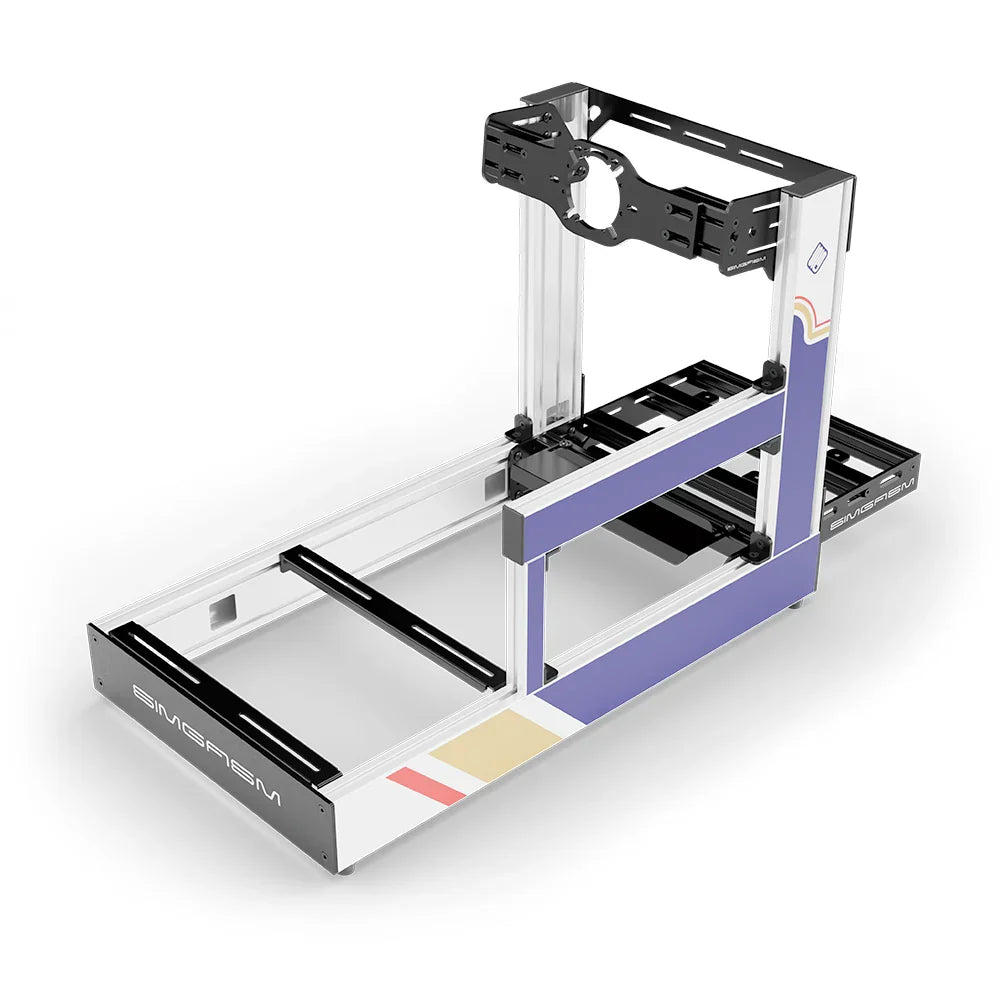

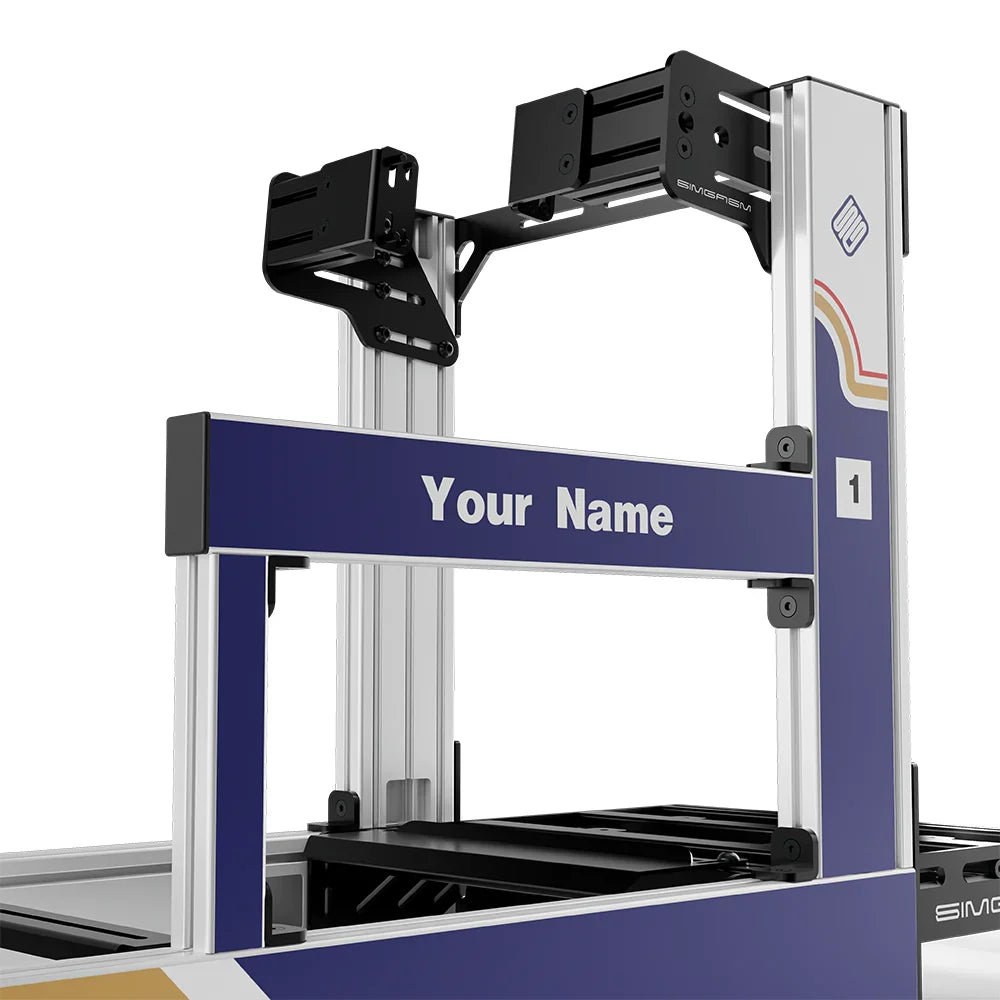

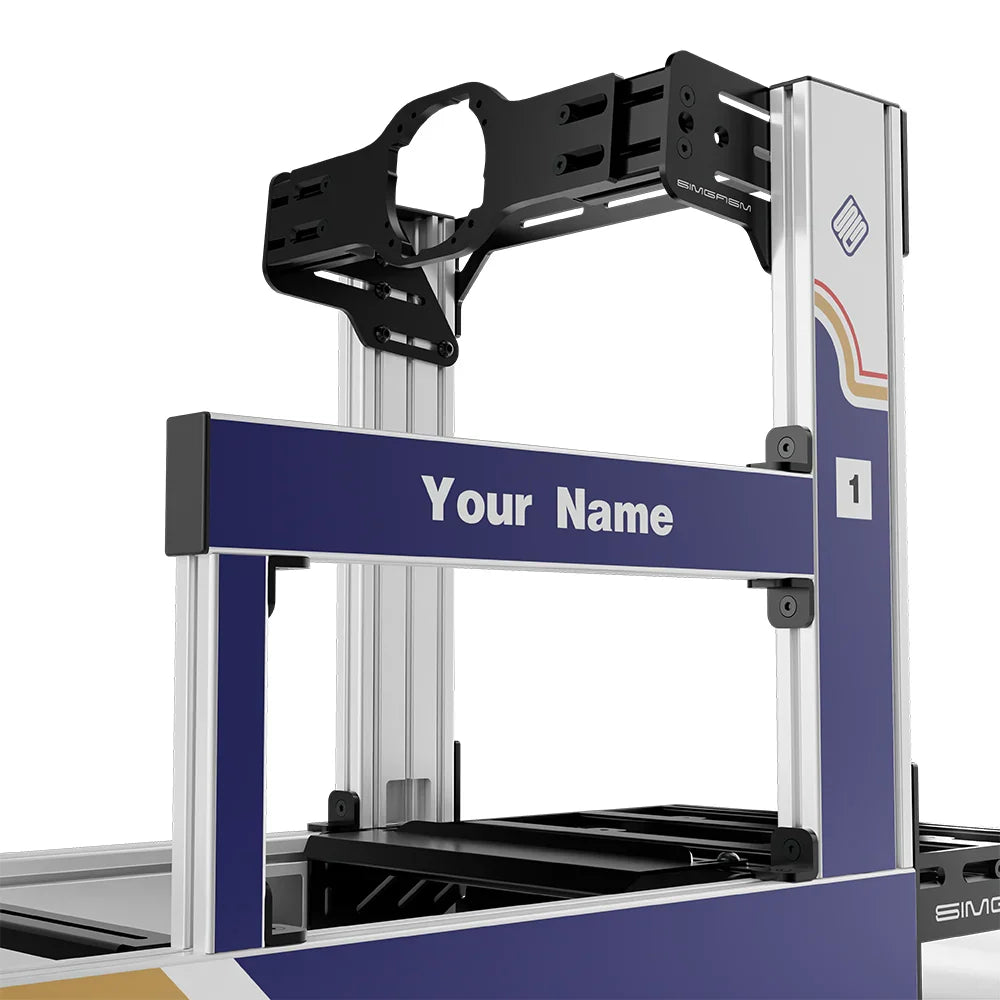

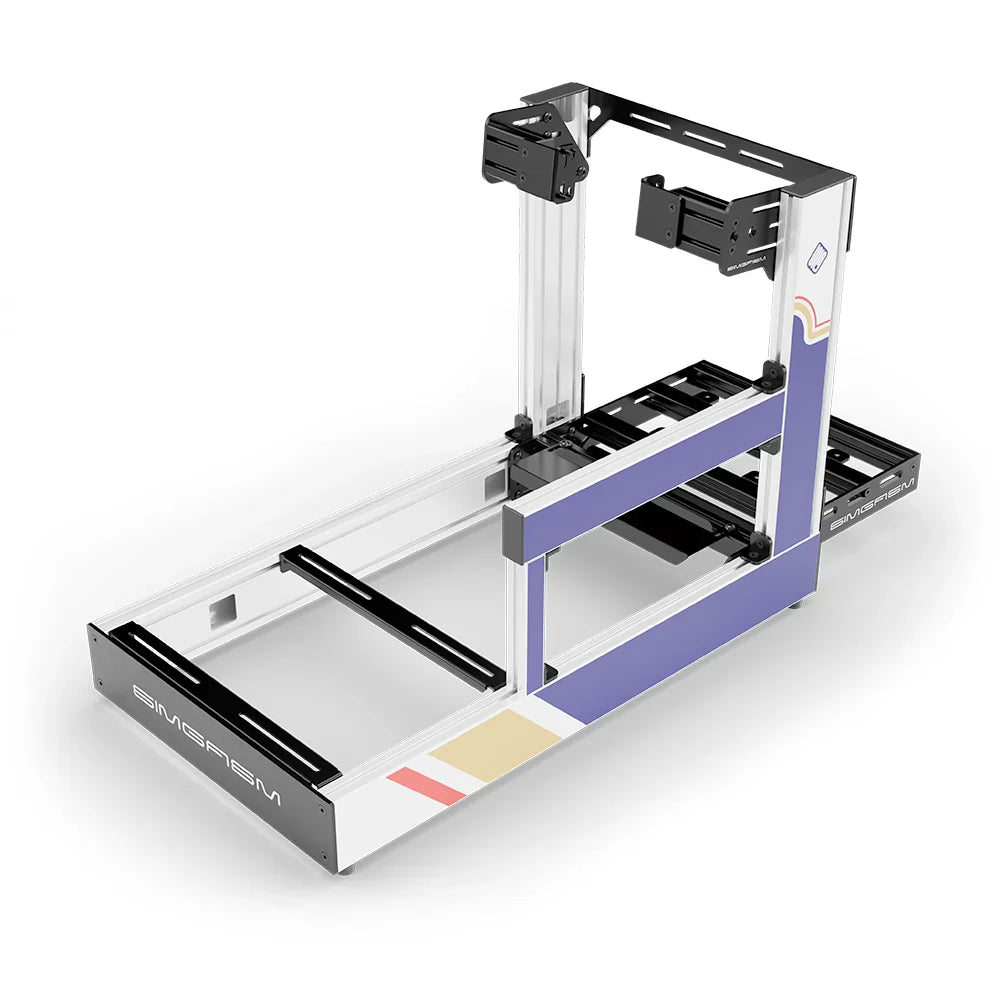

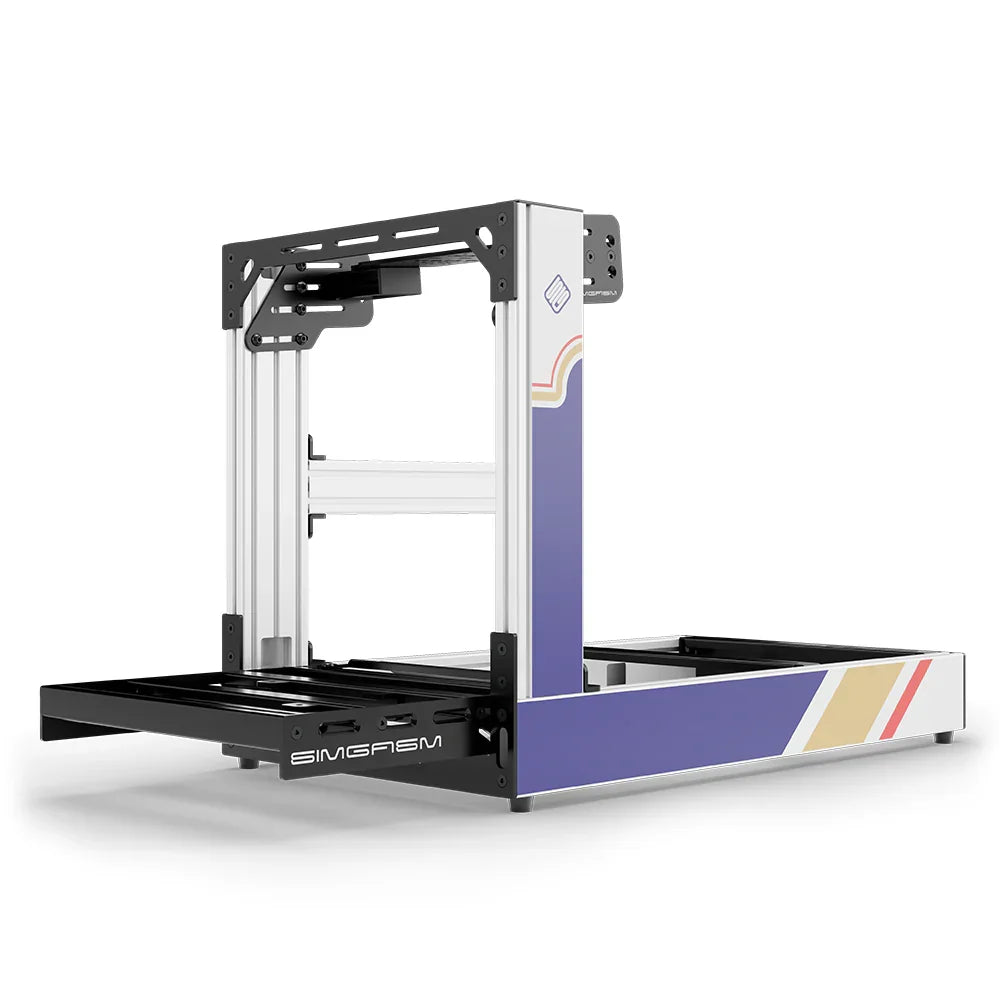

Compatibility is model-specific. Bottom Mount covers supported underside patterns from Logitech, Fanatec, MOZA, Thrustmaster, SIMAGIC, PXN, Simucube, Asetek and VRS. The regular Front Mount covers supported Simucube and VRS front patterns and does not fit any SIMAGIC wheelbase. Side Mount covers supported Fanatec, MOZA and SIMAGIC models, while Asetek Front Mount is dedicated to supported Asetek models. Always use the live selector and detailed model-level table on this page before ordering.

Key Sport comparison facts

• Main profile: 40 × 120 mm
• Overall dimensions (W × L × H): 580 × 1320 × 720 mm (22.8 × 52.0 × 28.3 in)
• Rated braking load at the pedal deck: 300 kg
• Integrated cable passthroughs and motion-ready construction
• Metal mounting components matched to this cockpit tier
• Standard SIMGASM warranty: 2 years

Build a complete RothBros simulator

Pair the cockpit with the Apex Integrated Single Monitor Stand when you want a directly mounted screen solution. Browse the complete SIMGASM cockpit range to compare the four profile tiers and all available finishes.
