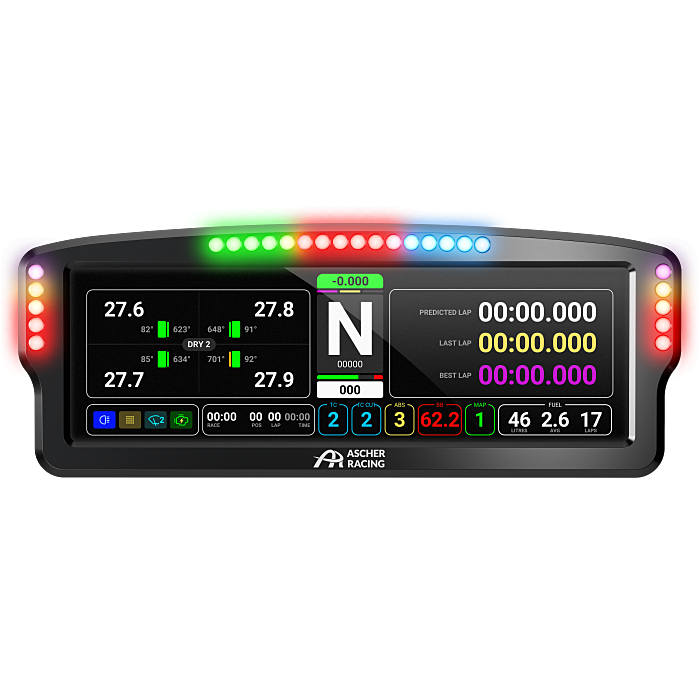

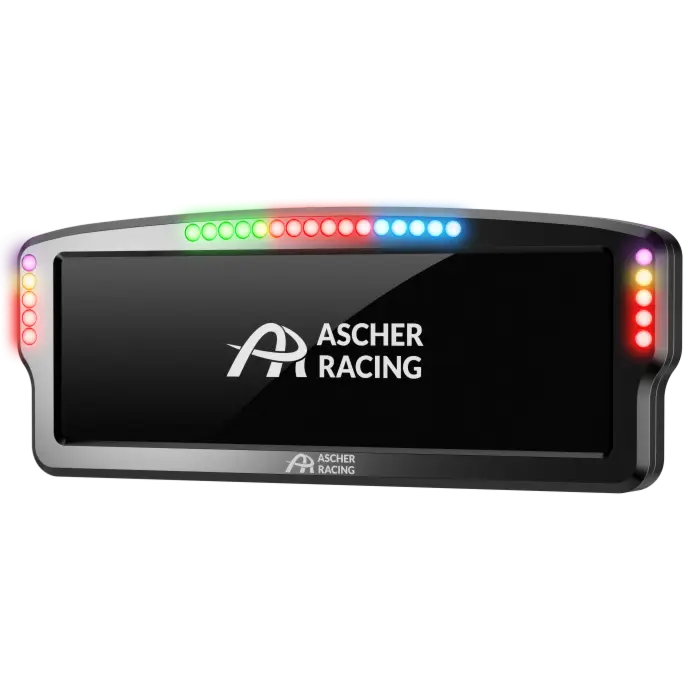

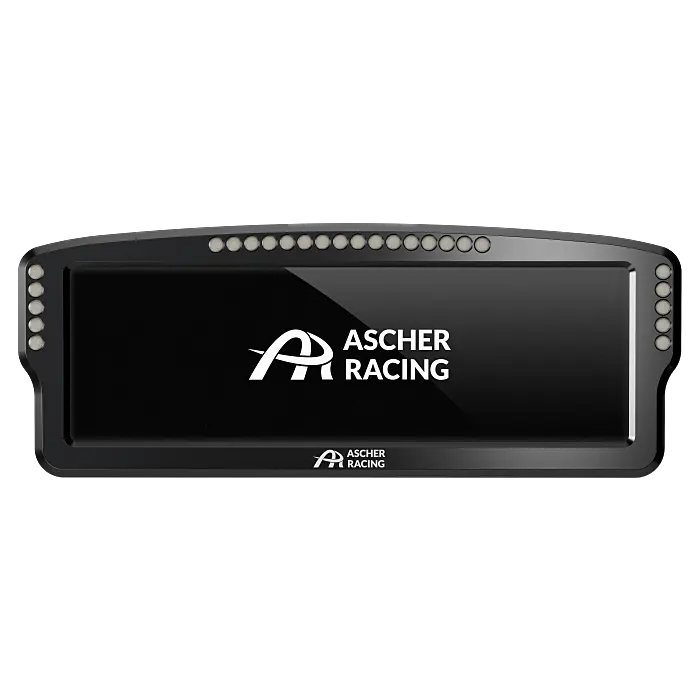

Ascher Racing 8" Dashboard
Ascher Racing 8" Dashboard
Matches cover the recorded checks shown here. Bare-frame dimensions exclude the seat, monitors, motion and access space. Mounts, adapters and game support still apply.
Request my free setup checkProduct information
The Ascher Racing 8" Dashboard is designed for Data Display (DDU) use within the compatibility and specifications listed below. The Ascher Racing 8” Dashboard combines a high-resolution 7.85-inch touchscreen, 26 RGB LEDs and official SimHub integration in a housing under 18 mm thick. It is designed to display real-time telemetry clearly while keeping installation compact and tidy.
Key features
- 1280 × 400 display, up to 60 Hz refresh rate and 350 lm brightness for clear telemetry.
- 26 configurable RGB LEDs, glove-compatible touchscreen operation and official SimHub support.
Product details
Compatibility
Platform: PC with SimHub.

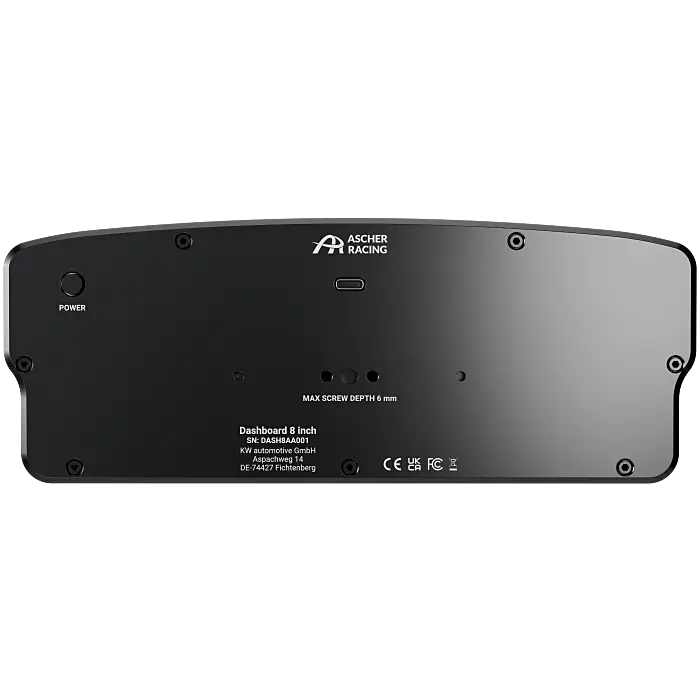

Mounting: Carbon brackets are included for compatible Simucube, Fanatec, VRS, Asetek and Simagic wheelbase installations. A ¼-inch rear thread is also available for universal mounting.
Recommended product: The dashboard description specifically mentions additional clutch pop-up functionality for the Ascher Racing F64-USB/Wireless V3 Wheel.
Specifications
Display 7.85 inch, 1280 × 400 px Refresh rate Up to 60 Hz Brightness 350 lm LEDs 26 RGB: 16 shift + 10 flag Touchscreen Resistive, glove-compatible Connection USB-C, 5 V / 3 A Housing CNC-machined anodized aluminium Dimensions 225.25 × 86.55 × 17.93 mmWhat's in the box?
- Ascher Racing 8” Dashboard
- Carbon mounting brackets
- Aluminium spacers and screws
- Angled USB-C cable
- Quick guide
Frequently asked questions
Does the Ascher Racing 8” Dashboard work with SimHub?
Yes. The product description specifies official SimHub integration with configurable layouts and LED behaviour.
Can the touchscreen be used with racing gloves?
Yes. The resistive touchscreen is described as glove-compatible.
How is the dashboard connected?
It uses an angled USB-C connection for data and power.
Which wheelbase brands are mentioned for mounting?
The included carbon brackets are described for Simucube, Fanatec, VRS, Asetek and Simagic wheelbase installations.
