MOZA Racing Table Clamp
MOZA Racing Table Clamp
Matches cover the recorded checks shown here. Bare-frame dimensions exclude the seat, monitors, motion and access space. Mounts, adapters and game support still apply.
Request my free setup checkProduct information

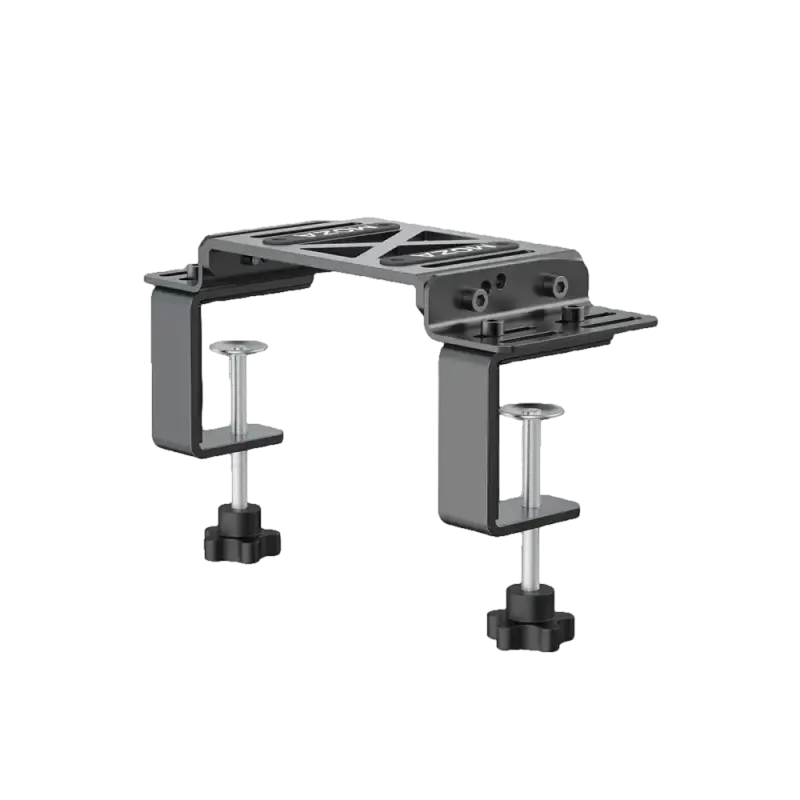

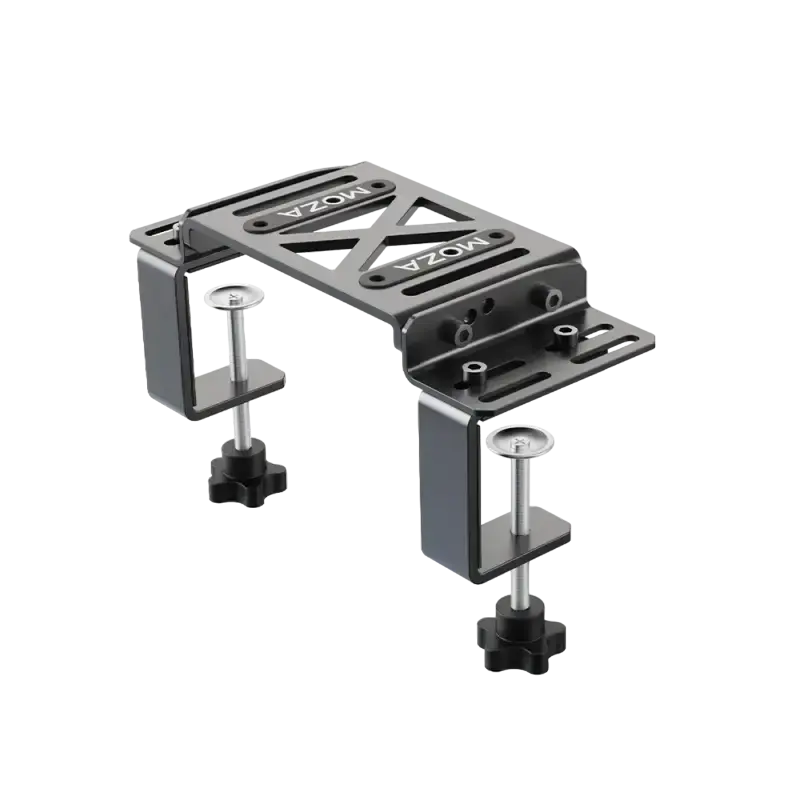

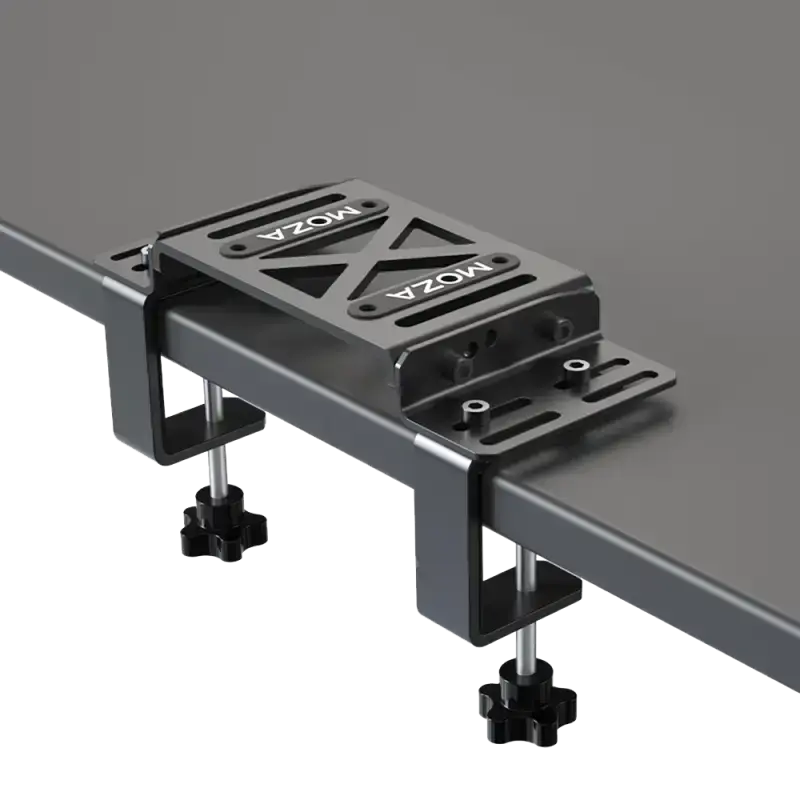

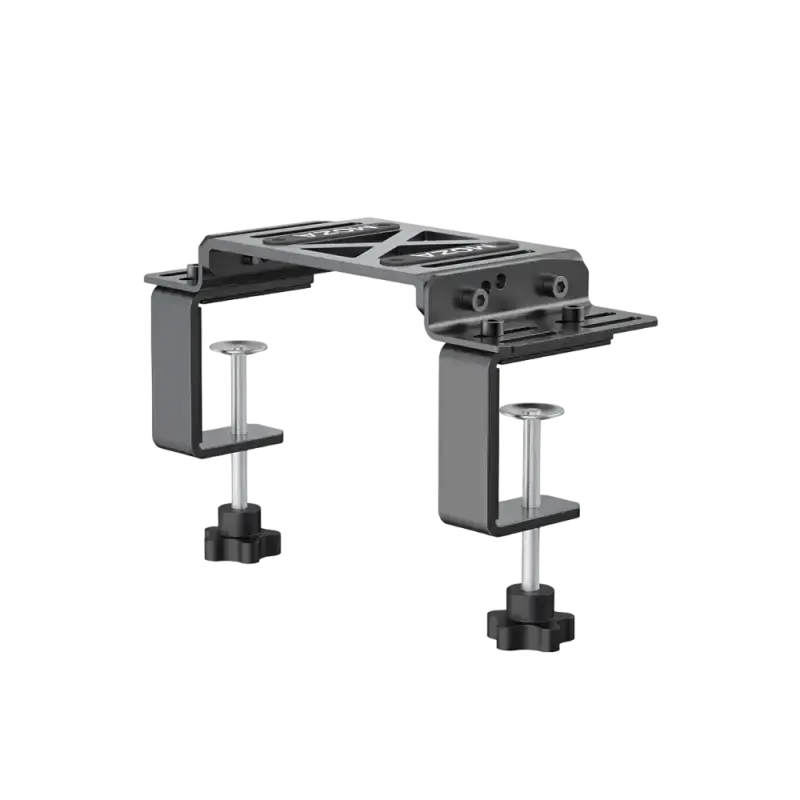

The MOZA Racing Table Clamp mounts a compatible direct-drive wheelbase to a desk. MOZA lists the R5, R9 and R12 and desktops up to 50 mm thick. Multiple mounting positions allow angle adjustment.
Key features
- The 5 mm CNC-machined steel construction provides a rigid desk mount for the listed R5, R9 and R12.
- Multi-angle mounting positions let you change the wheelbase position without a separate angle-adjustment mechanism.
Product details
MOZA Racing Table Clamp
Compatibility
Platform: This mechanical mount does not change platform compatibility.
Connection and ecosystem: MOZA’s current Table Clamp product page lists the R5, R9 and R12 Direct Drive Wheel Bases.
Requirements: A desk up to 50 mm thick is required. Standard mounting hardware is included. MOZA lists the clamp as optional for the standalone R9 V3.
Specifications
Material High-strength CNC-machined steel Steel thickness 5 mm Maximum desk thickness 50 mm Compatible wheelbases MOZA R5, R9 and R12 Adjustment Multi-angle wheelbase positionWhat's in the box?
- Bottom mounting bracket × 1
- Desk clamp brackets × 2
- M6 mounting screws × 4
- Hex key × 1
Frequently asked questions
Does the MOZA Racing Table Clamp work with the R9?
Yes. MOZA lists the R9 together with the R5 and R12.
Can I adjust the angle of the MOZA R9 with the MOZA Racing Table Clamp?
Yes. The clamp provides multi-angle positioning. MOZA does not publish a degree range.
Is the Table Clamp included with the standalone R9 V3?
No. MOZA lists the Table Clamp as an optional mounting accessory for the R9 V3.
Is the mounting hardware included?
Yes. The package includes the bottom bracket, two desk clamps, four M6 screws and a hex key.
Do I need another adapter to angle an R9 on the desk?
No additional angle adapter is listed for the standard Table Clamp installation; the clamp itself provides the multi-angle mounting positions.
