MOZA R9 V3 + KS Steering Wheel Bundle

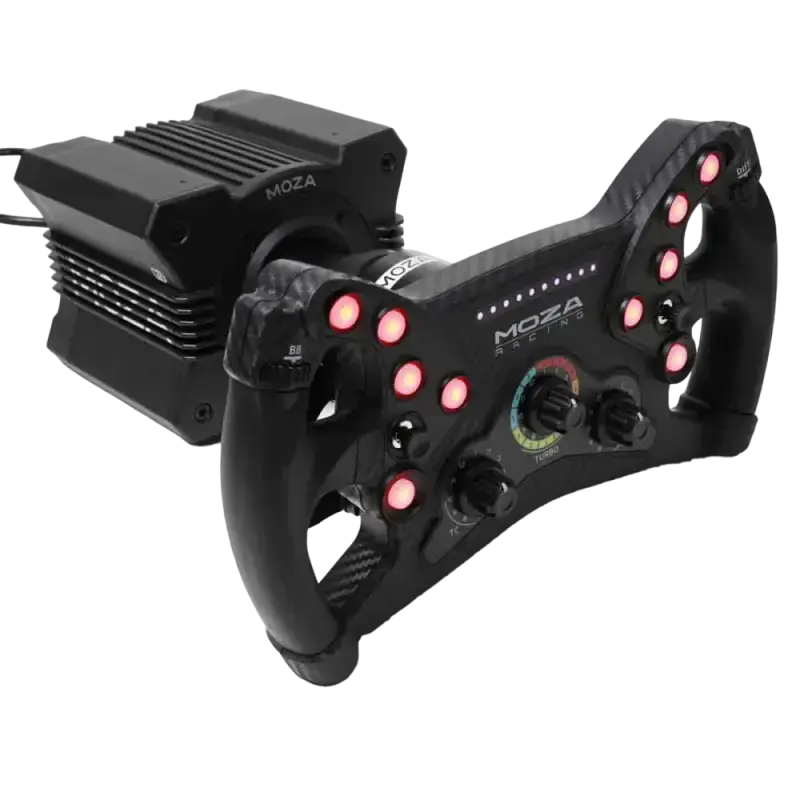

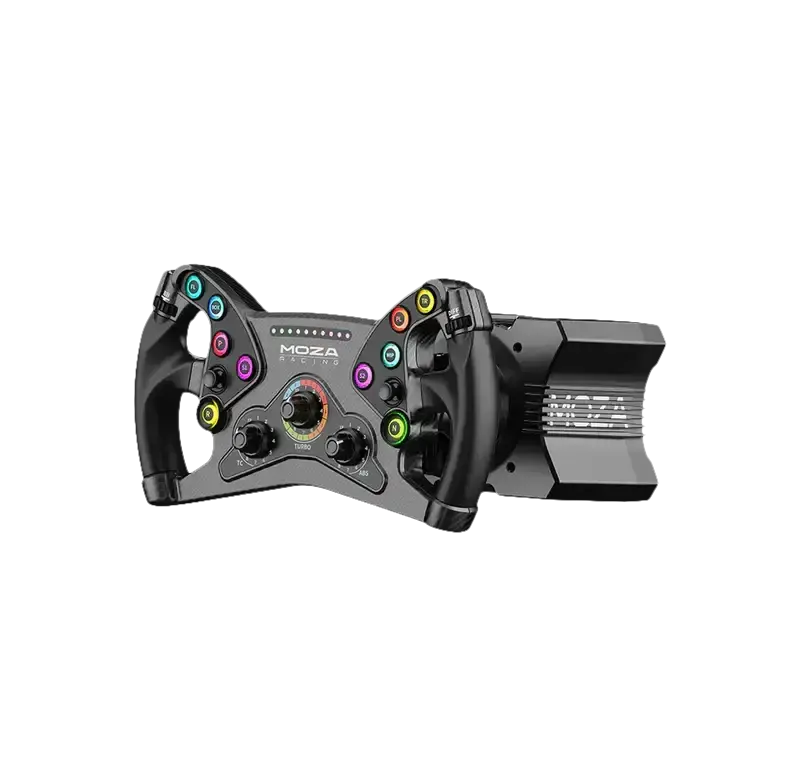

The MOZA R9 V3 + KS Steering Wheel Bundle pairs the latest 9 Nm R9 V3 direct-drive base with the 300 mm KS butterfly-style GT wheel. The R9 V3 adds a 21-bit magnetic encoder, active cooling and a 1000 Hz USB refresh rate, while the KS provides dual-clutch paddles, RGB buttons and multiple encoders. The result is a coordinated PC setup for GT, prototype and open-wheel driving within the MOZA ecosystem.

Key features

• The R9 V3 delivers 9 Nm direct-drive torque through an 18-slot / 16-pole servo motor and 21-bit magnetic encoder for precise steering feedback.
• The KS wheel places RGB buttons, joysticks, encoders and Hall-sensor clutch paddles on a compact 300 mm rim, reducing the need to reach away from the wheel.

Bundle components

Wheel base

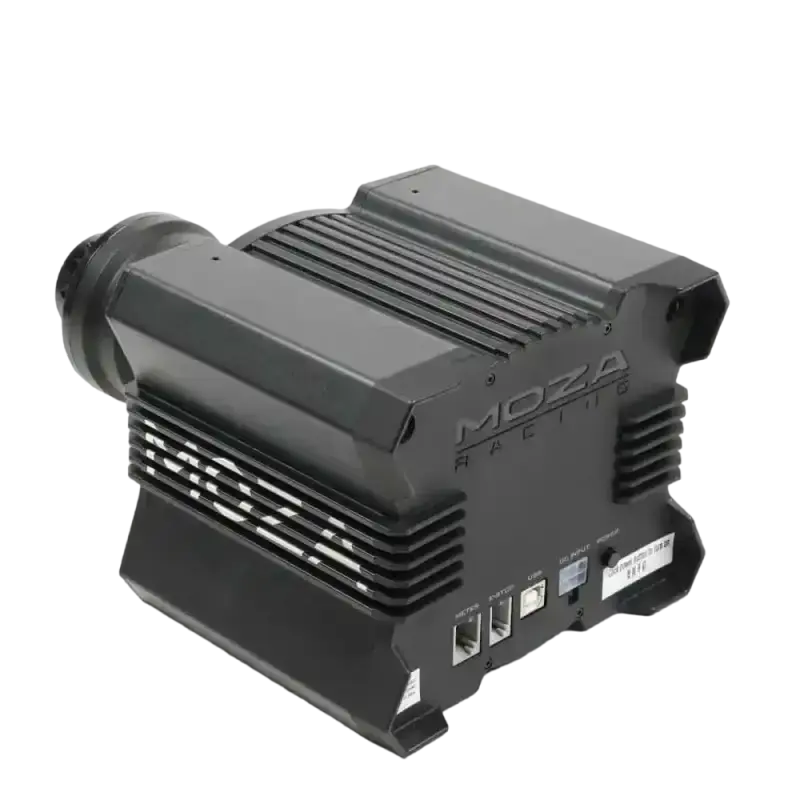

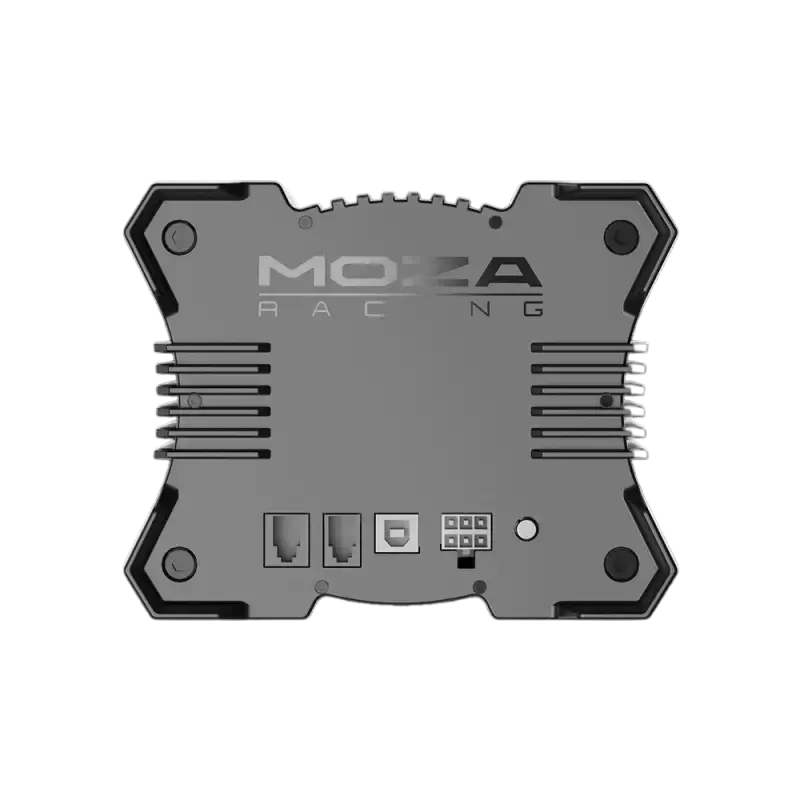

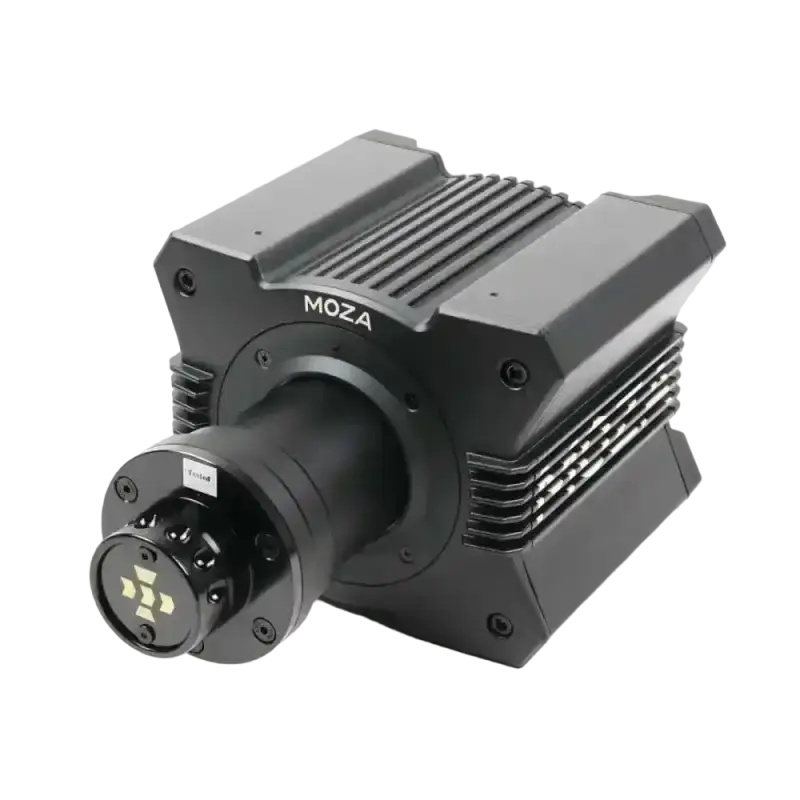

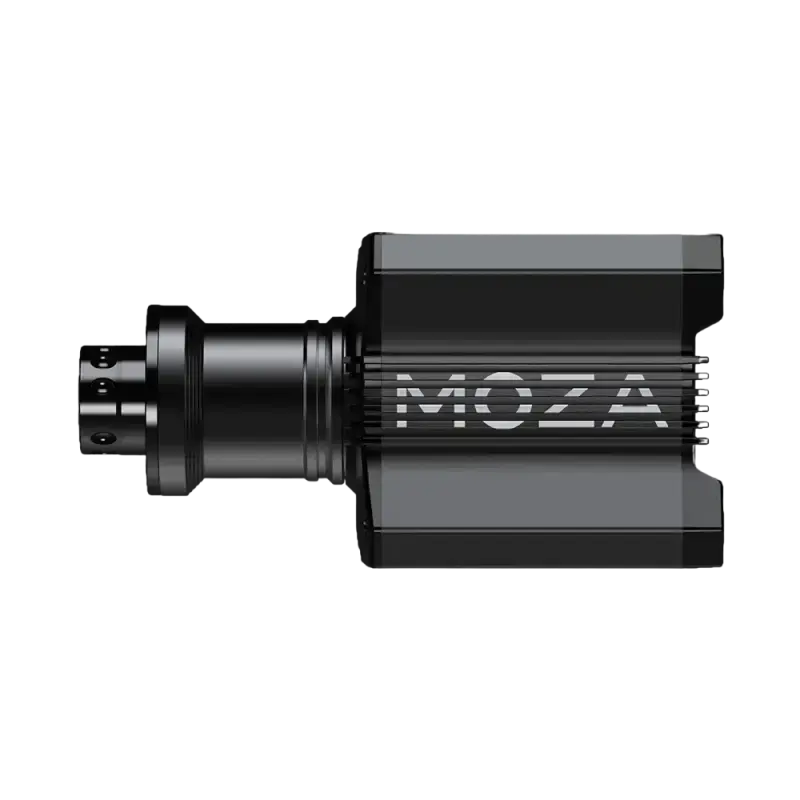

The MOZA R9 V3 Direct Drive Wheel Base uses a high-performance 18-slot / 16-pole servo motor with 9 Nm peak torque and 180 W peak power. A 21-bit magnetic encoder provides 2,097,152 steps per revolution and the USB connection operates at 1000 Hz. MOZA specifies intelligent temperature monitoring with active cooling for the V3. The aviation-grade aluminum housing supports steering angles from 90° to 2700°, and the rear connections cover power, pedals, emergency stop, USB, dashboard, shifter and handbrake.

Steering wheel

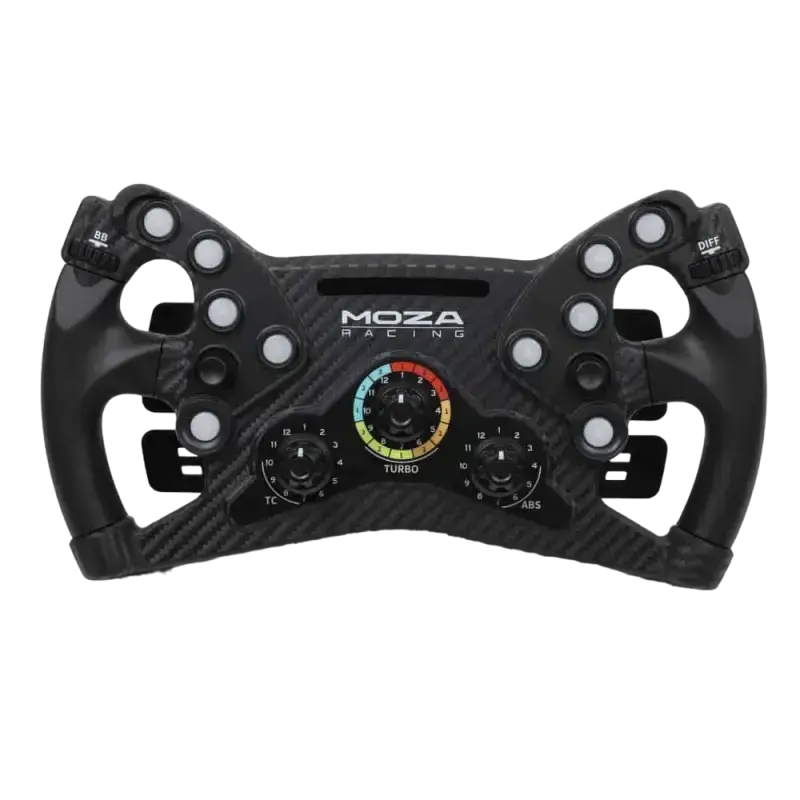

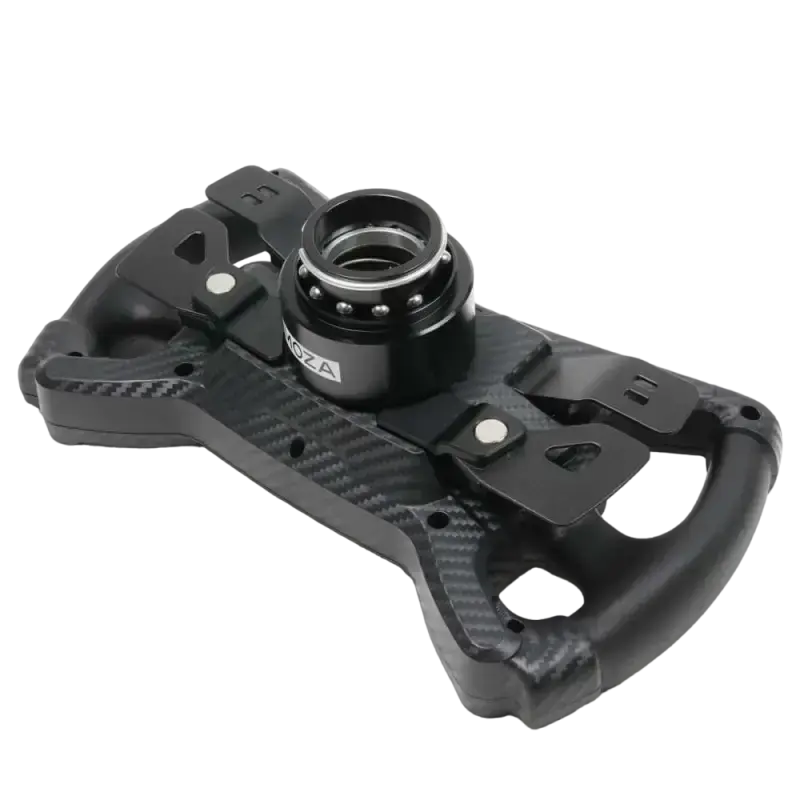

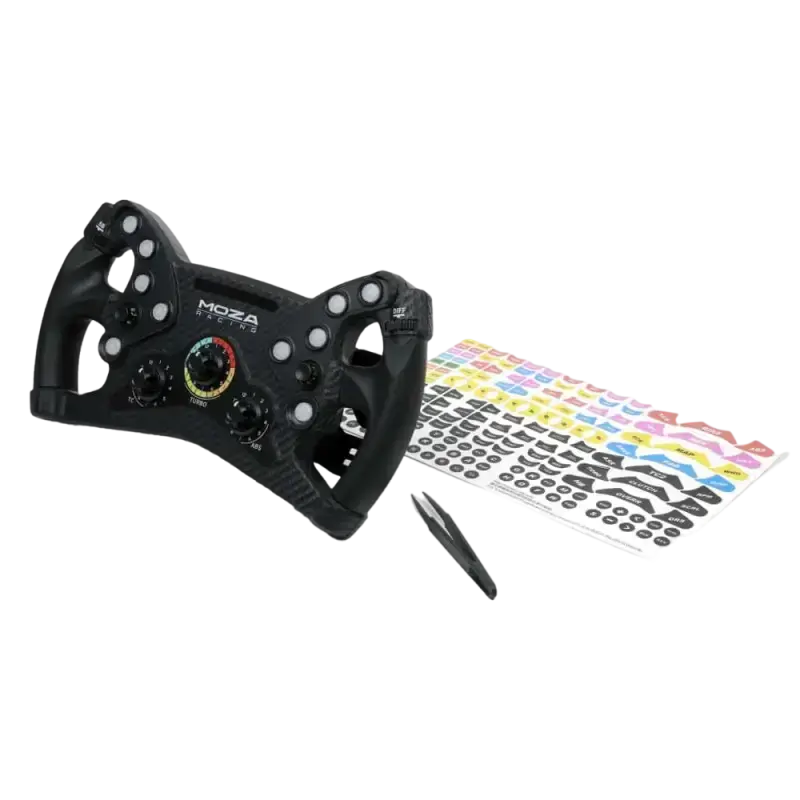

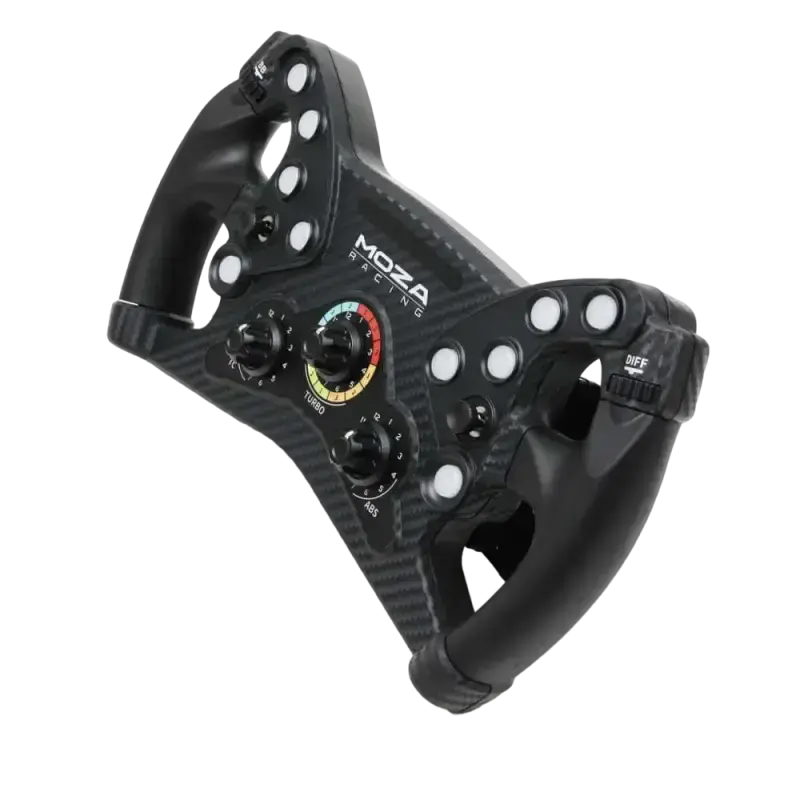

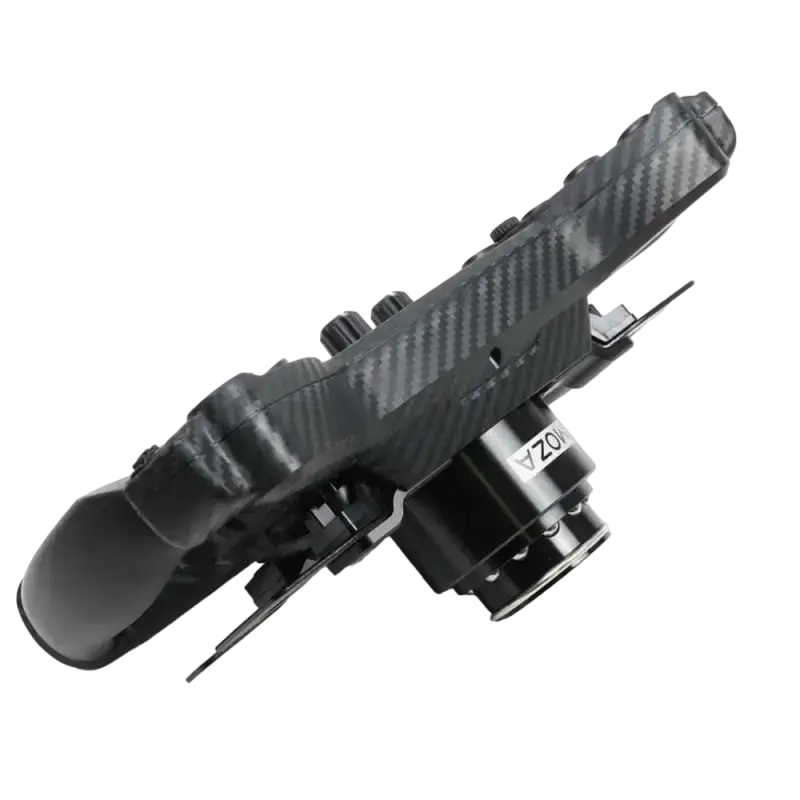

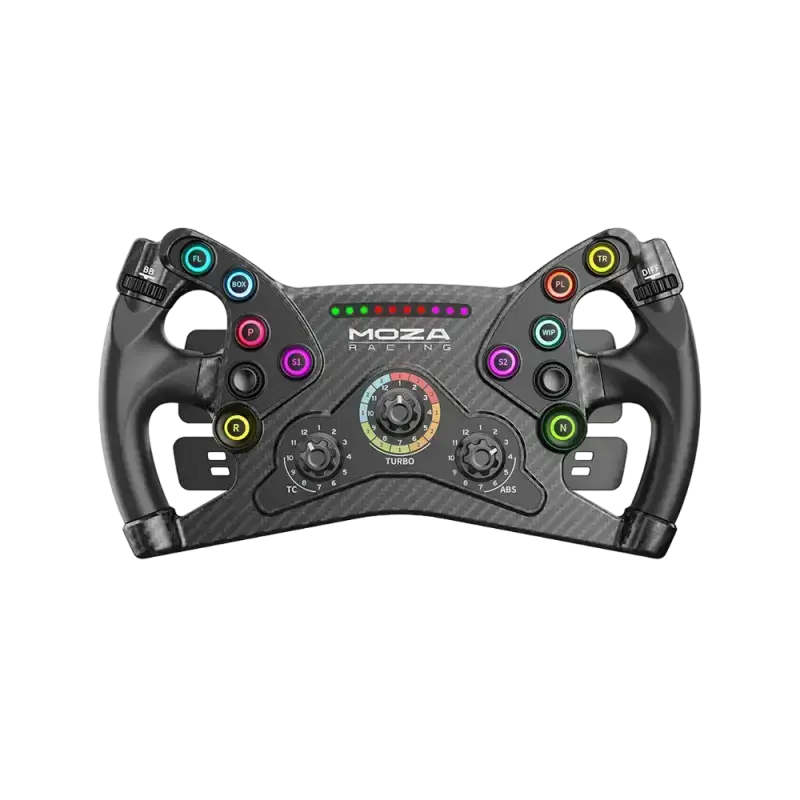

The MOZA Racing KS Steering Wheel uses a 300 mm standard GT format with a butterfly shape, carbon-fiber-reinforced composite body and TPE rubber grips. Ten RGB short-travel buttons sit alongside two depressible joysticks, two thumb encoders and three rotary encoders. Two magnetic shifter paddles and two clutch paddles use Hall sensors, and the clutch can be configured as combined axis, independent axis or button inputs. Ten high-brightness LEDs provide configurable telemetry. The MOZA Quick Release and conductive slip ring carry the wheel connection to the base.

Mounting and included hardware

The R9 V3 uses a four-hole bottom mount as standard and MOZA also lists optional side mounting and a table clamp. The bundle includes the R9 V3 base and KS wheel, plus the power supply, USB cable, toolkit, documentation and warranty card associated with the base package. A cockpit or desk clamp, pedals, shifter, handbrake and emergency-stop switch are optional and are not included.

Software and configuration

MOZA Pit House manages force-feedback strength, profiles, steering range and firmware for the R9 V3. For the KS, the same software handles input mapping, RGB button colours, RPM LEDs, dual-clutch behaviour and telemetry functions. Keeping both devices inside one configuration environment makes it easier to save settings for different cars and racing disciplines.

Upgrade options

The R9 V3 includes dedicated ports for compatible MOZA pedals, dashboard, shifter, handbrake and an optional emergency stop. The KS can also be used with other compatible MOZA bases. Those additions are separate products; this bundle contains the R9 V3 and KS combination only.

Product details

MOZA R9 V3 + KS Steering Wheel Bundle

Compatibility

Platform: PC. MOZA lists the R9 V3 + KS bundle as a PC setup.

Connection and ecosystem: The KS attaches through the MOZA Quick Release and communicates through the conductive slip ring; the R9 V3 connects to the PC by USB.

Requirements: The external power adapter is included. A compatible mounting solution is required; the optional table clamp and side-mount hardware are not included.

Specifications

What's in the box?

• MOZA R9 V3 DD wheel base × 1
• MOZA KS steering wheel × 1
• Power supply / adapter
• USB cable
• Toolkit
• User manual
• Warranty card

Frequently asked questions

Is the R9 V3 + KS bundle a PC or console setup?

MOZA specifies this exact R9 V3 + KS bundle for PC. No PlayStation compatibility is claimed, and the KS wheel does not supply a licensed Xbox function for this bundle.

Does the R9 V3 need an external power supply?

Yes. MOZA specifies an external power supply for the 9 Nm direct-drive base, and the power adapter is included with the bundle.

Can I use the R9 V3 on a desk?

MOZA lists a table clamp as an optional accessory and also supports the standard four-hole bottom mount and optional side mounting. The table clamp is not included.

What can I configure in MOZA Pit House?

Pit House controls the R9 V3 force-feedback settings, steering range, profiles and firmware, and it also manages KS button mapping, clutch modes, RGB buttons and RPM LEDs.

What racing styles suit the KS wheel?

MOZA describes the 300 mm KS as a GT wheel and positions this bundle for GT, prototype and open-wheel racing, where a compact butterfly-style rim and dense controls are useful.
