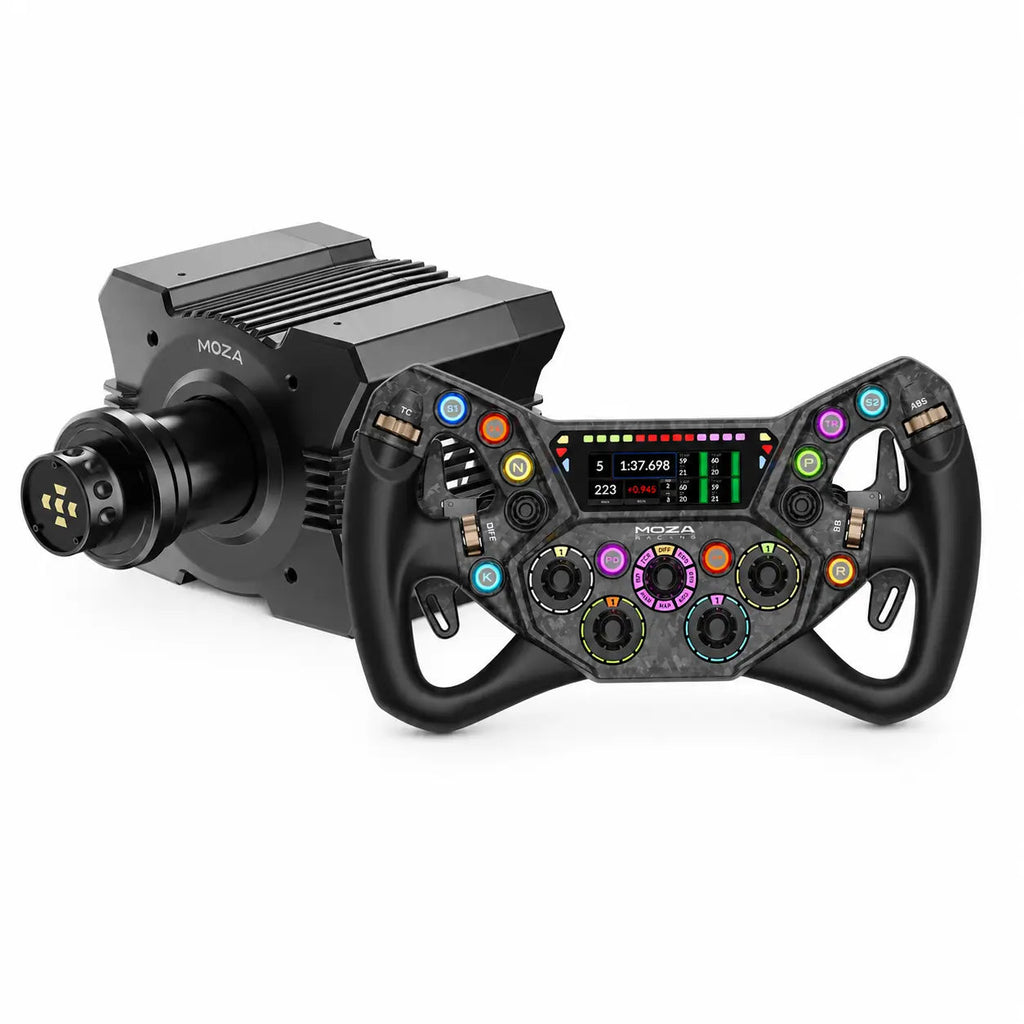

MOZA R9 V3 + KS Pro Steering Wheel Bundle

This bundle combines the MOZA R9 V3 direct-drive wheel base with the KS Pro Steering Wheel. The R9 V3 delivers 9 Nm through an 18-slot / 16-pole servo motor, a 21-bit magnetic encoder and active cooling. The 300 mm KS Pro adds a customizable 2.99-inch display, dense programmable controls and forged-carbon dual-clutch paddles. Together they create a compact PC setup for GT, endurance and formula-style driving within the MOZA ecosystem.

Key features

• The R9 V3 combines 9 Nm direct drive, a 21-bit magnetic encoder and active thermal monitoring to deliver detailed feedback from a compact aluminum wheel base.
• The KS Pro adds a customizable display, 10 RGB buttons, multiple encoders, telemetry LEDs and Hall-sensor dual-clutch paddles on a 300 mm butterfly-style rim.

Bundle components

Wheel base

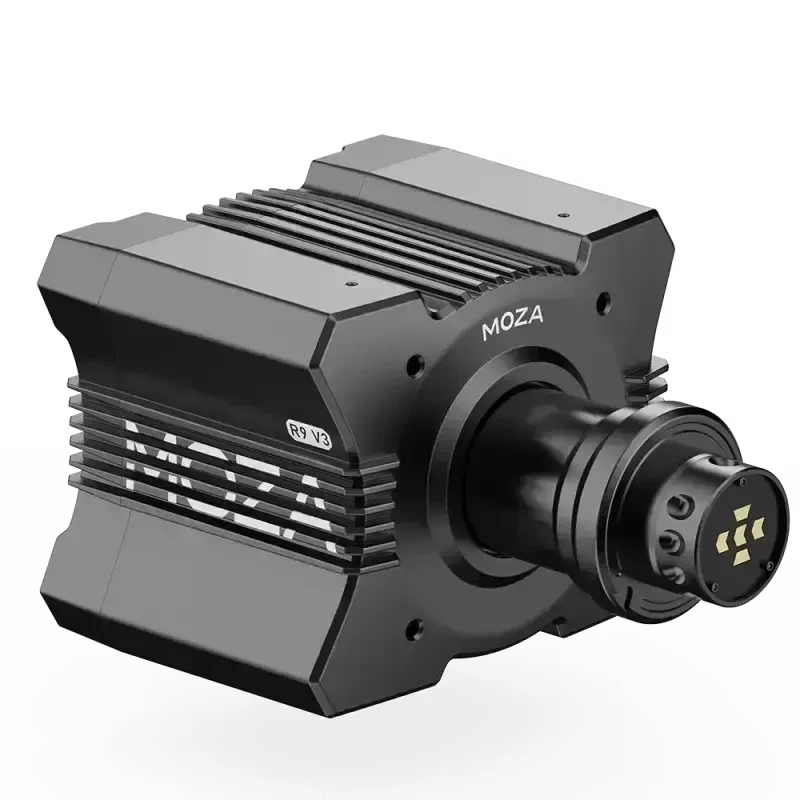

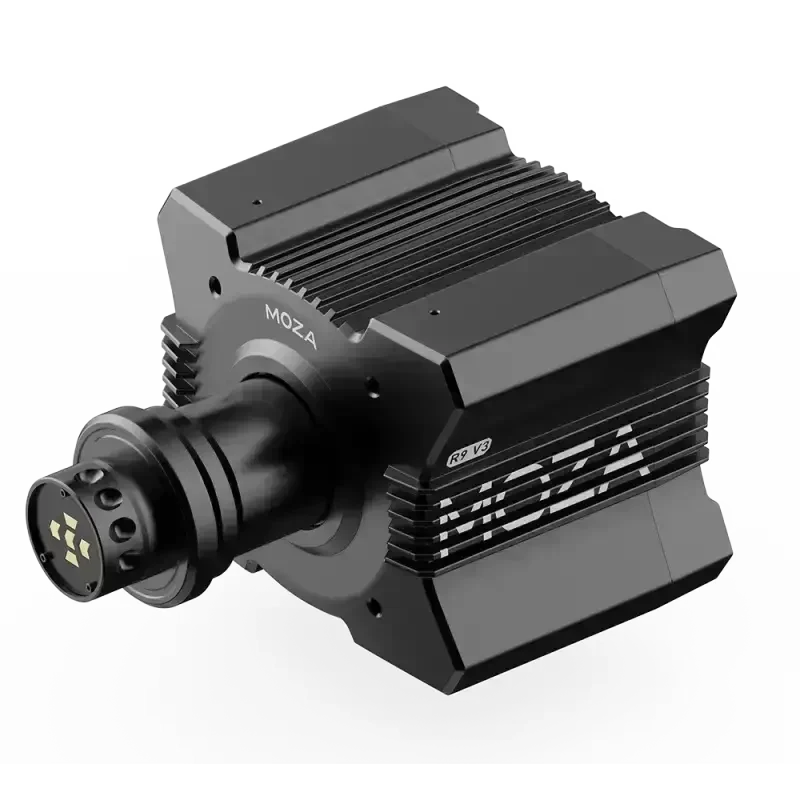

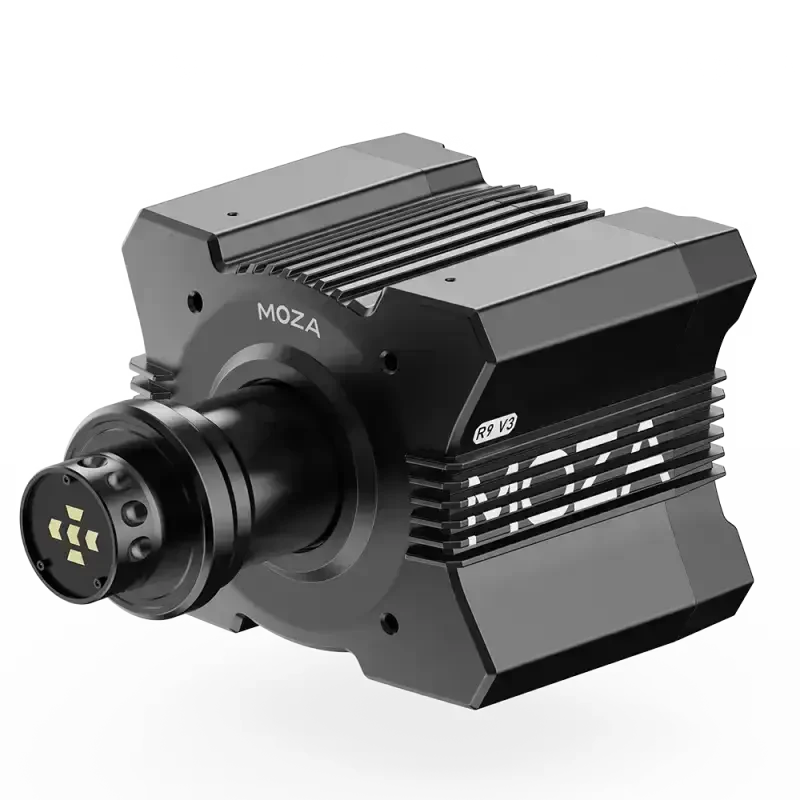

The MOZA R9 V3 Direct Drive Wheel Base produces 9 Nm peak torque and 180 W peak power through a high-performance 18-slot / 16-pole servo motor. Its 21-bit magnetic encoder resolves 2,097,152 steps per revolution and USB refresh is 1000 Hz. Intelligent temperature monitoring with active cooling manages longer sessions. The aviation-grade aluminum housing supports 90° to 2700° steering rotation, while dedicated ports cover power, pedals, emergency stop, USB, dashboard, shifter and handbrake.

Steering wheel

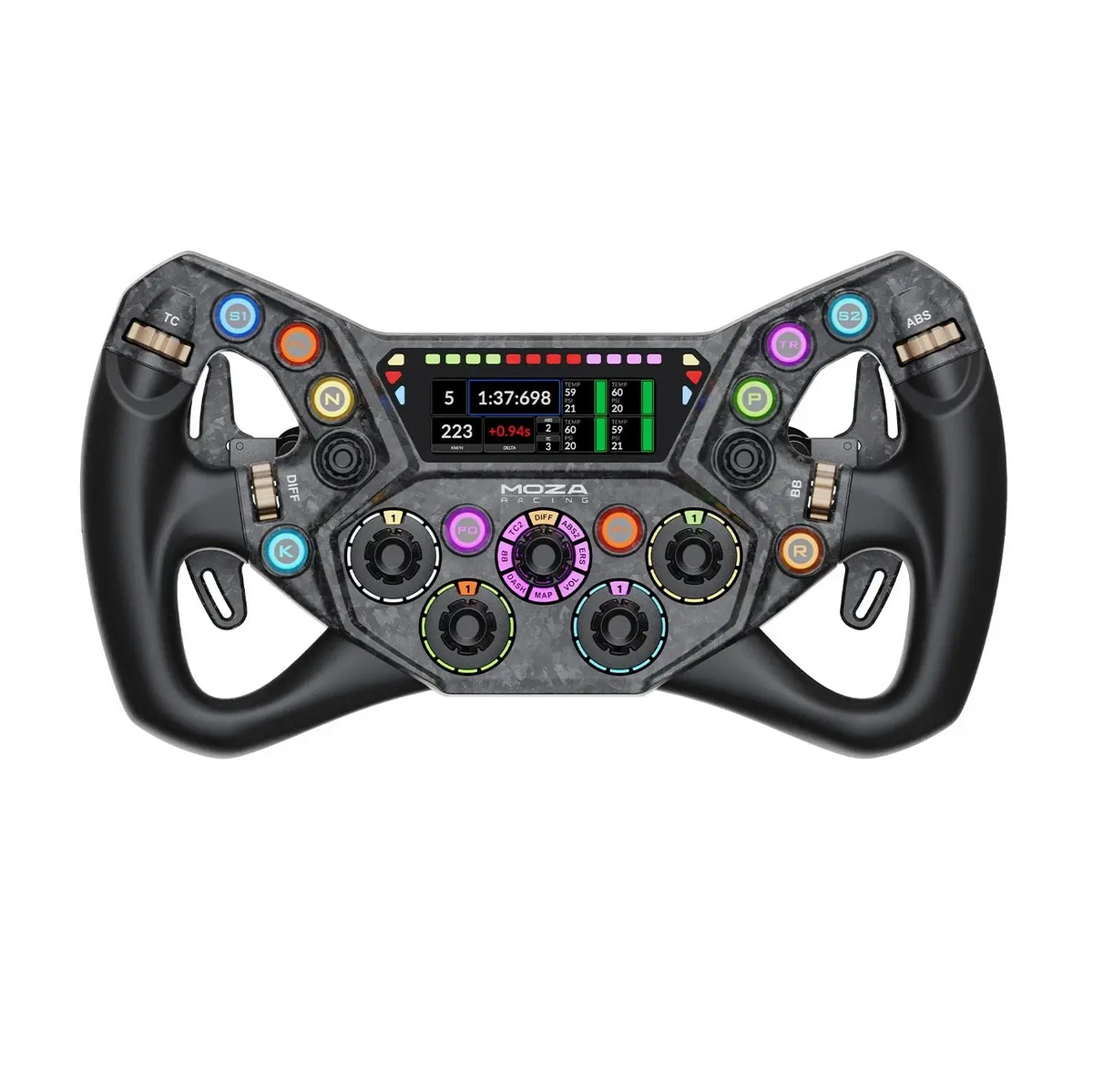

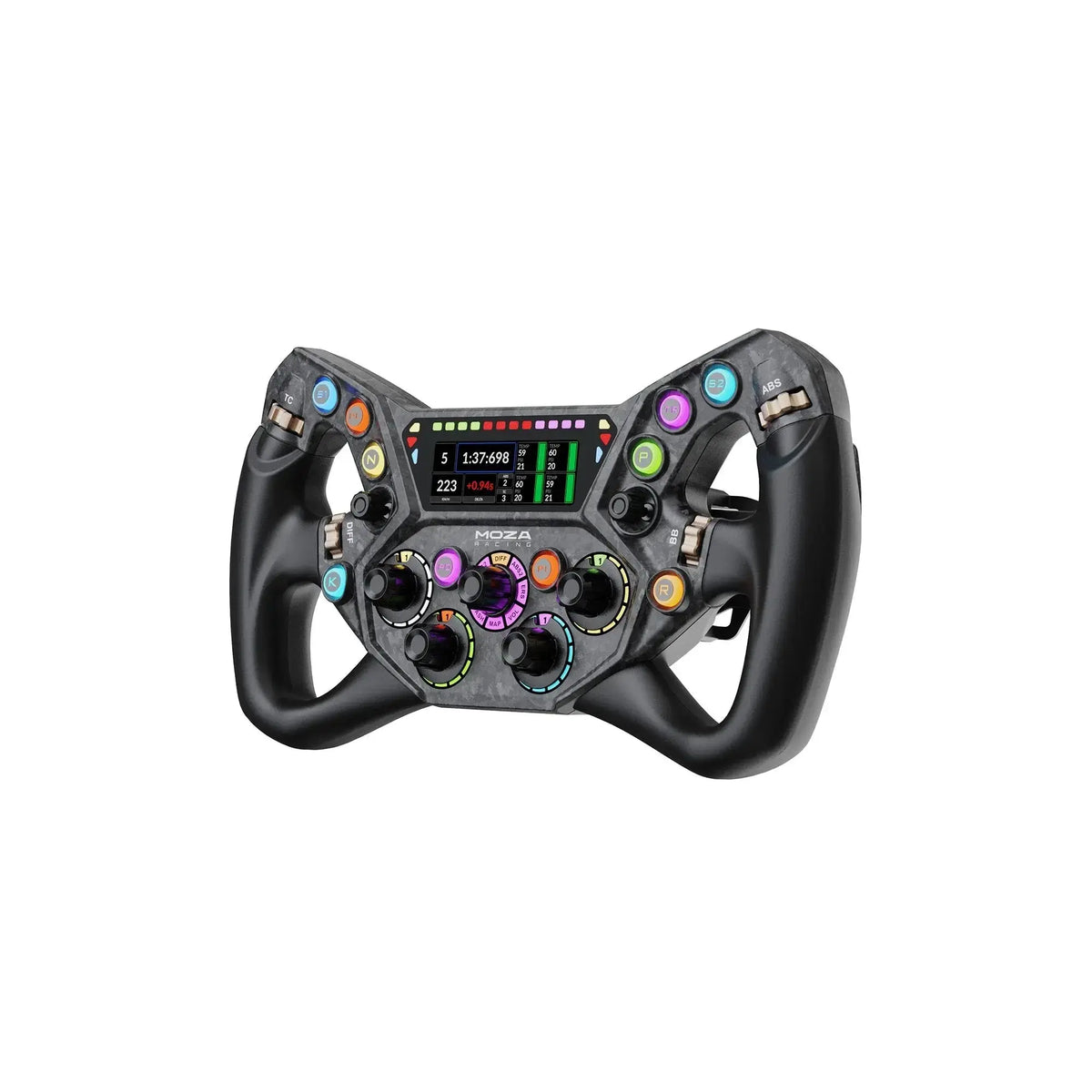

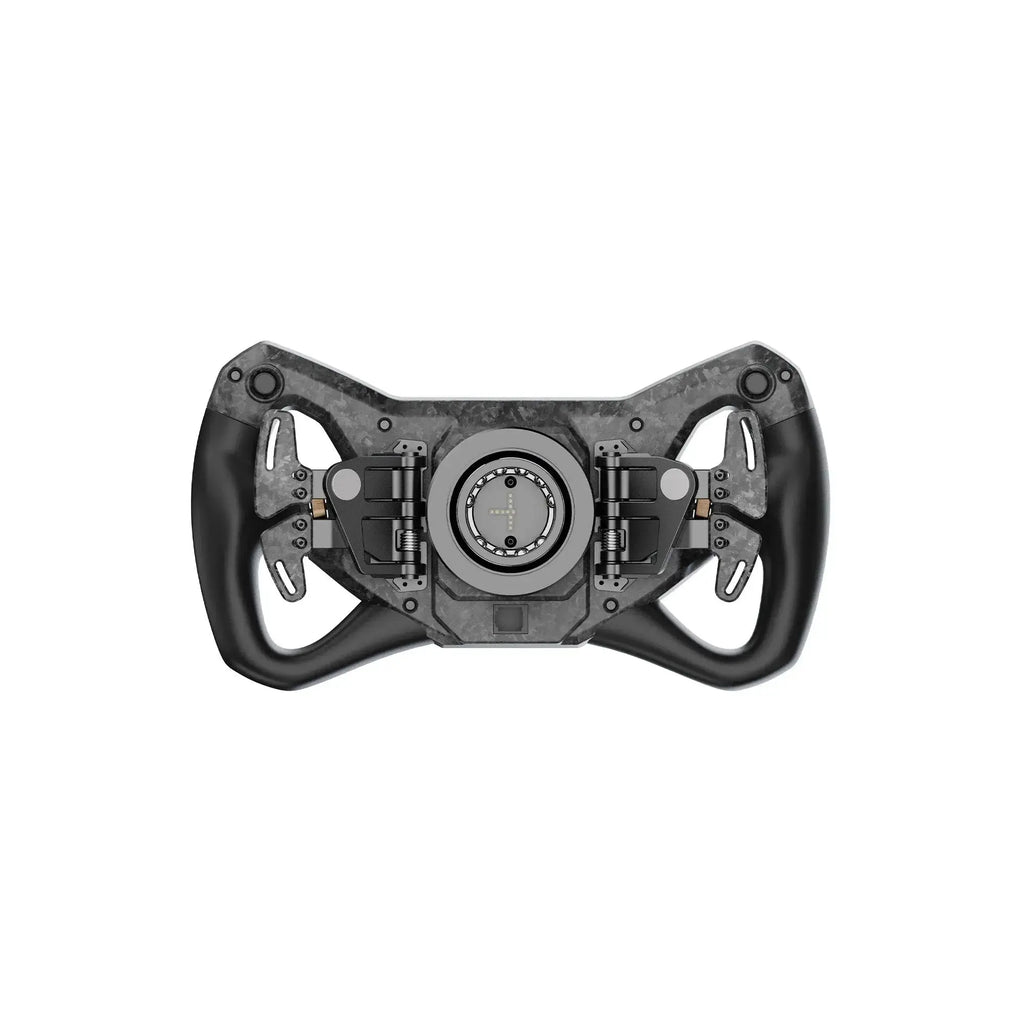

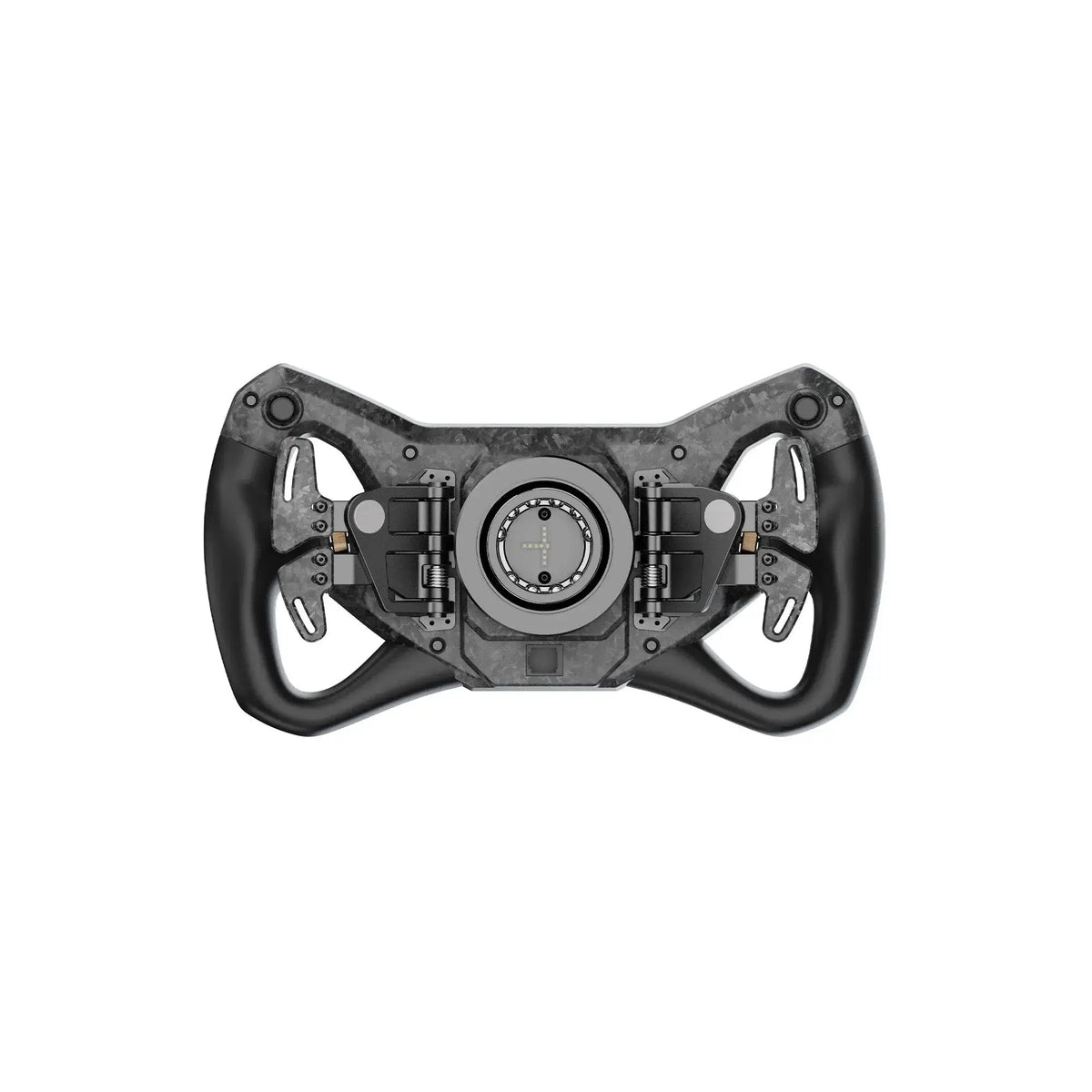

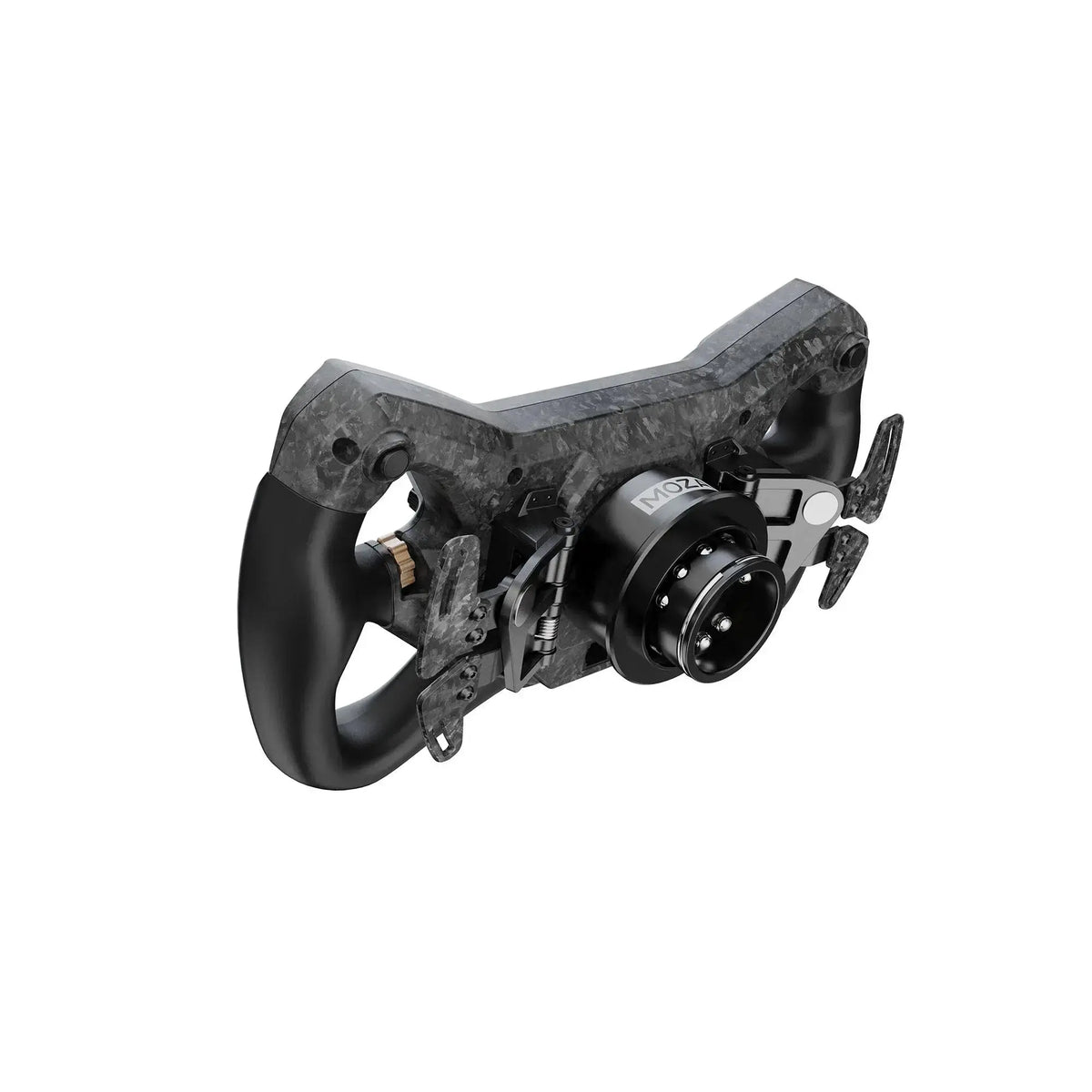

The MOZA Racing KS PRO Steering Wheel uses a 300 mm butterfly-style GT format with carbon-fiber-reinforced composite construction, a high-strength steel core and TPE soft-rubber grips. A 2.99-inch screen supports customizable dashboards. Ten RGB buttons, two rear buttons, five rotary encoders, two thumb encoders and two seven-way switches provide direct access to car settings. Twelve rev LEDs and six flag LEDs support telemetry, while forged-carbon Hall-sensor shifter and dual-clutch paddles handle shifting and clutch functions. The all-aluminum quick release connects directly to compatible MOZA bases.

Mounting and included hardware

The R9 V3 supports a standard four-hole bottom mount. MOZA also lists optional side mounting and a table clamp. The combined component packages provide the R9 power supply, USB cable and toolkit plus the KS Pro toolkit, stickers, manuals and warranty documentation. Pedals, shifter, handbrake, emergency-stop switch, cockpit hardware and the optional table clamp are not included.

Software and configuration

MOZA Pit House manages R9 V3 force-feedback strength, steering range, profiles and firmware. It also manages KS Pro dashboard layouts, RGB button colours, rev and flag LEDs, input mapping and paddle modes. This gives one software environment for both the base and the wheel when switching between different cars or racing disciplines.

Upgrade options

The R9 V3 includes dedicated ecosystem ports for compatible MOZA pedals, dashboard, shifter, handbrake and emergency stop. The KS Pro can also move to other current MOZA wheelbases using the same quick-release system. Optional controls and mounting accessories are separate from this bundle.

Product details

MOZA R9 V3 + KS Pro Steering Wheel Bundle

Compatibility

Platform: PC. The R9 V3 is specified as a PC wheel base in the exact V3 product data, and the KS Pro is compatible with current MOZA wheelbases. This bundle does not include a licensed console wheel.

Connection and ecosystem: The KS Pro connects through the all-aluminum MOZA quick release and conductive slip ring; the R9 V3 connects to the PC via USB.

Requirements: The included external power supply is required for the wheel base. A compatible mounting solution is also required; the optional table clamp and side-mount hardware are not included.

Specifications

What's in the box?

• MOZA R9 V3 DD wheel base × 1
• R9 power supply / adapter
• USB cable
• R9 toolkit
• MOZA KS Pro GT wheel × 1
• KS Pro toolkit
• MOZA stickers
• User manuals
• Warranty cards

Frequently asked questions

Is the R9 V3 + KS Pro bundle compatible with consoles?

This exact configuration is for PC. The KS Pro is not a licensed Xbox wheel, and PlayStation support is not claimed for the bundle.

Can the R9 V3 be desk mounted?

MOZA lists an optional table clamp and optional side mounting in addition to the standard four-hole bottom mount. The table clamp is not included.

What can the KS Pro display show?

The 2.99-inch display supports customizable dashboard layouts through MOZA Pit House. The software also controls RGB buttons, rev lights, flag lights and telemetry behaviour.

Does the bundle include a power supply?

Yes. The R9 V3 package includes the external power supply and USB cable required for normal base operation.

Can I add pedals, a shifter or handbrake later?

Yes. The R9 V3 provides dedicated ports for compatible MOZA pedals, shifter and handbrake hardware. Those controls are optional and are not included in this bundle.
