MOZA R12 V2 + KS Pro Steering Wheel Bundle
MOZA R12 V2 + KS Pro Steering Wheel Bundle
Matches cover the recorded checks shown here. Bare-frame dimensions exclude the seat, monitors, motion and access space. Mounts, adapters and game support still apply.
Request my free setup checkProduct information

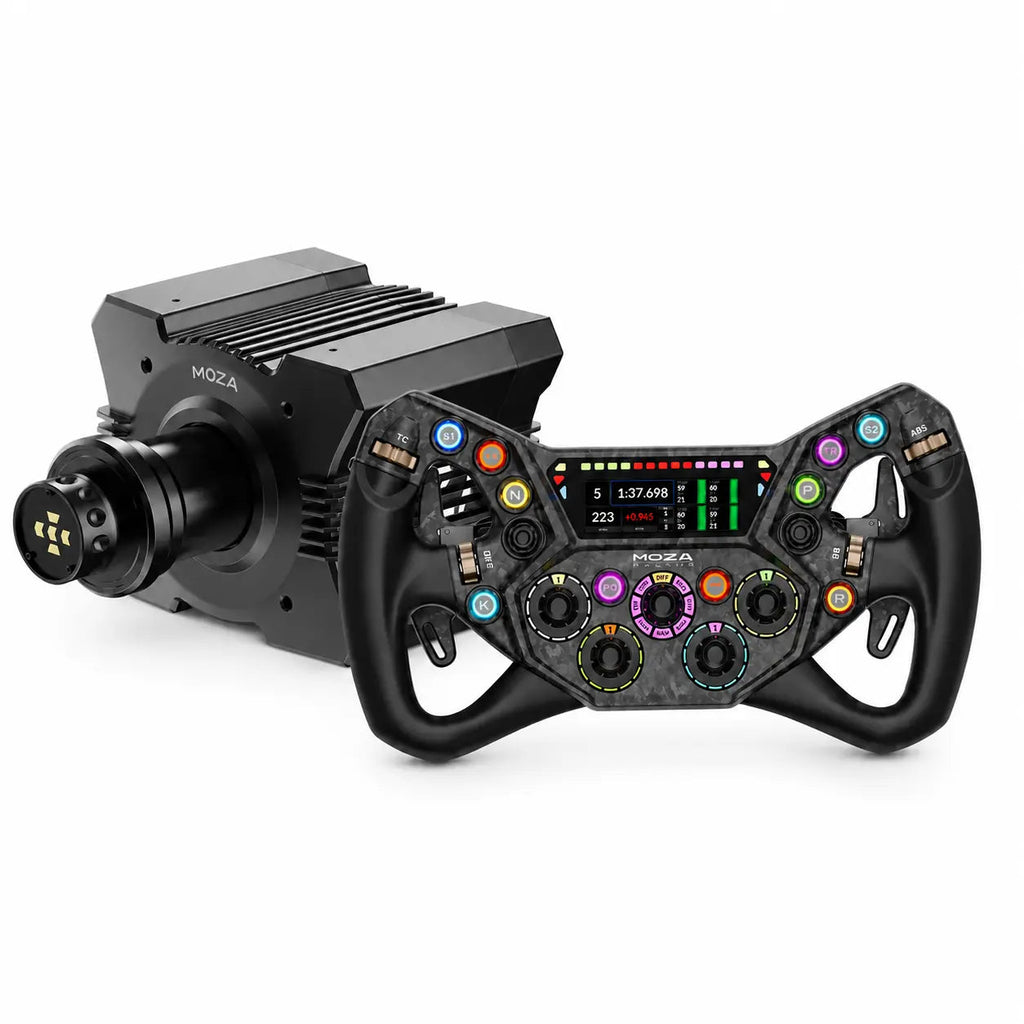

The MOZA R12 V2 + KS Pro Steering Wheel Bundle combines a compact 12 Nm direct-drive base with a control-dense GT and formula-style steering wheel. The R12 V2 supplies detailed force feedback through its upgraded 21-bit magnetic encoder and carbon-fibre-wrapped rotor, while the KS Pro adds a 2.99-inch HD display, programmable inputs and RGB telemetry. The package is designed for a rigid PC cockpit or wheel deck.
Key features
- The R12 V2 combines 12 Nm direct drive with 21-bit steering resolution, front-mount support and a carbon-fibre-wrapped rotor.
- The 300 mm KS Pro adds an HD display, RGB telemetry and extensive controls for GT, prototype and formula-style racing.
Bundle components

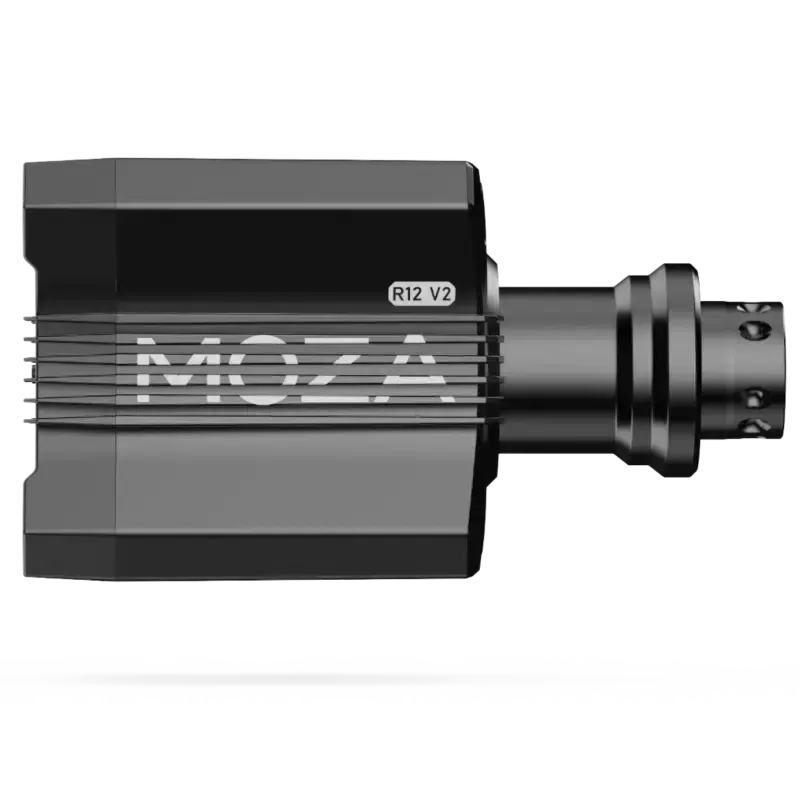

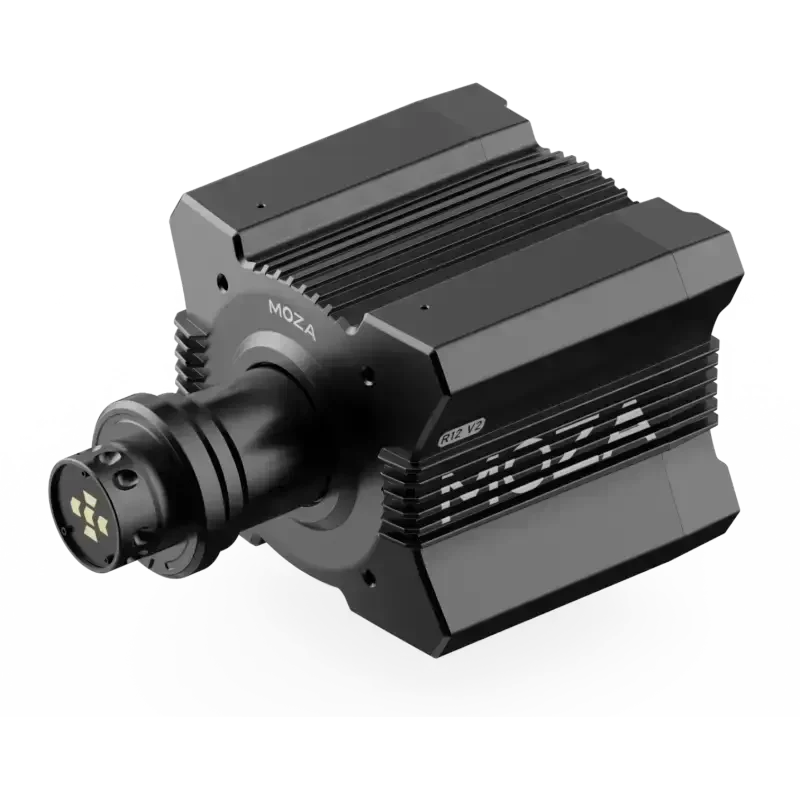

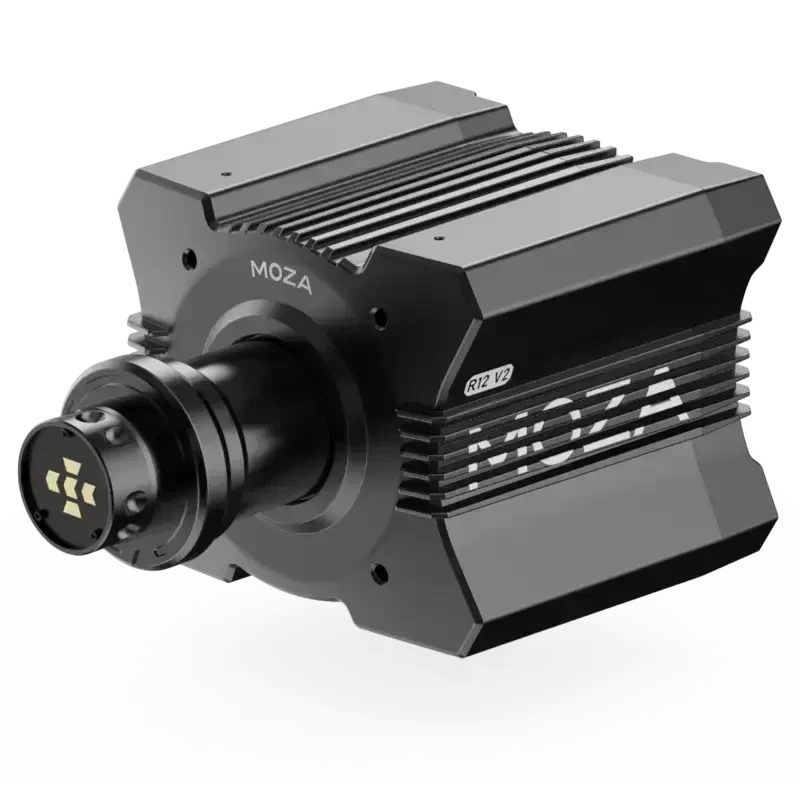

R12 V2 wheelbase
The included MOZA R12 Direct Drive Wheel Base V2 delivers 12 Nm peak torque. Its 21-bit magnetic encoder provides 2,097,152 positions per revolution, while the V2 carbon-fibre-wrapped rotor improves thermal efficiency. The aluminium housing supports four-hole bottom mounting and adds front-mount holes.

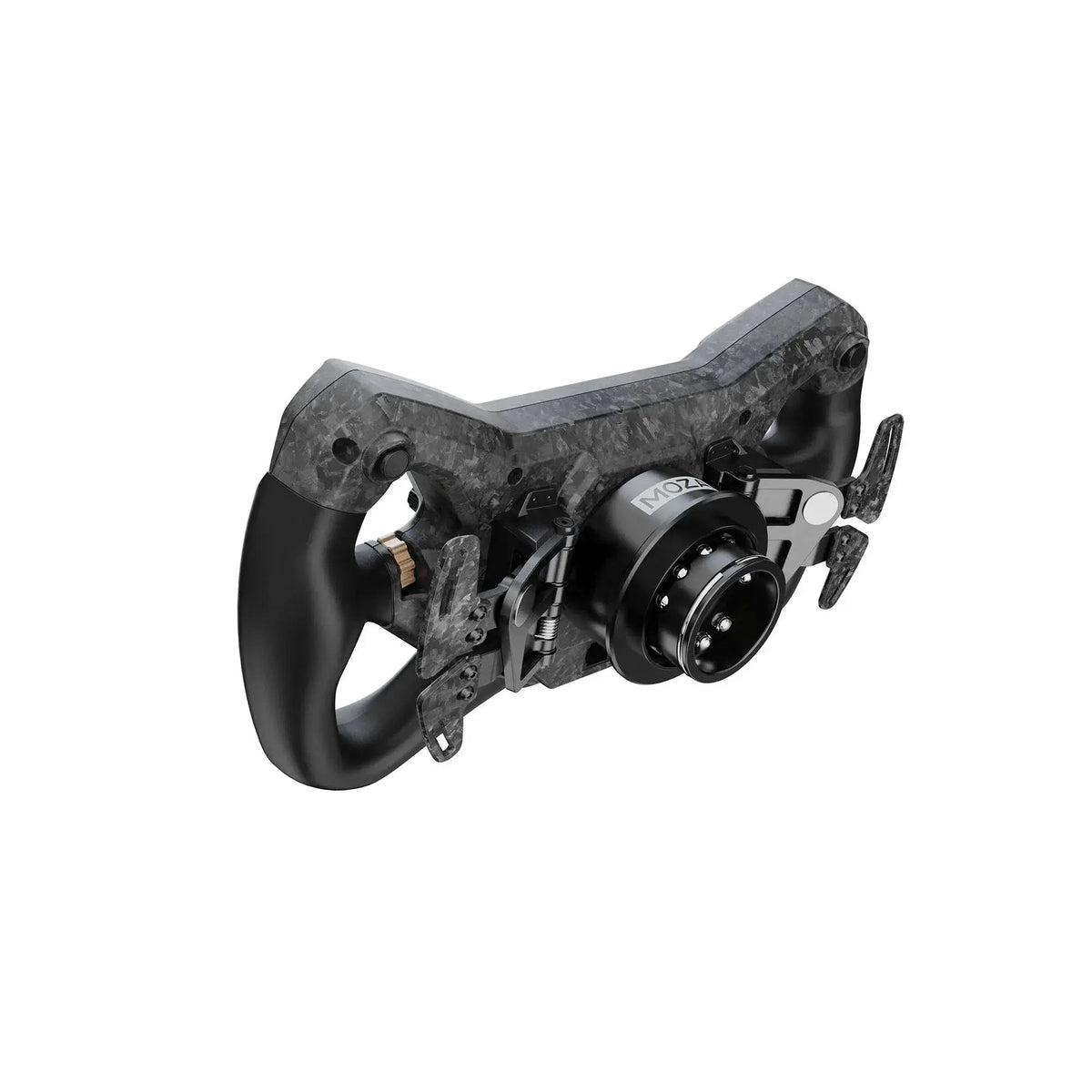

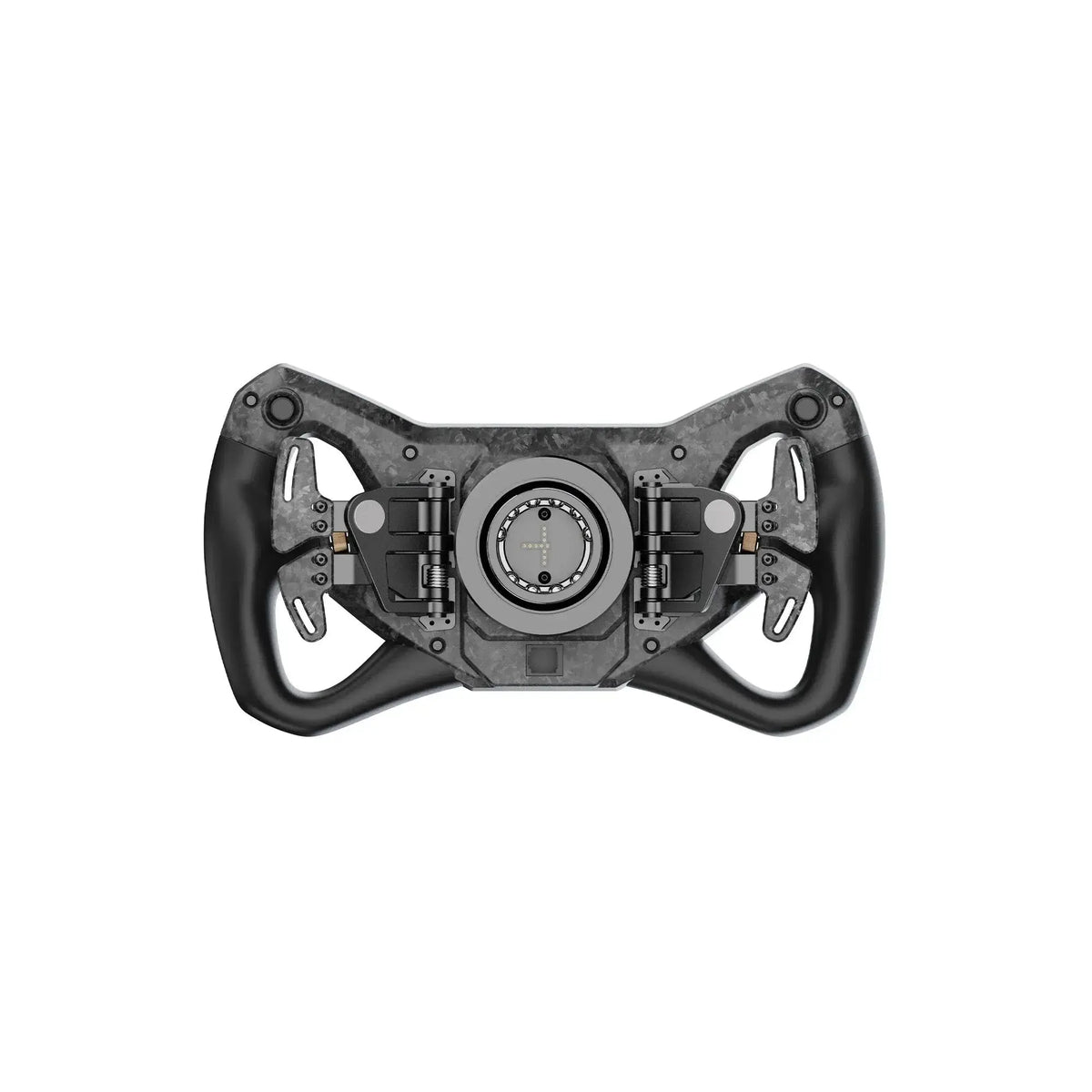

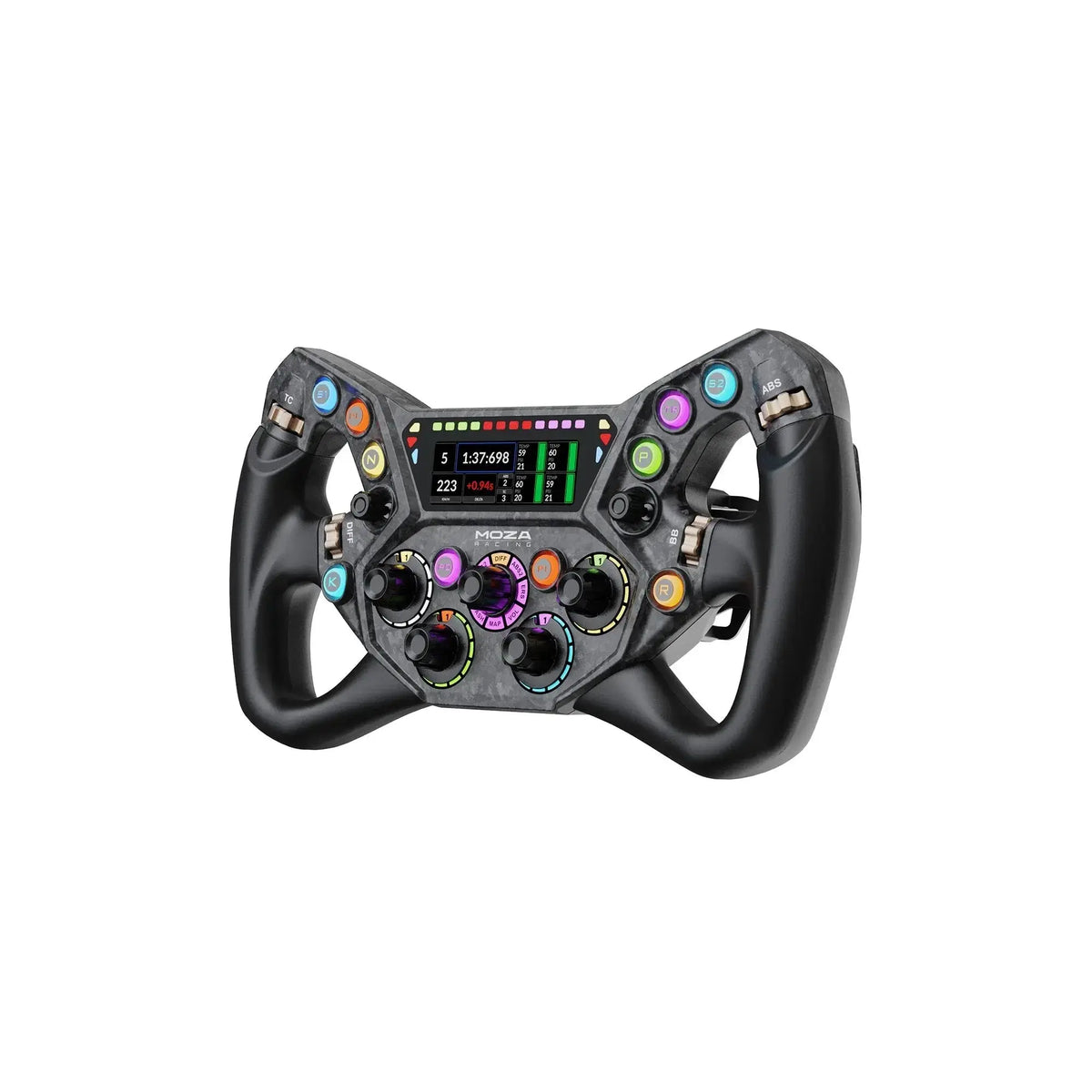

KS Pro steering wheel

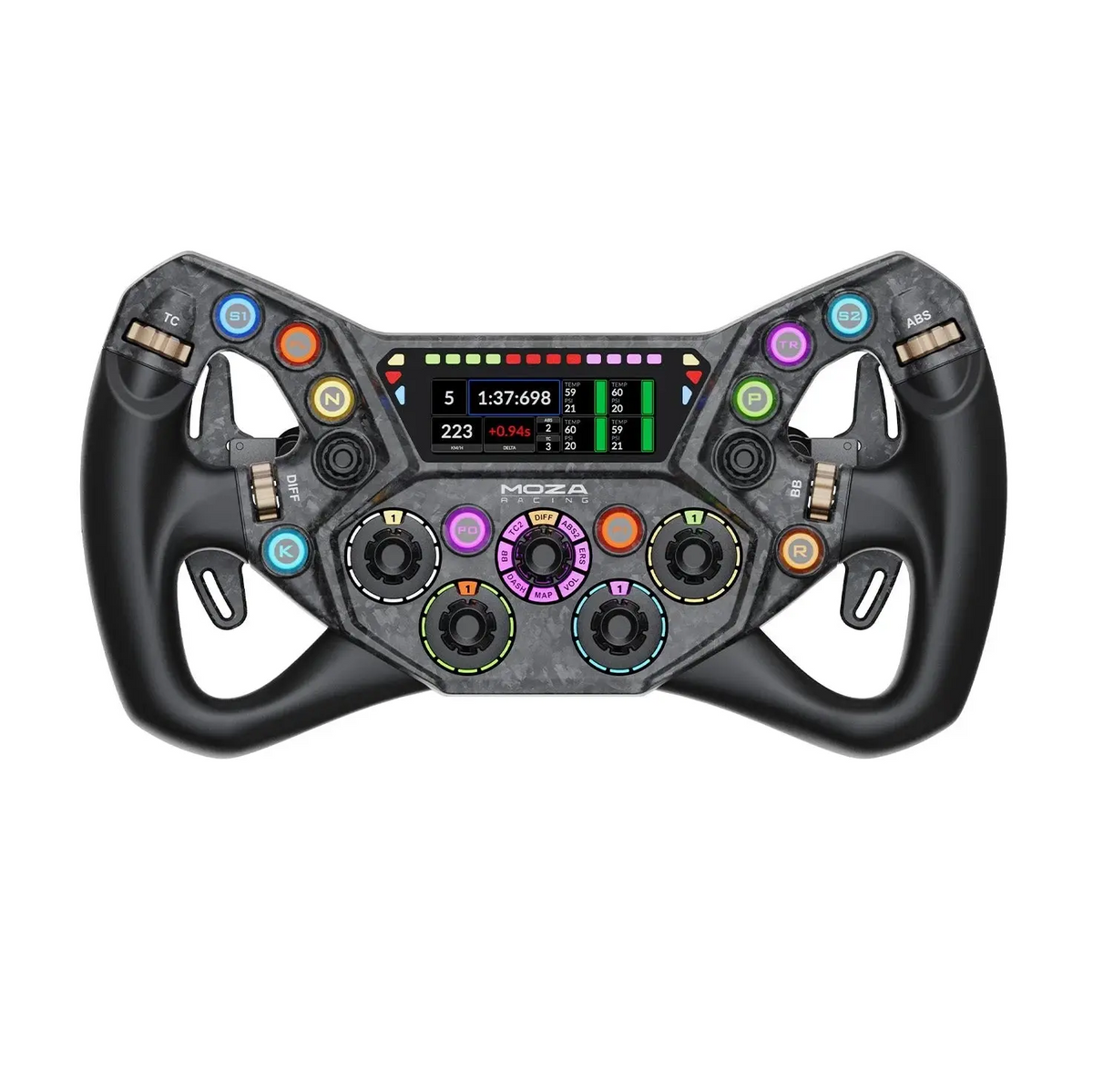

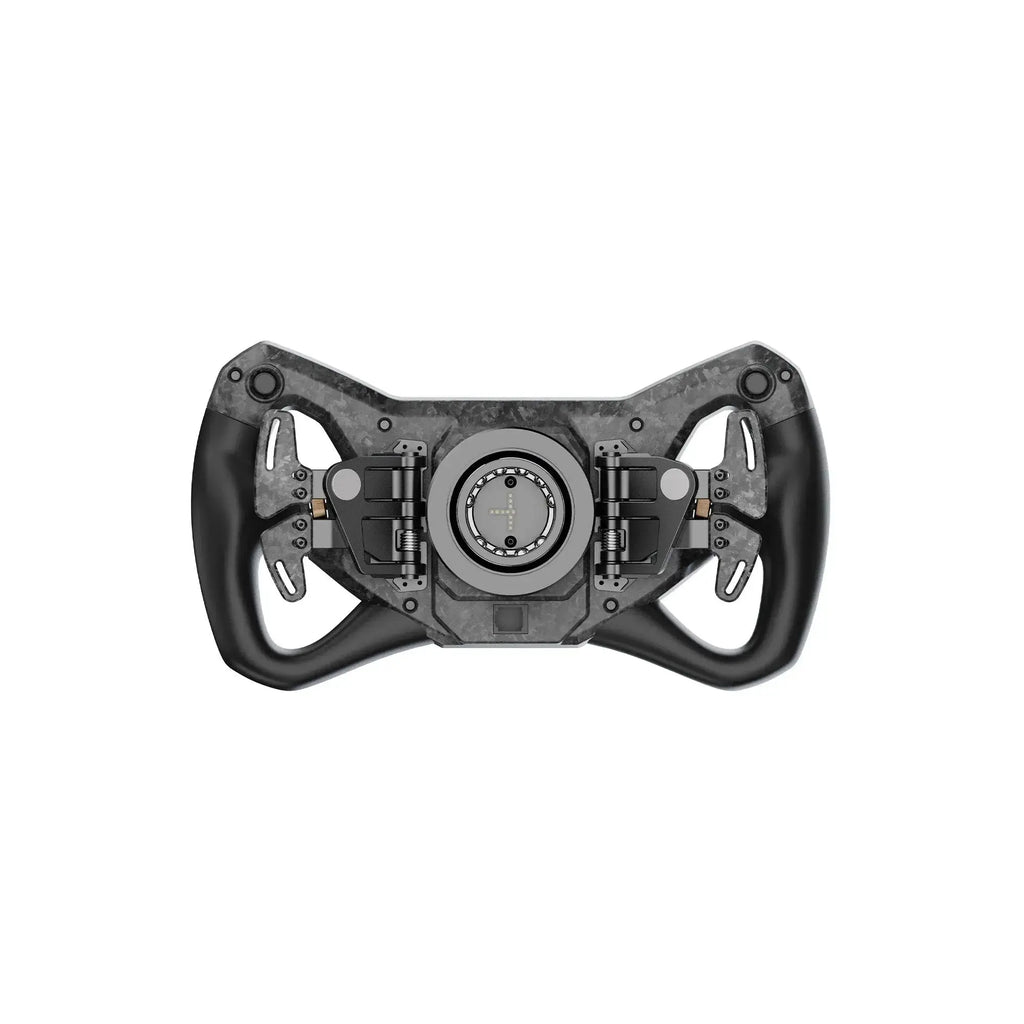

The included MOZA KS Pro Steering Wheel uses a 300 mm butterfly-style format with carbon-fibre-reinforced construction and TPE grips. A customizable 2.99-inch HD display is supported by RGB shift and flag lighting. Programmable buttons, encoders, funky switches, magnetic shifters and dual-clutch paddles provide a broad control layout.
Connections and power

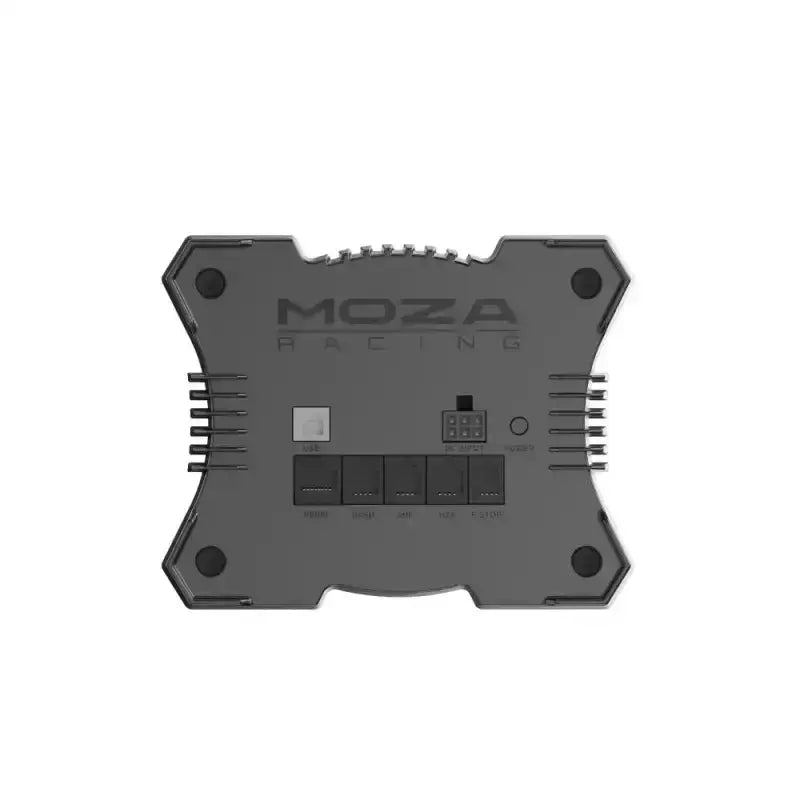

The R12 V2 requires its 216 W adapter and connects to the PC by USB. Rear ports support MOZA pedals, dashboard, shifter, handbrake and optional emergency-stop hardware. The KS Pro attaches through the MOZA quick release and receives communication through the current-generation base connection.
Mounting and software
A rigid cockpit, wheel deck or compatible front-mount bracket is recommended. A desk clamp is optional and not included. MOZA Pit House manages firmware, steering angle, force-feedback settings, display dashboards, button assignments and RGB telemetry.
Upgrade options
Pedals are not included. The verified MOZA CRP2 Load Cell Pedals provide a compatible direct-USB pedal option for PC use. Shifters, handbrakes, dashboard hardware and mounting parts are sold separately.
Force-feedback use and driving position
Twelve newton metres is sufficient to reproduce sustained steering load, kerb impacts and rapid weight transfer with meaningful reserve, so the base should be installed on a rigid wheel deck rather than a flexible desktop. The KS Pro has a compact 300 mm format that keeps the display and controls close to the driver while preserving fast steering response. For endurance sessions, the wheelbase strength, steering angle and damping should be tuned to the simulated vehicle instead of using maximum output for every car. MOZA Pit House profiles can store different settings for GT, prototype and formula-style vehicles, while the display layout and telemetry lighting can be adjusted separately.
Product details
MOZA R12 V2 + KS Pro Steering Wheel Bundle
Compatibility
Platform: Windows PC.
Steering-wheel connection: the KS Pro is designed for current conductive-connection MOZA bases, including the R12 V2.
Requirements: a rigid mounting surface and mains power; pedals and cockpit hardware are not included.
Specifications
Platform PC Drive system Direct drive Peak torque 12 Nm Wheelbase encoder 21-bit / 2,097,152 PPR Wheel rotation 90–2700° Wheelbase power 216 W USB refresh rate 1000 Hz Wheelbase housing Aviation-grade aluminium Steering-wheel size 300 mm Wheel style Butterfly GT wheel Display 2.99-inch HD screen Software MOZA Pit HouseWhat's in the box?
- MOZA R12 V2 Direct Drive Wheel Base × 1
- MOZA KS Pro Steering Wheel × 1
- Power adapter and power cable
- USB data cable
- Wheelbase toolkit and mounting hardware
- Product documentation
Frequently asked questions
Does the bundle include pedals?
No. It contains the R12 V2 and KS Pro; pedals are selected separately.
What is different about the R12 V2?
It uses a 21-bit magnetic encoder, carbon-fibre-wrapped rotor and front-mount holes while retaining 12 Nm peak torque.
Can the R12 V2 be front-mounted?
Yes. The V2 adds front-mount holes in addition to four-hole bottom mounting.
What can be configured on the KS Pro display?
MOZA Pit House supports compatible dashboards, telemetry lighting, controls and firmware.
Is it suitable for GT and formula racing?
Yes. The 300 mm butterfly-style wheel and control layout are designed for GT, prototype and formula simulations.
Will it work with my setup?
Check the supported platform, connections, mounting dimensions and included items for this exact product. Use our compatibility checklist before combining components. Not sure? Send us your current hardware and the product you are considering.
