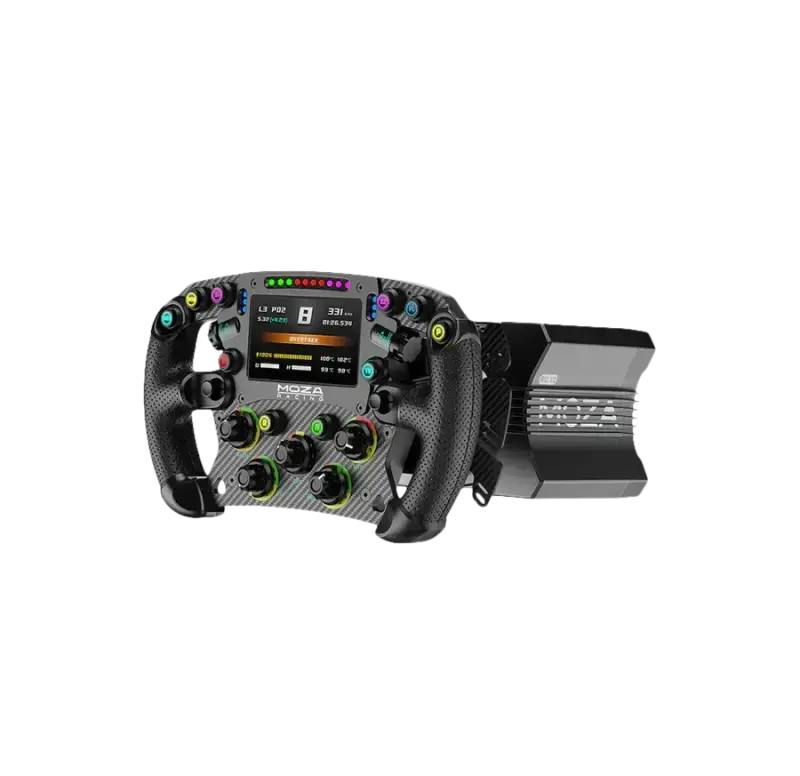

MOZA R12 V2 + FSR2 Steering Wheel Bundle

The MOZA R12 V2 + FSR2 Steering Wheel Bundle combines a 12 Nm direct-drive wheel base with MOZA’s 280 mm formula-style FSR2 wheel. The base contributes a 21-bit magnetic encoder and 1000 Hz USB refresh rate, while the FSR2 adds a 4.3-inch touchscreen, RGB signal lighting and a six-paddle control layout. Both parts are configured through MOZA Pit House for a focused PC setup built around formula and open-wheel controls.

Key features

• The R12 V2 delivers 12 Nm direct drive with a 21-bit magnetic encoder, combining strong force feedback with fine steering resolution and adjustable rotation.
• The FSR2 places a customizable 4.3-inch touchscreen, telemetry LEDs and six paddles on a 280 mm carbon-fiber formula wheel for dense race control.

Bundle components

Wheel base

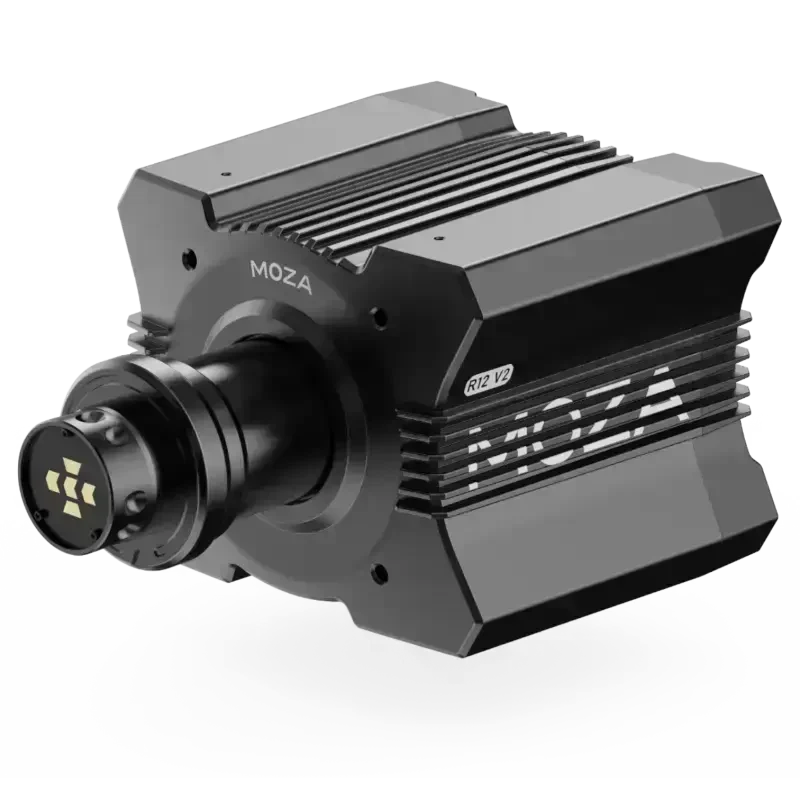

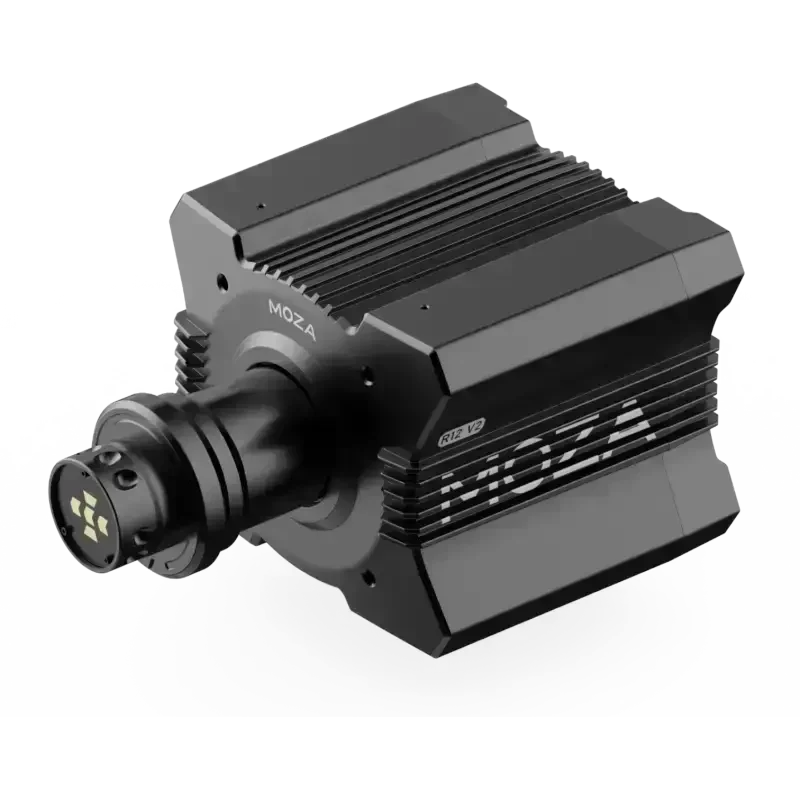

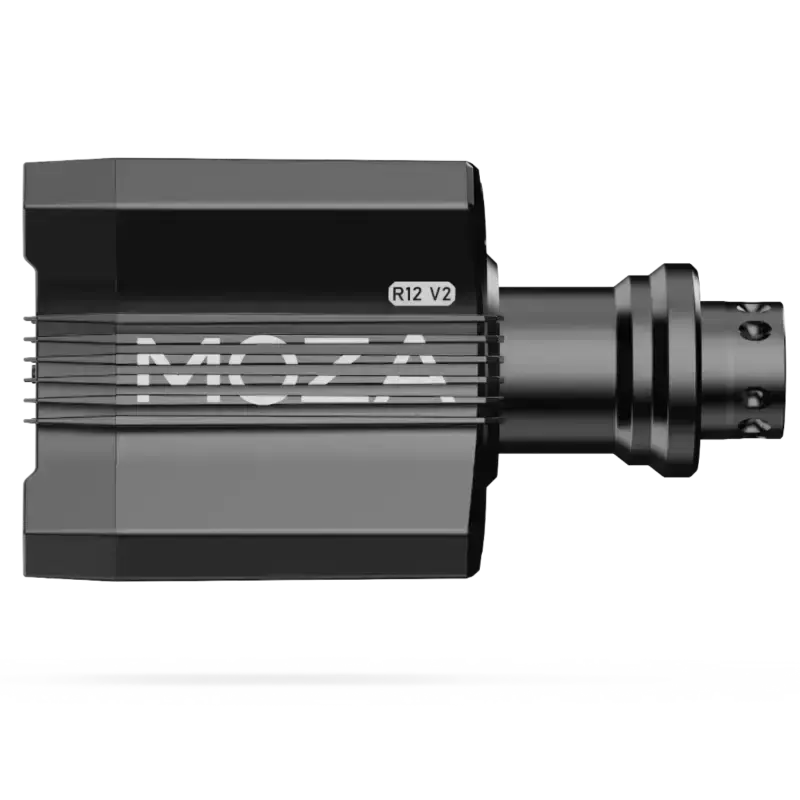

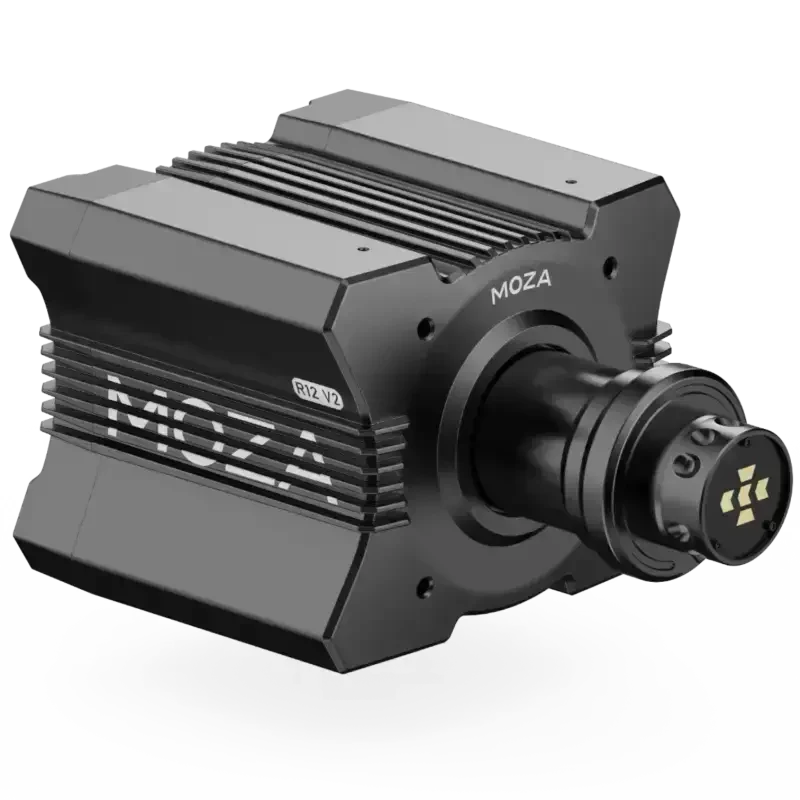

The MOZA Racing R12 Direct Drive Wheel Base - V2 supplies 12 Nm peak torque through its direct-drive motor and uses a 21-bit magnetic encoder with 2,097,152 steps per revolution. USB refresh is 1000 Hz and steering rotation can be configured from 90° to 2700°. The aviation-grade aluminum housing encloses the V2 carbon-fiber-wrapped rotor, with intelligent thermal management supporting consistent operation. Ports are provided for power, USB, pedals, dashboard, shifter, handbrake and an optional emergency-stop switch.

Steering wheel

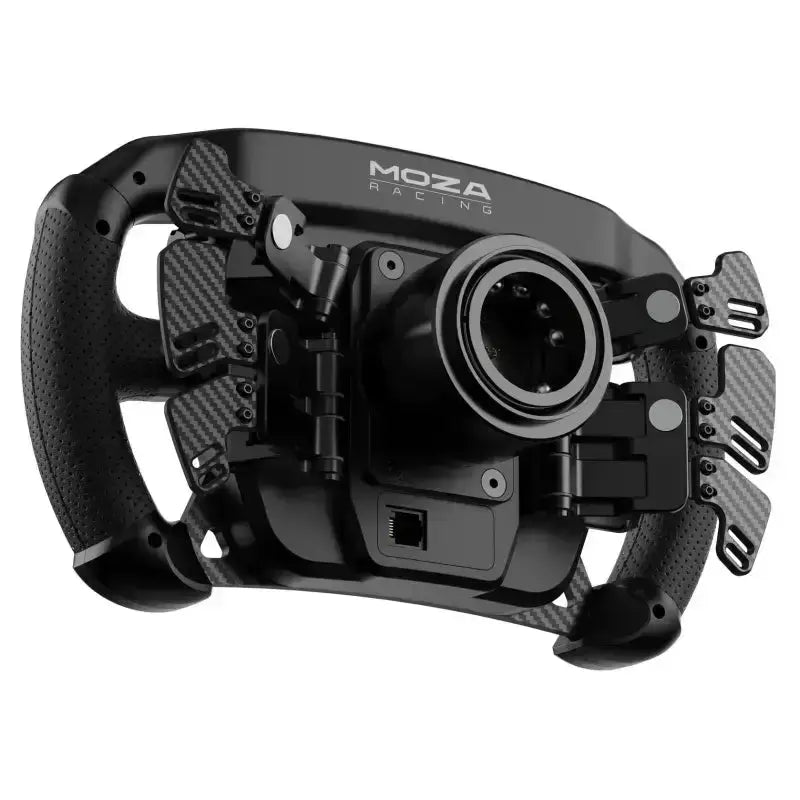

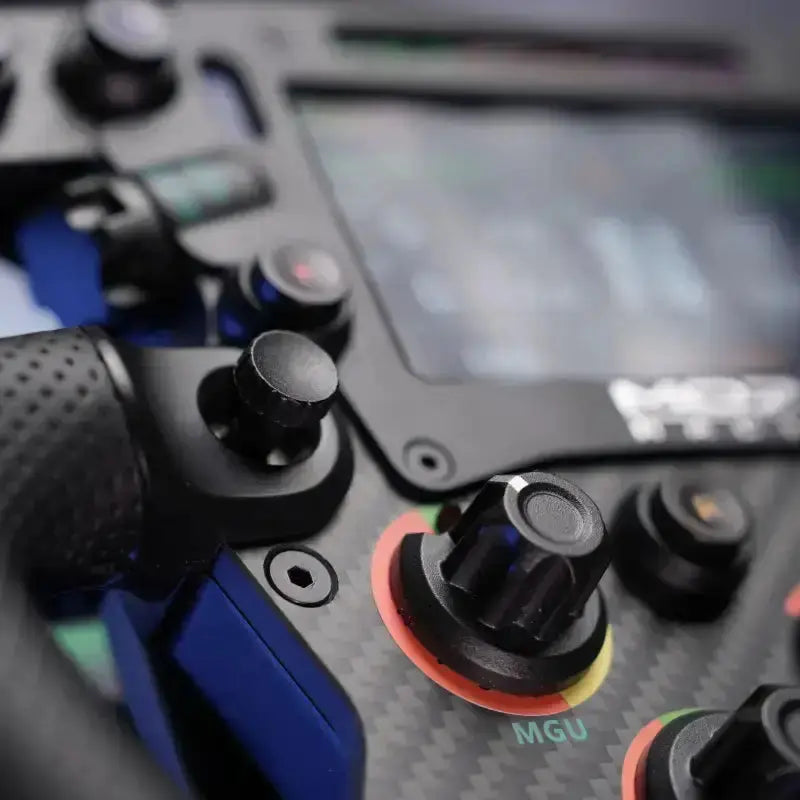

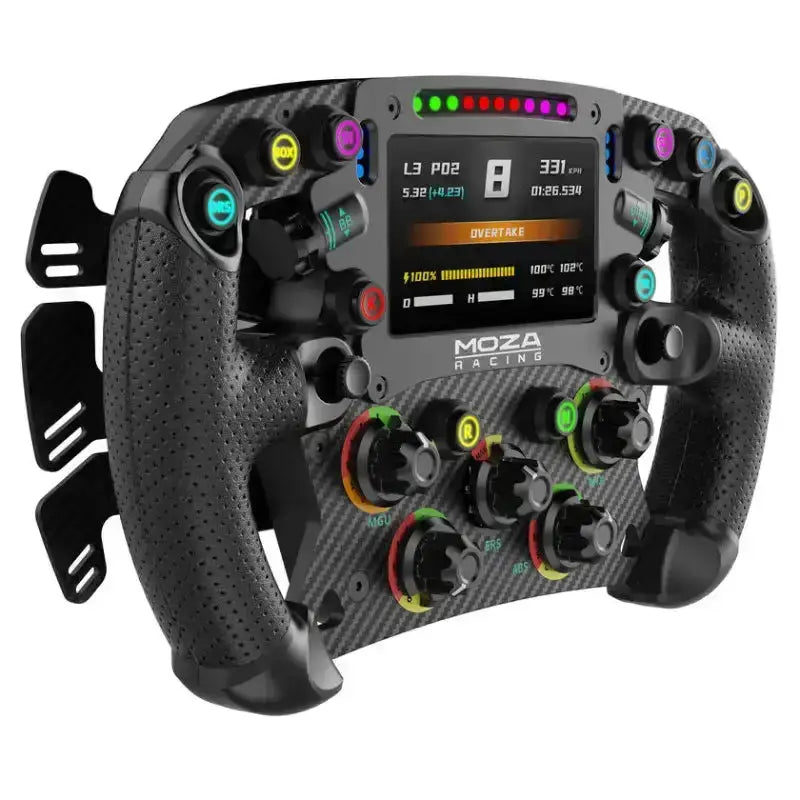

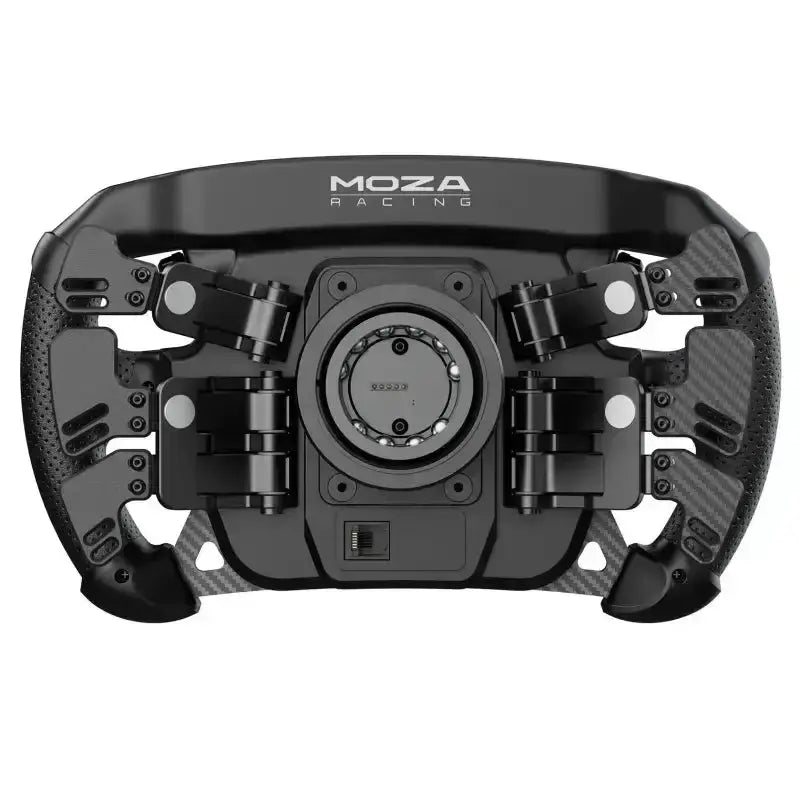

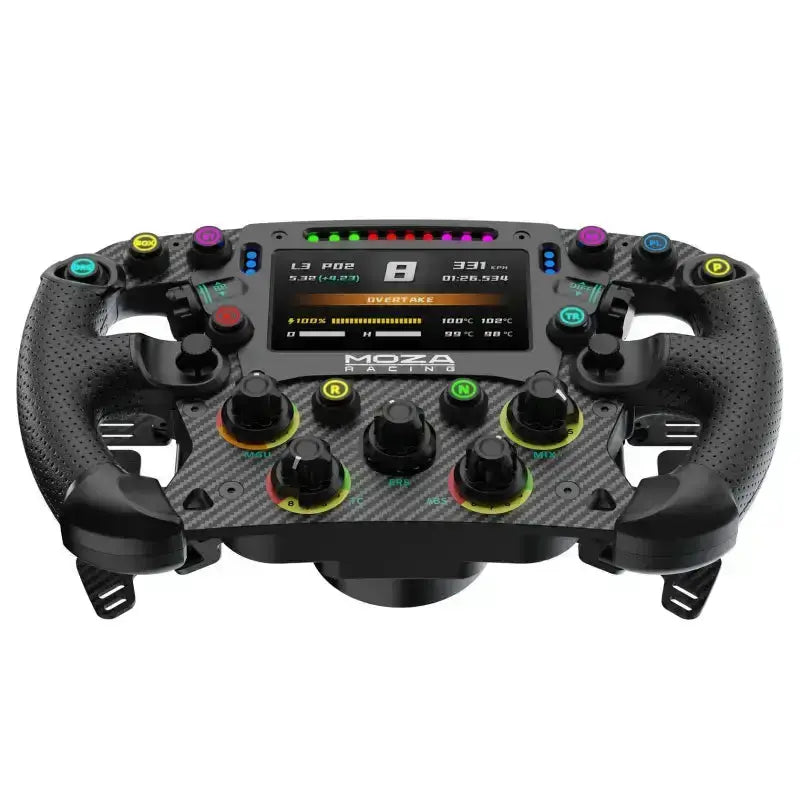

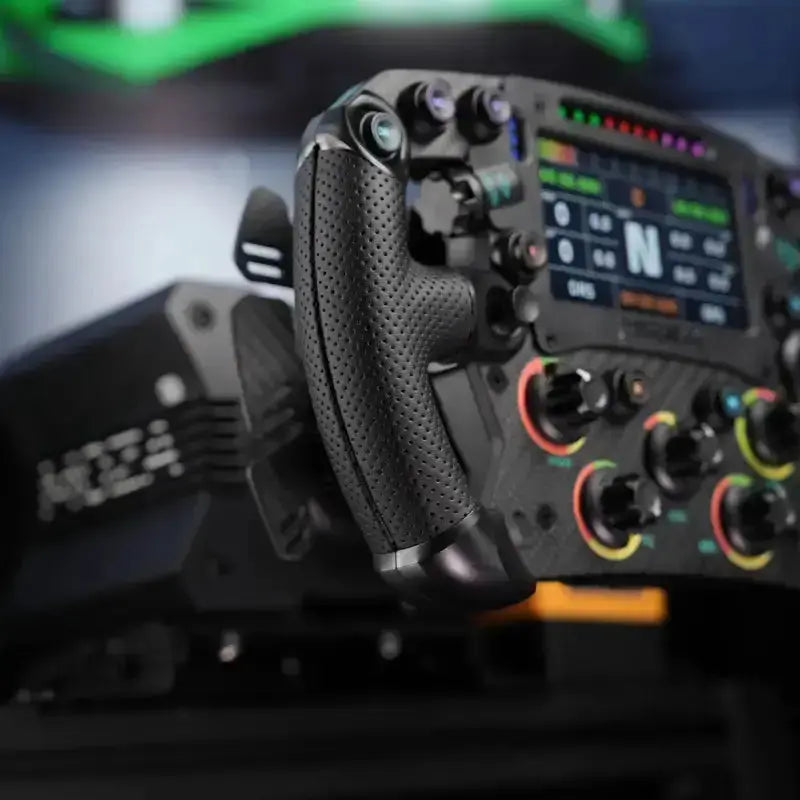

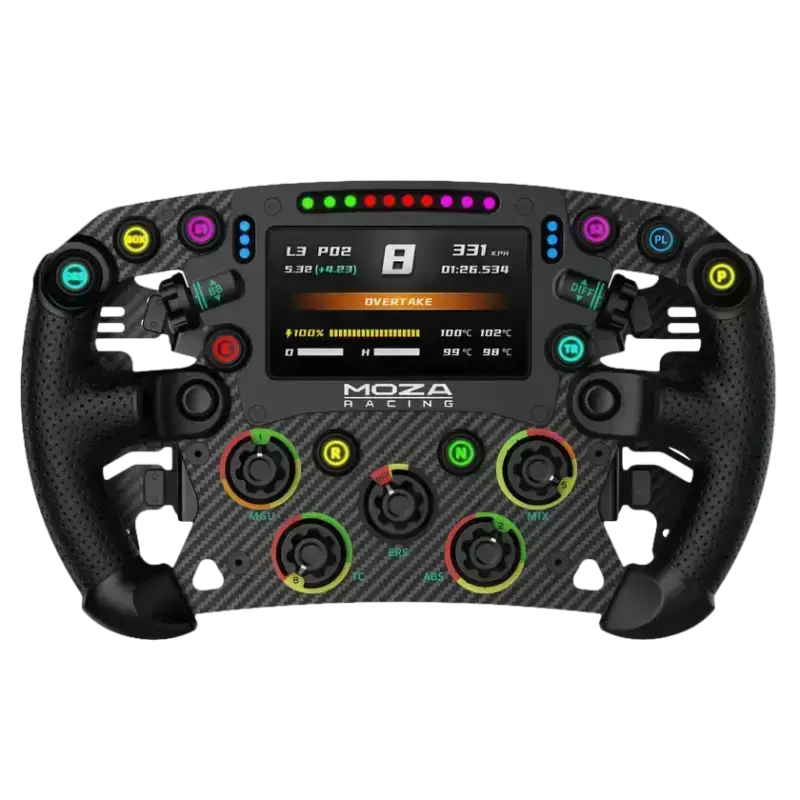

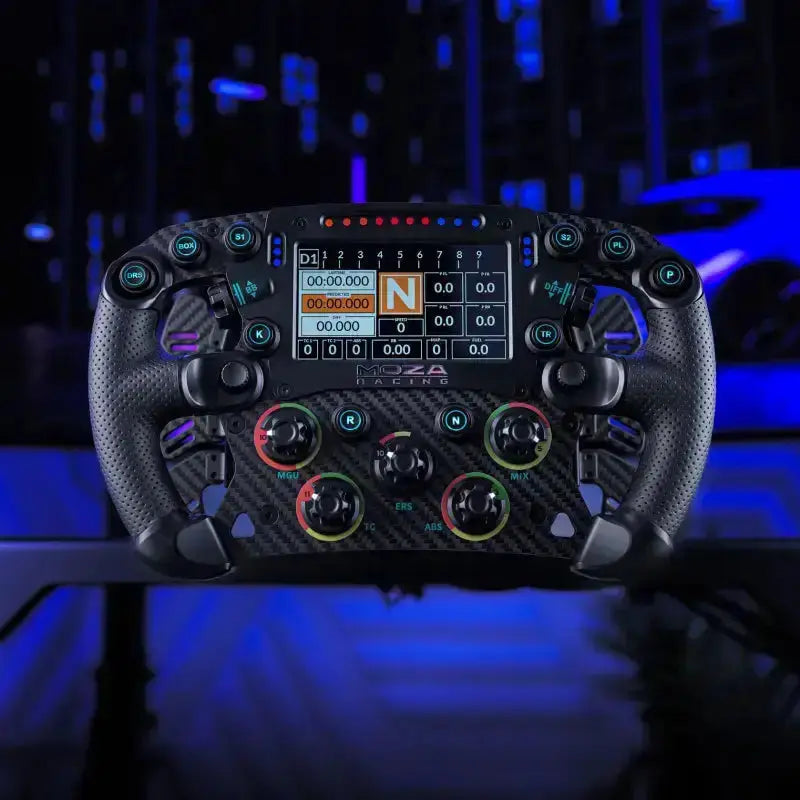

The MOZA Racing FSR2 steering wheel is a 280 mm formula-style wheel with a 5 mm 3K twill carbon-fiber face plate, aerospace-grade aluminum back plate and perforated microfiber leather grips. Its 4.3-inch touchscreen runs at 480p and 60 Hz with 16.7 million colours and a customizable dashboard interface. Ten backlit buttons, two rotary encoders, three thumb encoders and two seven-way switches provide direct controls. The six-paddle layout uses Hall-sensor magnetic carbon paddles for shifting, dual clutch and programmable functions, while RGB flag and rev LEDs display telemetry.

Mounting and included hardware

The R12 V2 supports a four-hole bottom mount and V2 front-mount holes, while MOZA lists a table clamp as optional. The FSR2 locks to the base using the all-aluminum MOZA quick release. The bundle includes the base, wheel, power adapter, data cable, toolkit, user manual and warranty card. Pedals, cockpit or desk mounting, shifter, handbrake and emergency-stop hardware are not included.

Software and configuration

MOZA Pit House manages R12 V2 force-feedback profiles, steering angle and firmware. For the FSR2, it also supports dashboard selection and customization, RPM and signal-light behaviour, control mapping and telemetry functions. This allows the display, paddles and force-feedback system to be configured together for different cars and simulations.

Upgrade options

The R12 V2 provides ports for compatible MOZA pedals, dashboard, shifter, handbrake and emergency-stop hardware. These upgrades are optional. The FSR2 is designed to work with MOZA wheelbases through the quick release; this bundle pairs it directly with the R12 V2 and does not require a third-party hub.

Product details

MOZA R12 V2 + FSR2 Steering Wheel Bundle

Compatibility

Platform: PC. MOZA specifies the exact R12 V2 + FSR2 bundle for PC.

Connection and ecosystem: The FSR2 connects to the R12 V2 through the MOZA quick release and conductive slip-ring interface; the base connects to the PC by USB.

Requirements: A compatible base mounting solution is required. The power adapter and data cable are included; pedals, table clamp and other ecosystem accessories are not included.

Specifications

What's in the box?

• MOZA R12 V2 DD wheel base × 1
• MOZA FSR2 Formula Wheel × 1
• Power adapter
• Data cable
• Toolkit
• User manual
• Warranty card

Frequently asked questions

Is the R12 V2 + FSR2 bundle compatible with consoles?

MOZA specifies this exact R12 V2 + FSR2 combination for PC. PlayStation support is not claimed, and the FSR2 does not provide a licensed Xbox function for this bundle.

Can the FSR2 dashboard be customized?

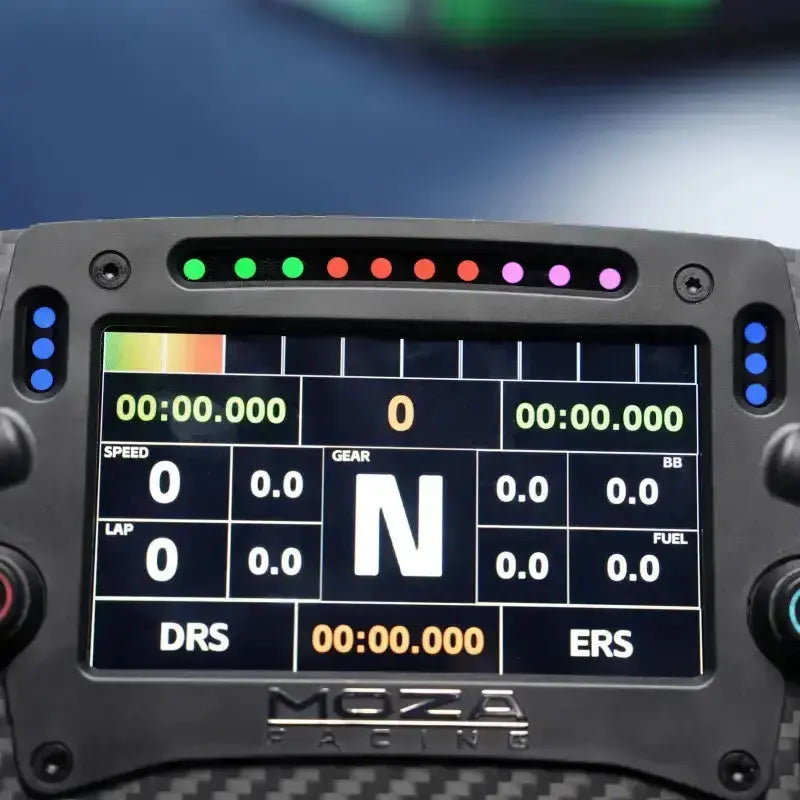

Yes. MOZA Pit House supports selectable and custom dashboard layouts for the 4.3-inch touchscreen, along with telemetry-driven lighting and control configuration.

How is the R12 V2 mounted?

The base supports a four-hole bottom mount and V2 front-mount holes. MOZA also lists a table clamp as optional; mounting accessories outside the standard bundle contents are not included.

What does the six-paddle layout do?

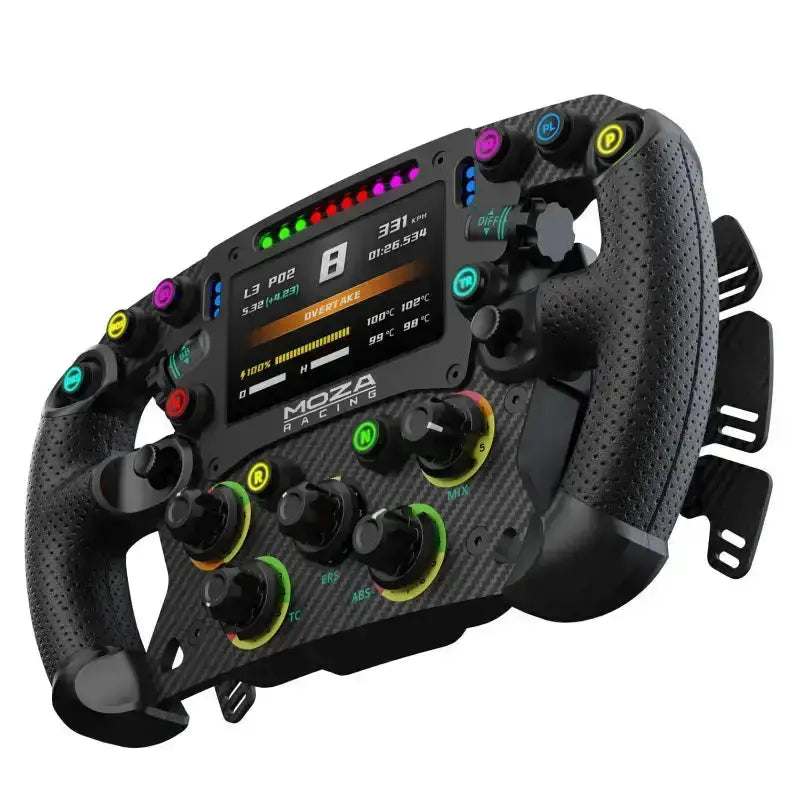

The FSR2 combines shift paddles, dual-clutch paddles and additional programmable paddles. MOZA describes the extra controls for functions such as DRS, KERS or other assignable vehicle systems.

Are pedals included?

No. The standard bundle contains the R12 V2 base, FSR2 wheel, power and data hardware, toolkit and documentation. Pedals and other driving controls are separate additions.
