MOZA Pedal Haptic Feedback Kit

Bring detailed vehicle feedback directly to your pedals with the MOZA Pedal Haptic Feedback Kit. The kit combines one PHF haptic module with the required Control Box for configurable 0–100 Hz feedback.

Key features

• Customizable 0–100 Hz haptic feedback for effects such as ABS, traction control, engine RPM, wheel lock-up, wheel slip and gear shifts.

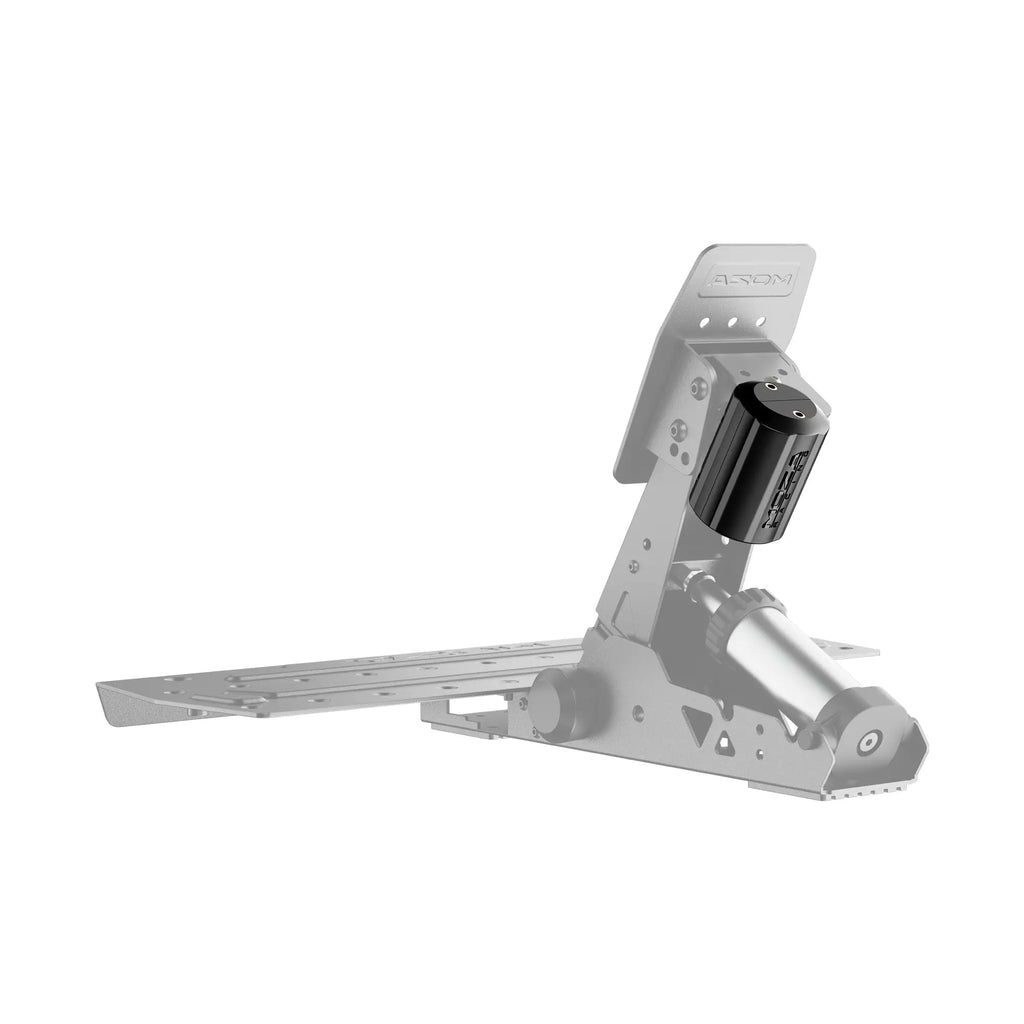

• Compatible with MOZA SR-P Lite, SR-P, SR-P2 and CRP2 pedal sets.
• Configurable through MOZA Pit House.
• The Control Box can connect directly to a PC or through a compatible MOZA wheelbase.

Compatibility and connection

The supplied Control Box supports either a direct PC connection or a connection through a compatible MOZA wheelbase. Do not connect the Control Box to both at the same time. Third-party non-active pedals may also be used through a direct PC connection with a suitable custom mounting solution.

Specifications

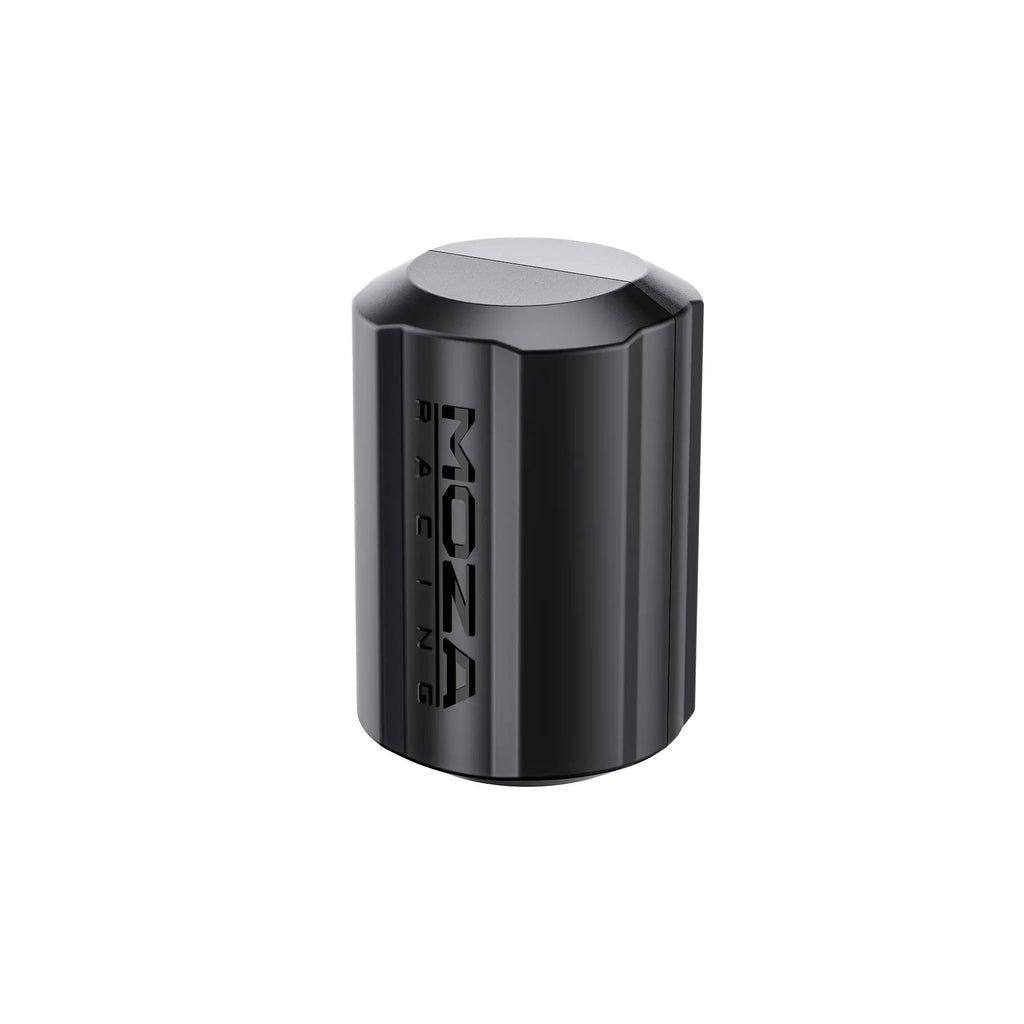

• PHF Module dimensions: 40 × 41 × 61 mm

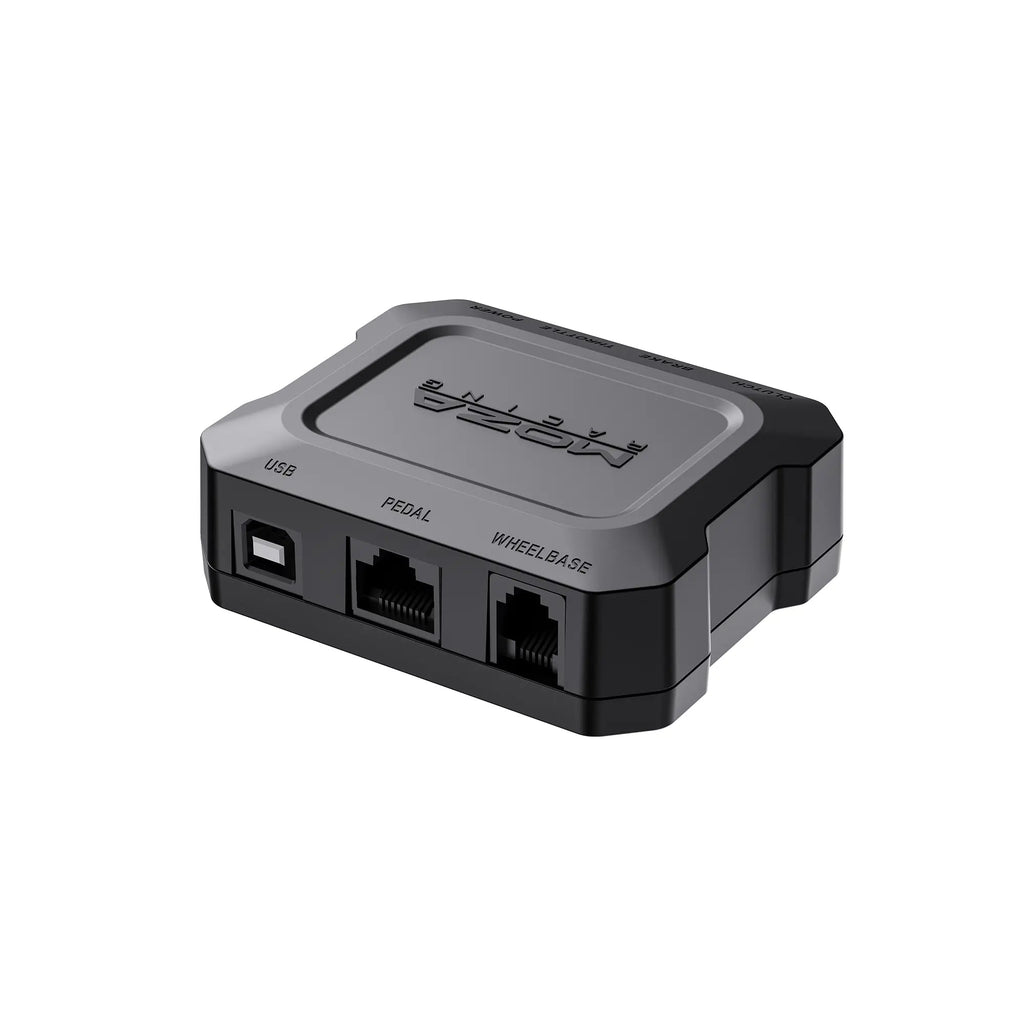

• Control Box dimensions: 80 × 66 × 26 mm
• Power supply: 12 V, 2 A
• Net weight: 98 g
• Warranty: 12 months

What's in the box

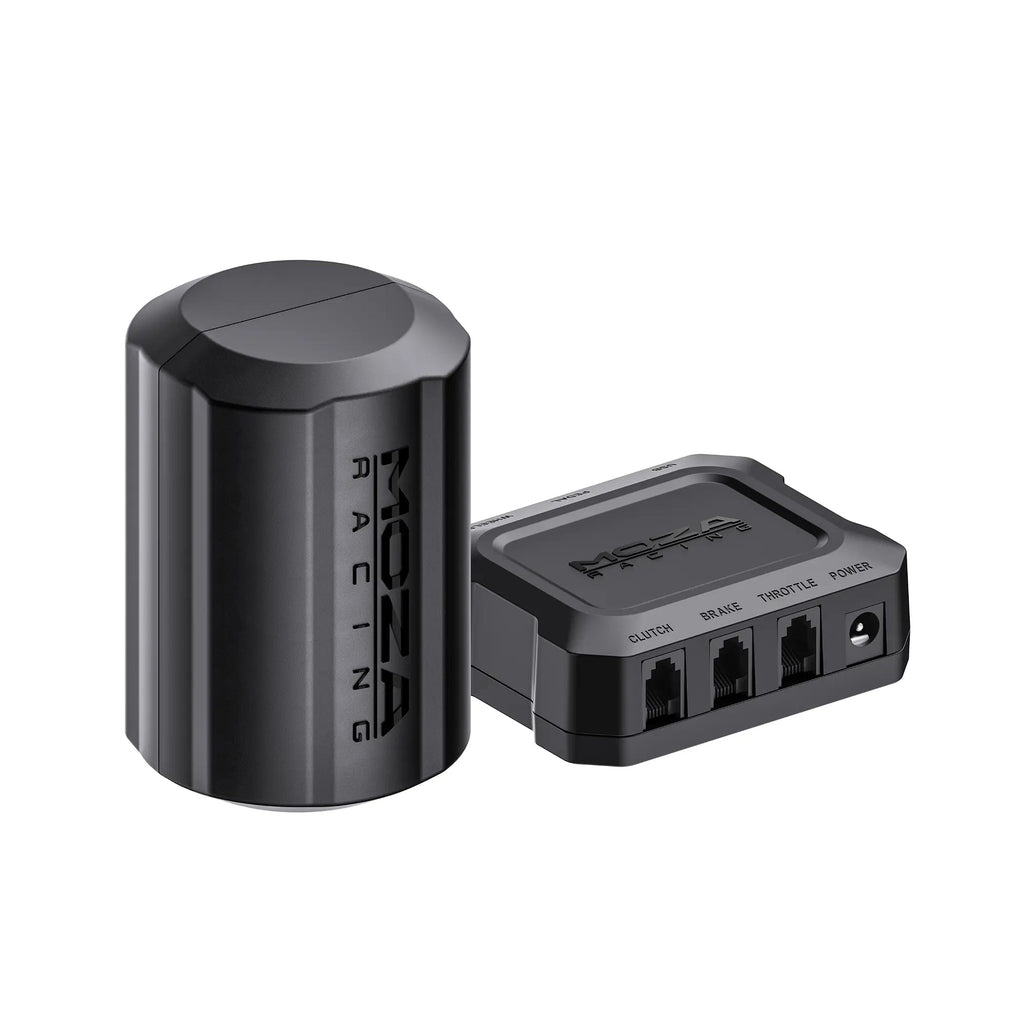

• MOZA PHF Pedal Haptic Feedback Module × 1
• MOZA PHF Control Box × 1
• Power adapter × 1
• USB cable × 1
• RJ11 cable × 1
• RJ45 cable × 1

Product details

MOZA Pedal Haptic Feedback Kit

Bring detailed vehicle feedback directly to your pedals with the MOZA Pedal Haptic Feedback Kit. The kit combines one PHF haptic module with the required Control Box for configurable 0–100 Hz feedback. Key features Customizable 0–100 Hz haptic feedback for effects such as ABS, traction control, engine RPM, wheel lock-up, wheel slip and gear shifts. Compatible with MOZA SR-P Lite, SR-P, SR-P2 and CRP2 pedal sets. Configurable through MOZA Pit House. The Control Box can connect directly to a PC or through a compatible MOZA wheelbase. Compatibility and connection The supplied Control Box supports either a direct PC connection or a connection through a compatible MOZA wheelbase. Do not connect t

Frequently asked questions

Which pedals are compatible with the MOZA Pedal Haptic Feedback Kit?

MOZA lists the SR-P Lite, SR-P, SR-P2 and CRP2 pedal sets as compatible. Third-party non-active pedals can also be used through a direct PC connection when a suitable custom mounting solution is available.

Which feedback effects can the PHF system reproduce?

The PHF system provides customizable 0–100 Hz feedback for effects including ABS, traction control, engine RPM, wheel lock-up, wheel slip and gear shifts.

Is the PHF Control Box included with this kit?

Yes. This kit includes one PHF Pedal Haptic Feedback Module and one PHF Control Box, plus the required power adapter and connection cables.

Can I connect the Control Box to a PC or a MOZA wheelbase?

Yes. The Control Box supports either a direct PC connection or a connection through a compatible MOZA wheelbase. MOZA specifies that it should not be connected to both at the same time.

Which software is used to configure the pedal haptics?

The haptic feedback is configured through MOZA Pit House, where supported effects and feedback behaviour can be adjusted.
