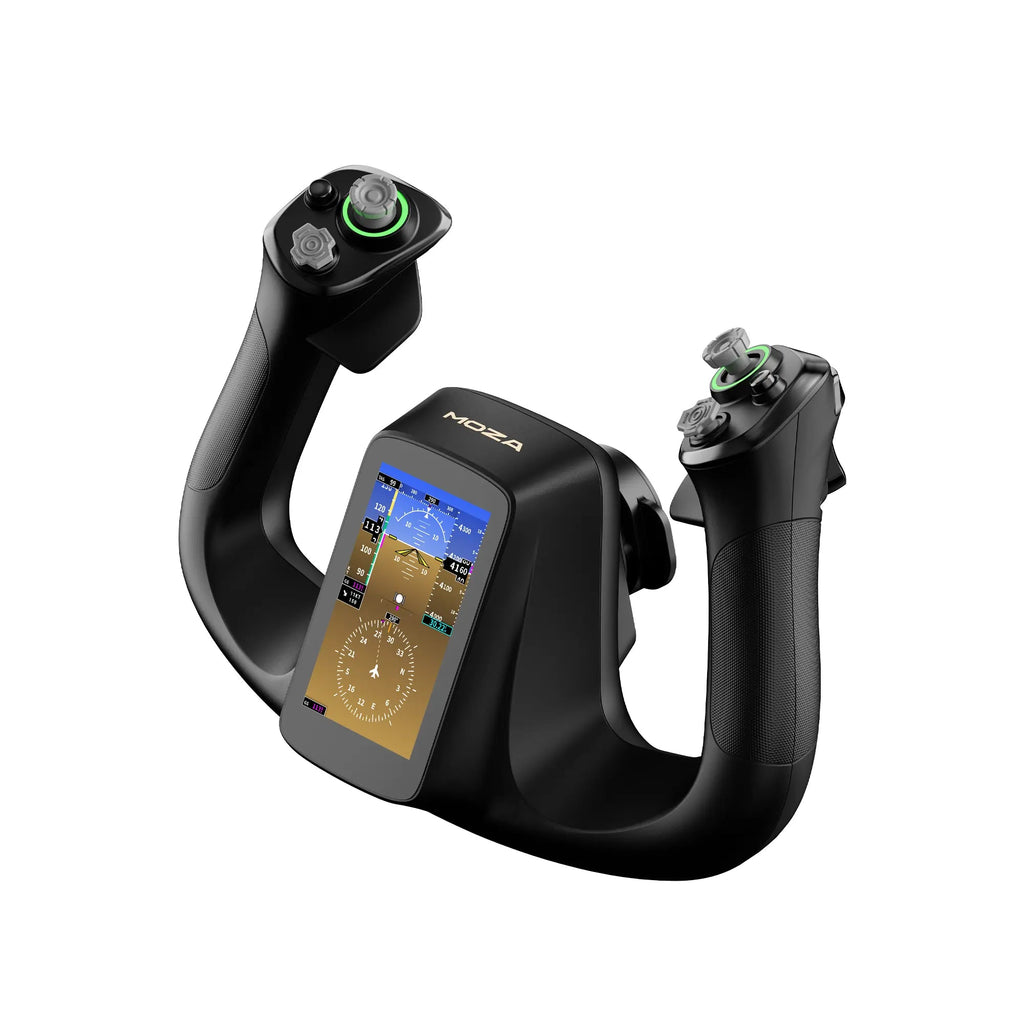

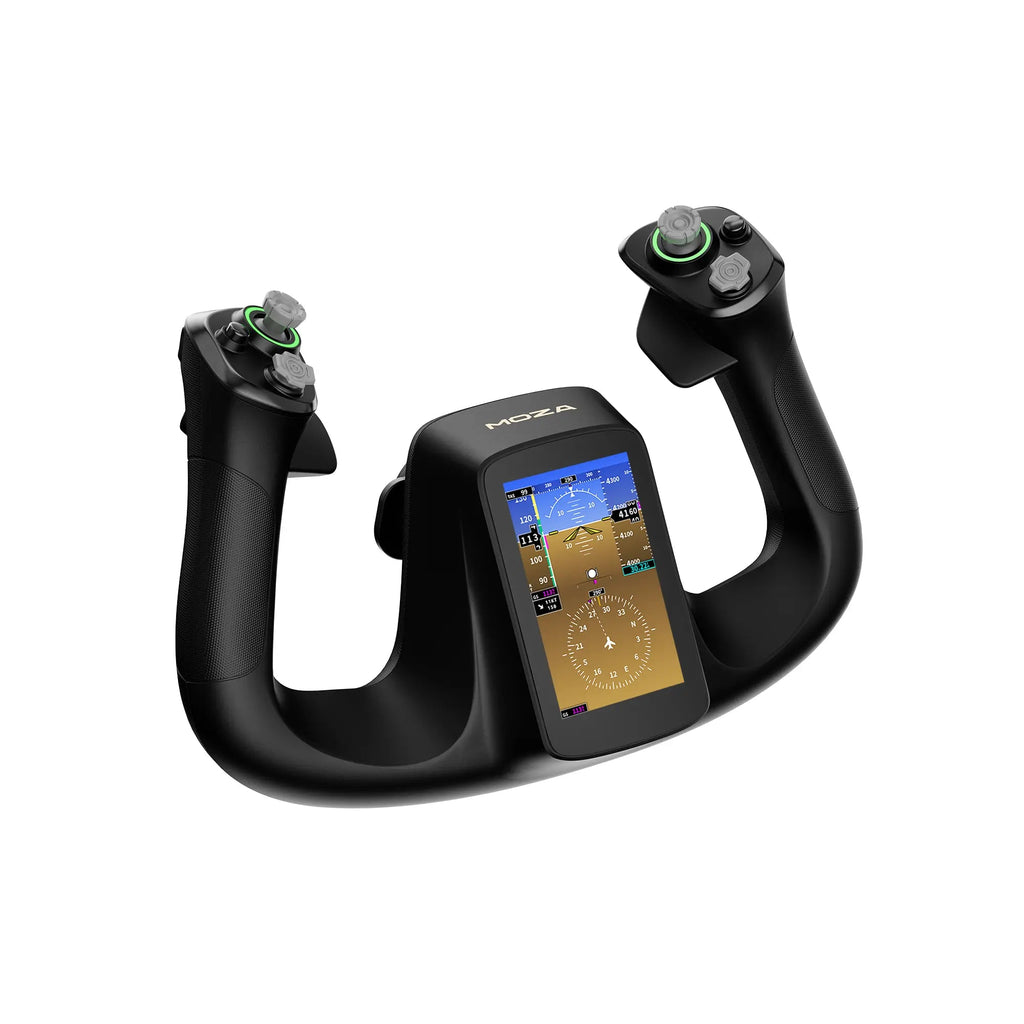

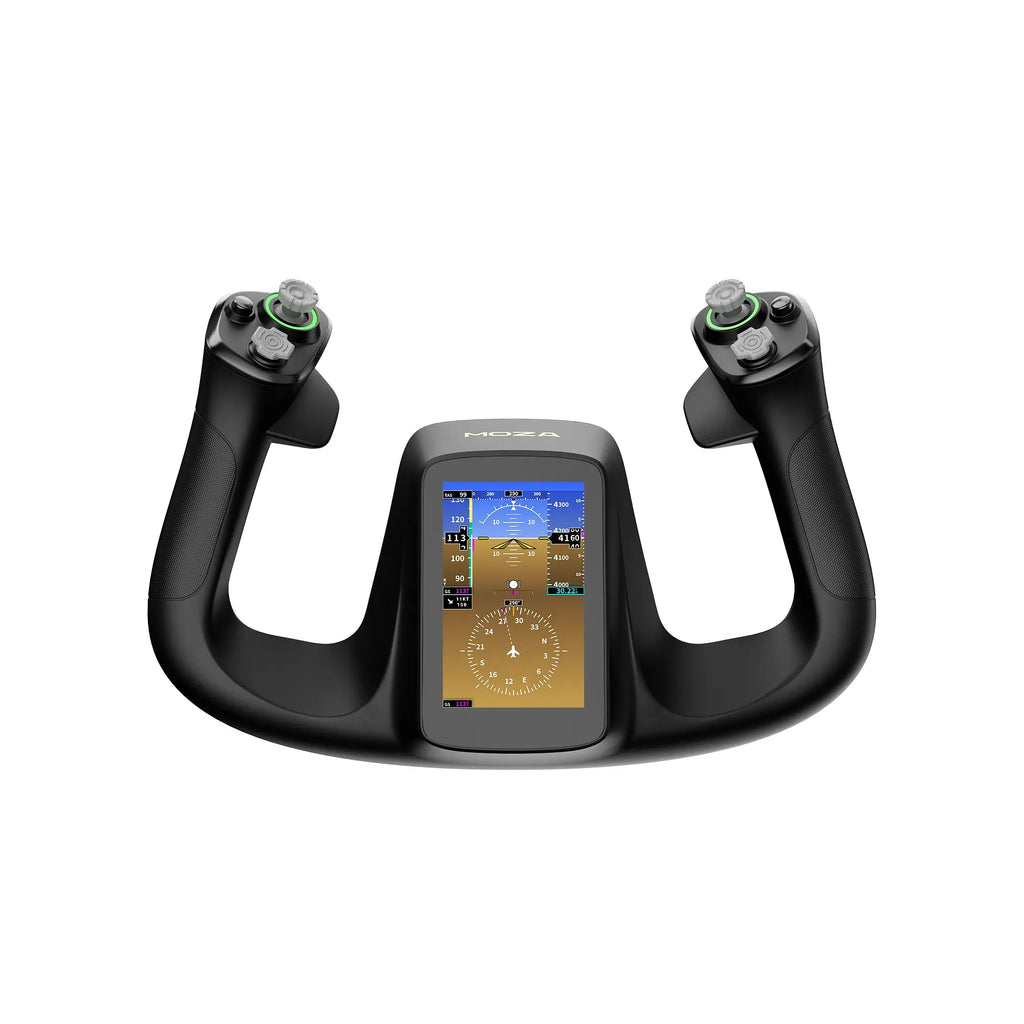

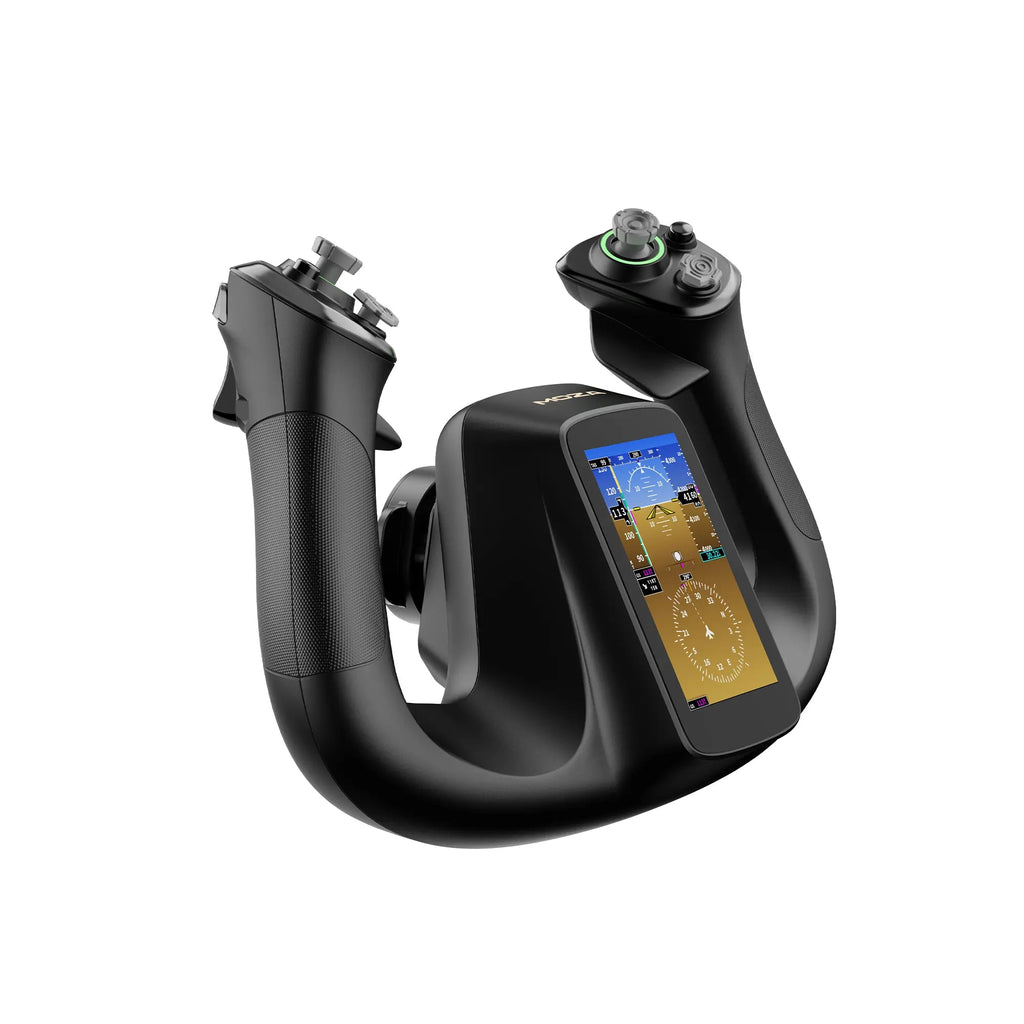

The MOZA MFY Pro Yoke combines physical flight controls with an integrated information display for a compact PC flight-simulation setup. Its reinforced composite housing, aluminium-alloy quick release, Hall-effect thumbsticks and configurable RGB lighting are designed for pilots who want direct access to aircraft functions without relying only on separate panels.
Key features
- The 4.3-inch touchscreen can provide quick access to flight information, checklists, timers and axis monitoring, reducing the need to move attention to another screen.
- Twenty-six programmable outputs, Hall-effect thumbsticks and support for two MOZA force-feedback yoke bases create a flexible control platform for different aircraft profiles.
Product details
Reinforced construction and quick release
The housing uses reinforced composite material, while the quick-release interface is made from aluminium alloy and the button caps are ABS. The yoke measures 142.5 × 202 × 313 mm and has an official product weight of 1.2 kg. The quick release allows the handle to be fitted to a compatible MOZA yoke base without treating the handle and base as one fixed unit.
Touchscreen and programmable controls
The integrated 4.3-inch display has a 480 × 800 resolution. MOZA specifies 26 output signals and a physical layout with two eight-way hat switches, two Hall-effect thumbsticks, two bumpers and two triggers. Buttons, axes, triggers and thumbsticks can be configured for different aircraft and control profiles. The display can be used for supported flight information, checklists, timers and live axis monitoring.
Flight-deck integration
Custom RGB lighting helps the control surface fit into a wider cockpit layout. MOZA officially confirms compatibility with both the MOZA AY90 Force Feedback Yoke Base and the MOZA AY210 Force Feedback Yoke Base. A yoke base is required and is not included with this handle. The MFY Pro can also be combined with other MOZA flight controls, but only exact compatibility confirmed by MOZA should be assumed.
Compatibility
Platform: PC flight-simulation setups using a compatible MOZA yoke base.
Connection and ecosystem: Compatible with the MOZA AY90 and AY210 Force Feedback Yoke Bases through the MOZA quick-release system.
Requirements: A compatible yoke base and supported flight-simulation software are required. The base is not included.
Specifications
Dimensions 142.5 × 202 × 313 mm Product weight 1.2 kg Housing material Reinforced composite Quick-release material Aluminium alloy Button-cap material ABS Display 4.3-inch touchscreen, 480 × 800 Total output signals 26 Eight-way hat switches 2 Hall-effect thumbsticks 2 Bumpers 2 Triggers 2What's in the box?
- MOZA MFY Pro Yoke
Frequently asked questions
Does the MFY Pro include a force-feedback yoke base?
No. This product is the yoke handle; a compatible base is required separately.
Which MOZA bases are officially compatible?
MOZA confirms compatibility with the AY90 and AY210 Force Feedback Yoke Bases.
What can the touchscreen display?
Supported pages can provide flight information, checklists, timers and axis monitoring.
How many programmable outputs are available?
The official specification lists 26 total output signals.
What is the official product weight?
MOZA lists the complete MFY Pro Yoke at 1.2 kg.
