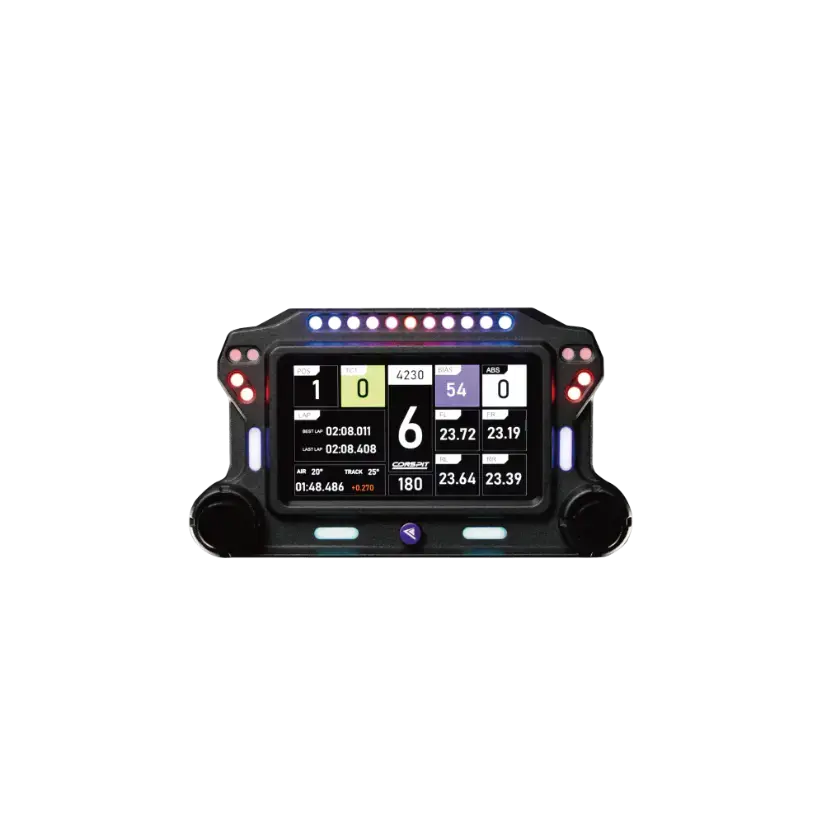

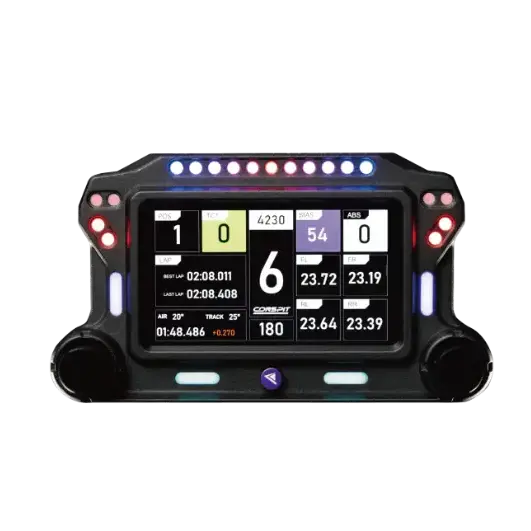

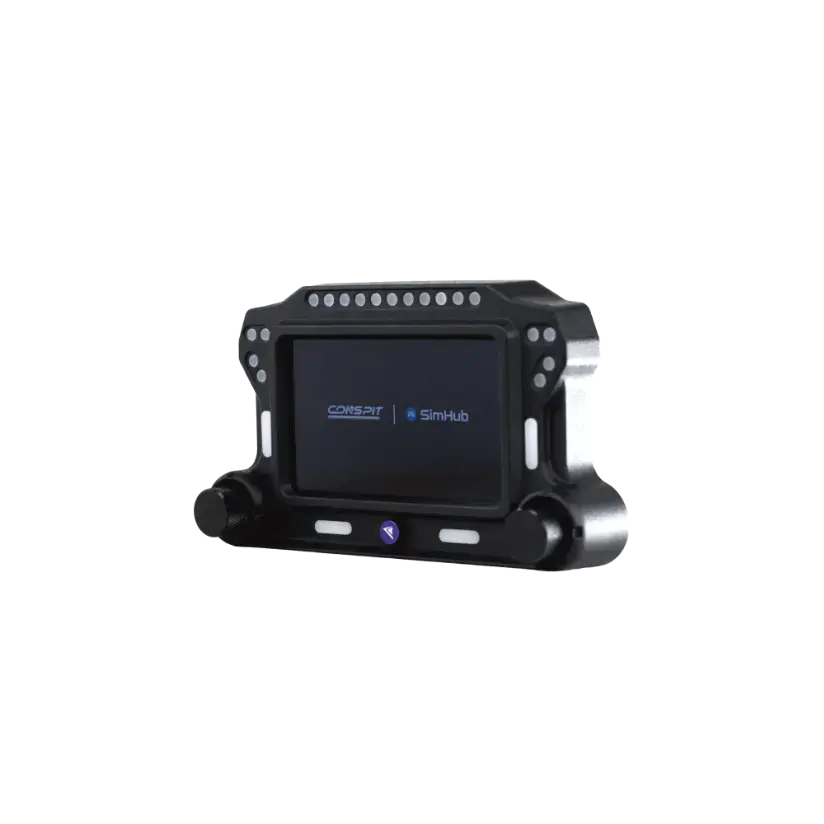

The Conspit CSD Lite Dashboard brings essential race information into the cockpit without relying on a large screen overlay. Its 854 × 480 IPS touchscreen combines 31 configurable RGB LEDs, two rotary encoders and direct USB connectivity in a slim aluminium housing. Choose SimHub dash pages, tailor the LED zones and keep telemetry where you can read it at a glance.
Why choose the Conspit CSD Lite?
- Read telemetry on a sharp 5-inch IPS touchscreen with 854 × 480 resolution.
- Assign RPM, flags and status alerts to 31 RGB LEDs across four zones.
- Navigate pages with two encoders or touch gestures, including two-finger zoom.
- Connect directly to a PC by USB and use SimHub dashboards and effects.
Product details
Race data at a glance
The 5-inch screen runs at 45 fps and supports adjustable brightness. Use SimHub dashboards to show the information that matters to your session, from lap and fuel data to vehicle status and nearby traffic. Conspit also offers dedicated dashboard pages for its display.
Indicators you can tailor
Thirty-one RGB LEDs form four segmented zones around the screen. Configure shift lights, flags and alerts, or start with the included LED profile offering more than 20 preset modes. The two encoders and touchscreen make page navigation and adjustments accessible from the driving position.
Flexible cockpit installation

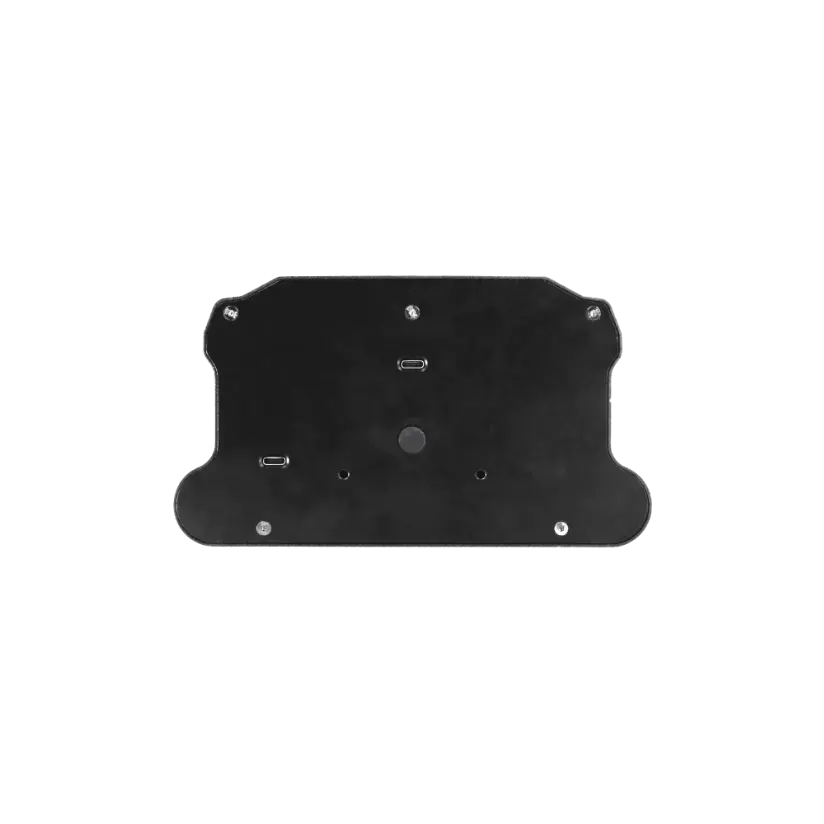

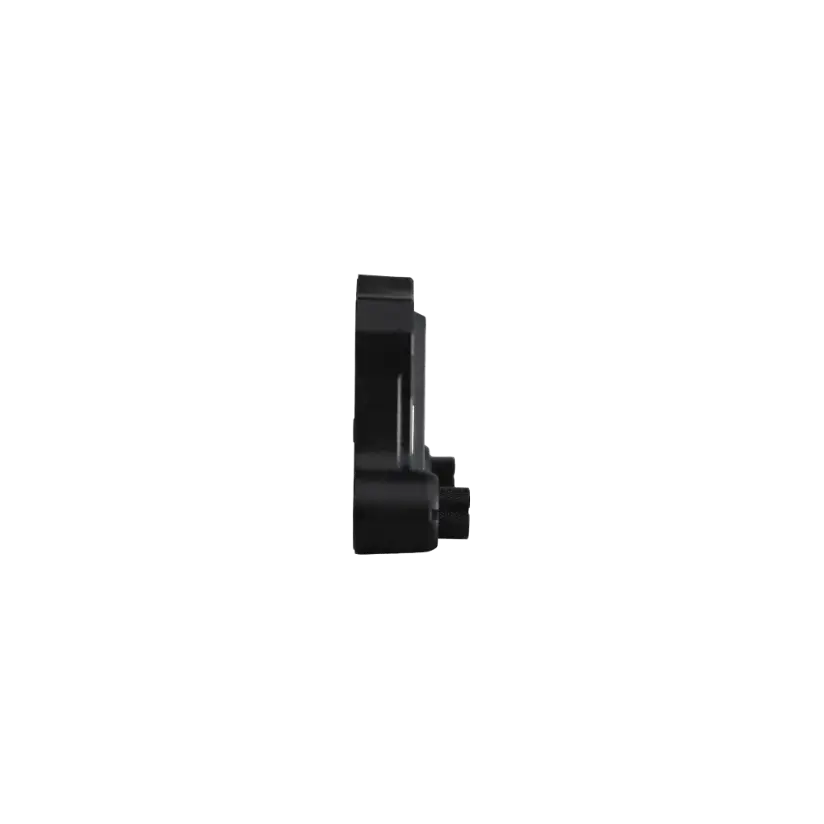

The sandblasted, anodised aluminium alloy shell has two rear data ports to simplify cable routing. Rear 1/4-inch and M4 mounting points allow compatible brackets for a wheelbase or aluminium-profile rig. Pair it with a Conspit Ares 12 Nm wheelbase or browse the larger Conspit CSD SimHub Dashboard if you prefer four physical encoders.
Compatibility
Platform: Windows PC sim racing setups.
Connection and ecosystem: USB direct connection; SimHub dashboard and LED support.
Requirements: A suitable mounting bracket for your wheelbase or rig may be required depending on your setup.
Specifications
Model / MPN Conspit CSD Lite / CP136 Display 5-inch IPS touchscreen Resolution 854 × 480 pixels Frame rate 45 fps Brightness 350 cd/m², adjustable Indicators 31 RGB LEDs in four zones Controls 2 rotary encoders; multi-touch with two-finger zoom Housing Aluminium alloy, anodised finish Dimensions 191 × 107 × 43 mm Mounting Rear 1/4-inch and M4 threaded holes Connection USB-C cable; dual rear data ports Platform / software PC / SimHubWhat's in the box?
- Conspit CSD Lite Dashboard
- USB Type-C cable
Frequently asked questions
Is the CSD Lite the same as the original CSD?
No. This is the CSD Lite with two physical encoders. The original Conspit CSD Dashboard has four encoders.
Can I use the own SimHub dashboard pages?
Yes. The CSD Lite supports SimHub dash pages and Conspit's downloadable pages, plus configurable LED effects.
Does it need a Conspit wheelbase?
No. It connects directly to a PC by USB. Choose a bracket that fits your rig or wheelbase.
Will it work with my setup?
Check the supported platform, connections, mounting dimensions and included items for this exact product. Use our compatibility checklist before combining components. Not sure? Send us your current hardware and the product you are considering.
